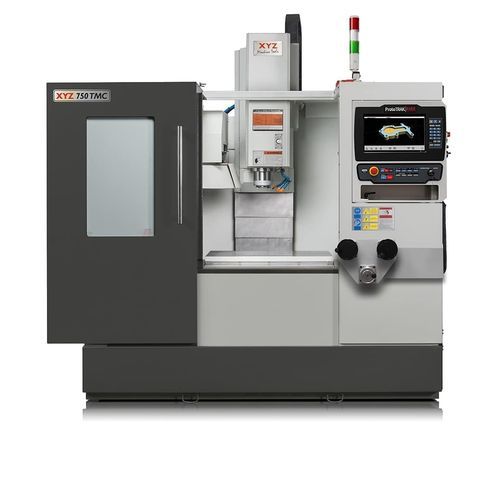

3-axis CNC machining center XYZ 750 TMC

verticalwith rotary tableBT 40

The use of linear rails on machining centres has been common for many years, as they allow users to take advantage of improvements in digital motion control and modern cutting tool performance, therefore maximising their competitiveness. The XYZ 750 TMC is a mid-sized machining centre with the versatility to satisfy both manufacturers from one off/small batch parts to full production runs. Using proven linear rail technology offering travels of 750 x 440 x 500 mm combined with an 8,000 rpm spindle, 20 station toolchanger and the latest ProtoTRAK® RMX control. The XYZ 750 TMC gives users the opportunity to manufacture one off’s traditionally produced on manual machines using the handwheels located at the front of the machine or step straight into full production by creating programs for the ProtoTRAK® CNC on board or offline. A truly flexible solution for today’s manufacturing needs. Standard Equipment ProtoTRAK® touchscreen RMX control. Optimised digital servo drives. Remote electronic hand wheel. Flood coolant. Worklight. Easy clean swarf tray. Steel concertina guards on all axis. Powder coated guarding. Pull studs. USB ports. Ethernet. Optional Equipment Swarf Conveyor and bin. 12,000 rpm spindle. Through spindle coolant. Movable electronic hand wheels for setting, manual operation and TRAKing®. Side vision panels. Offline RMX programming. DXF convertor. Parasolid convertor. Coolant washdown gun. Remote stop go switch. Advanced features. MT connect.
