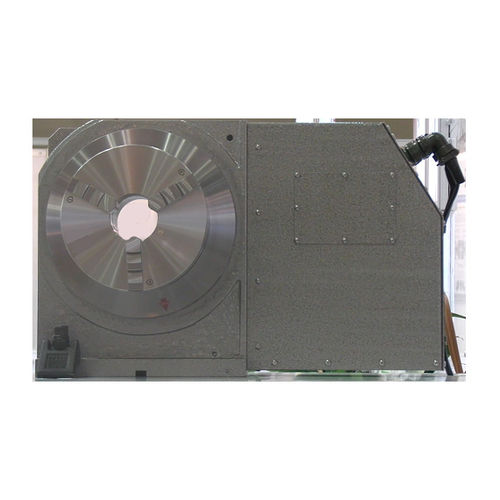

Motor-driven rotary table SN series

for machine toolsCNC

SN Series Description With SERVOCAMDRIVEⓇ adopted, CNC SN series products are CNC Rotary tables that have been developed to satisfy the recent demands of "faster, more accurate and easier device" from machine tool manufacturers and machine tool operators. Equipped with our zero-backlash reducer SERVOCAMDRIVEⓇ, it provides conforming output operation, and keeps its position firmly without any run-out despite external impacts or forces while gear type or torque motor type rotary tables are not likely do. Its accuracy and rigidity obtained by zero-backlash technique that achieves high accurate positioning with the rotational accuracy less than 10 arc.sec. SN series can respond the heavy cutting works of carbon steel. Features 1. Various sizes available 5 models line up with table diameters of 170, 200, 250, 315, and 400mm 2.Large hollow Face table with large hollow 3. High Accuracy Rotational accuracy ≤10 sec., repeatability ≤4 sec. 4. No Clamp necessary (optional) With no backlash with preloaded mechanism, no pneumatic or hydraulic clamping required. 5. High Water-resistance With built-in standard auto air-purge, high water resistance guaranteed when operating.
