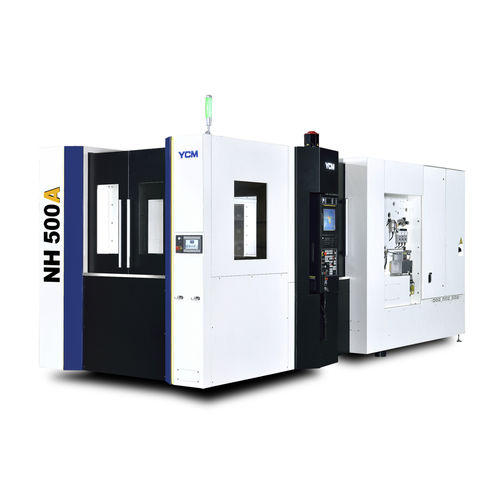

3-axis CNC machining center NH500A

horizontaldouble-columnwith rotary table

One piece T-type base structure with rib construction for unprecedented rigidity. Adopted FEM analysis for lightweight design to improve G value that can prolong ballscrew life and reduce energy consumption. Stepped Design on X-axis Two X-axis guideways are positioned at different height to increase stable and reliable rapid axial movement. All Roller Type Guideways XYZ axes are equipped with roller guideways to increase rigidity and accuracy. High dynamic AC servo driven pre-tensioned ball screws, delivering high control qualities. Powerful IDD Spindle The standard IDD spindle design, easy for maintenance 15,000 rpm max. spindle speed with 37 kW output delivers 244 Nm torque. The powerful spindle utilizes high precision ceramic ball bearings. The spindle oil cooling system effectively minimizes thermal deformation. High Performance Built-in Motorized Spindle (opt.) Micro oil-air lubrication for angular ceramic ball bearings prolongs spindle life. Circulated oil jacket cooling system minimize thermal deformation, ensuring high accuracy. Easy spindle unit replacement reduces maintenance time.
