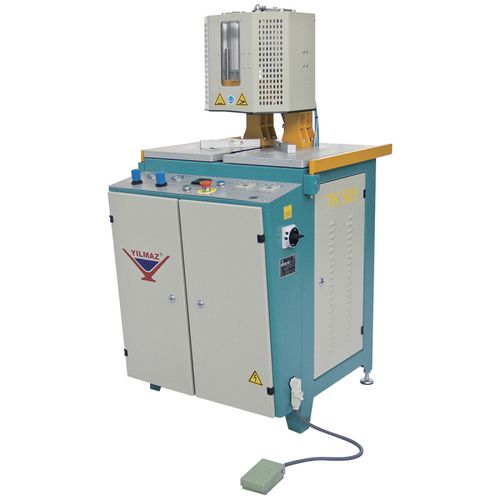

Hot plate welding machine TK 505

semi-automaticfor PVCwith foot pedal

Product overview
This machine is designed for single-corner welding of PVC profiles with an adjustable angle range from 30° to 180°. It supports profile heights up to 180 mm and allows manual selection between standard (2.0 mm) and seamless (0.2 mm) welding options.

General features

• Infinitely adjustable welding angles between 30° and 180°
• Manual selection of welding seam option: standard 2.0 mm or seamless 0.2 mm
• Maximum welding height (H): 180 mm
• Independent setting of melting time, welding time and welding pressure
• Automatic start and end of the welding cycle
• Temperature control 0–300°C via electronic thermocouple
• Profile support arms supplied as standard in both directions to handle long profiles
• Separate clamping of profiles via electrical foot pedal
• Easy cleaning of plates and quick Teflon replacement for fast maintenance
• Quick mold change feature to reduce setup time

Standard accessories

• Profile support arms (both directions)
• Electrical foot pedal

Optional accessories

• Special welding molds

Technical specifications

• Model: TK 505
• Application: Single-corner welding of PVC profiles
• Welding angle range: 30°–180°, infinitely adjustable
• Maximum welding height (H): 180 mm
• Welding options: standard 2.0 mm or seamless 0.2 mm (manual)
• Independent control: melting time, welding time, welding pressure
• Automatic welding cycle start/finish
• Temperature range: 0–300°C (electronic thermocouple)
• Standard equipment: profile support arms (both directions), electrical foot pedal
• Maintenance: easy plate cleaning and quick Teflon replacement
• Productivity: practical quick mold change
