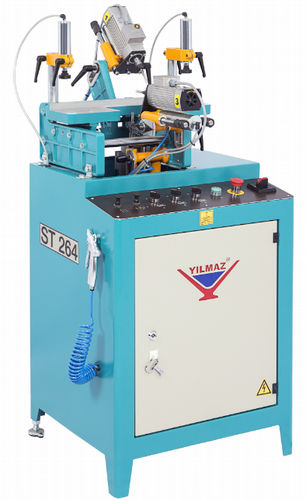

Slot milling machine ST 264

3-axis2-axisswiveling-spindle

It is an ideal milling machine used to open water drain channels on PVC profiles in two or three axes, at different angles and heights STANDART ACCESORIES Service keys Equipped with milling cutters Air gun OPTIONAL ACCESSORIES Sparel cutter bits ø5xL80 mm Sparel cutter bits ø5xL60 mm GENERAL FEATURES Water slot opening process on PVC profiles is completed pneumatically Driller motors work separately in tree axis or two motors positioned in different axis work at the same time Practical adjustment of water slot length and depth by means of the stoppers Speed-adjustable pneumatically controlled motor movement 2 x pneumatic clamps ensure precise machining of the profile Drilling starts automatically with the push of a button Axis misalignments in profiles are adjusted pneumatically with the movable table Motor selection through the switches PLC control system Maximum profile dimension: H115 x W100 mm
