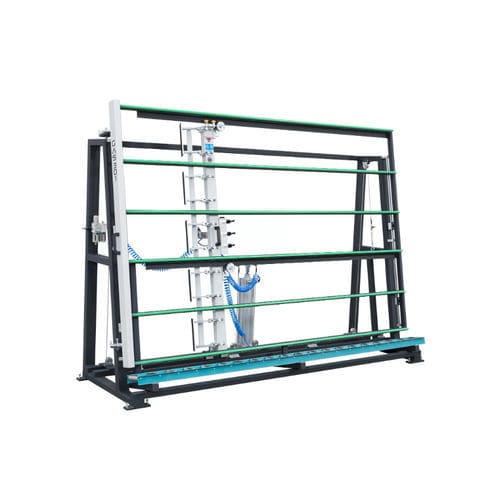

It is used to attach glass to doors and windows in series.
It is designed for the fast installation of glass on the windows and doors
Glazed joinery transferring to package on rollers
Parallel block clamps allow you to set an appropriate balance
Raising the workpiece 500 mm up for easier installation
Max. / Min. Frame Mounting Dimensions: 2700 / 300 mm
The angle of upper surface of the table is at 70° in order to carry out the mounting of the glasses easy
Width (W) x Length (L) x Height (H): 900 x 3050 x 2400 mm
Loading capacity: 350 kg
