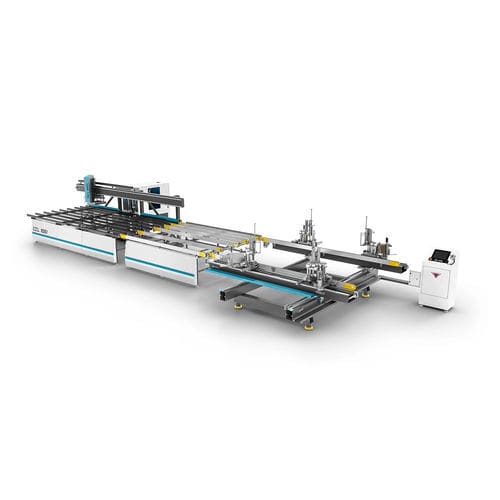

Corner welding and cleaning line CCL 1661

CNCfor PVC profilesindustrial

CNC controlled four corner PVC welding and cleaning line that provides movement in 2 and 4 axes. After welding process at DK 540, the frame goes to the Cooling Unit (SA 251) automatically. Then the Robot Unit (SA 261) automatically takes the frames from the Cooling Unit (SA 251) where the cleaning process starts and carries it by turning to the CNC 609 or 611 Cleaning Machine STANDART ACCESORIES • DK 540 Four Head Welding Machine • SA 251 Coolin Unit • SA 261 Robot Mechanism • CNC 609 or CNC 611Cleaning Machine OPTIONAL ACCESSORIES • SA 255 Window buffer station • CS 240 Gasket pressing system • DK 540 Welding fixture set for lame sash • DK 540 Welding fixture set GENERAL FEATURES • Yılmaz custom profiles cleaning program • Manuel and automatic operating modes • Automatic sash and frame profile recognition system • Profile width and height measurement system • 11 set of automatic profile cleaning knives • Separate cleaning knives for color and white profiles • Automatic central lubrication system • Window based touch screen • Profile program transfer via USB flash memory • Remote connection and technical support capability • Movable control panel • Speed change during the process • 220 frames / 8 hours (609 CNC) and 270 frames / 8 hours (CNC 611) machining capacity • Visible of screen alarms and warnings • Phase control system Low pressure control system • Ability of cleaning all four corners and end-of line transfer with automatic profile rotation robot system • Automatic system allowing movement in 2 or 4 axes
