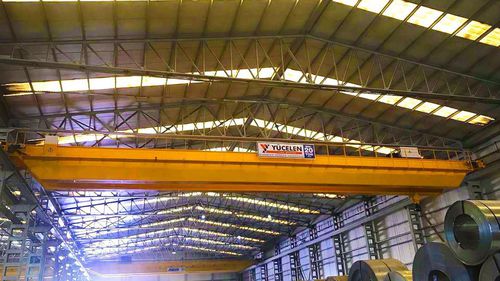

Double-girder overhead crane

Double-girder overhead crane - Yücelen Vinc Makine
Double-girder overhead crane - Yücelen Vinc Makine
Double-girder overhead crane - Yücelen Vinc Makine - image - 2
Add to favorites
Compare this product

Characteristics

Type
double-girder
Load

Min.: 1 t
(1.1 us ton)

Max.: 250 t
(275.6 us ton)

Span

5.5 m
(18'00" )

Description

Yucelen Double Girder Overhead Cranes; are produced in accordance with DIN norms, FEM standarts and with a deflection rate at most 1/1000 ratio in the construction part. Cranes are produced from 1.000 Kg to 200.000 Kg Manufactured by dual(forward-backward) movement with polar change and Speed controlled product details and alternatives; - Hoisting, Lowering, Moving, Limit switch - Maintenance Platform - Independent control hanging from the trolley or Remote Control preferred control - Main power source “IPN”, “Cornice”, “Closed Busbar”, “Open Busbar” based on preference and environment - On-Bridge power source “IPN”, “Cornice”, “Closed Busbar”, “Open Busbar” based on preference and environment - Collision avoidance Sensor - Aural and Flashing Warning - Slipring Application - Over load warning application with indicative or non-indicative - Synchronice systems….
