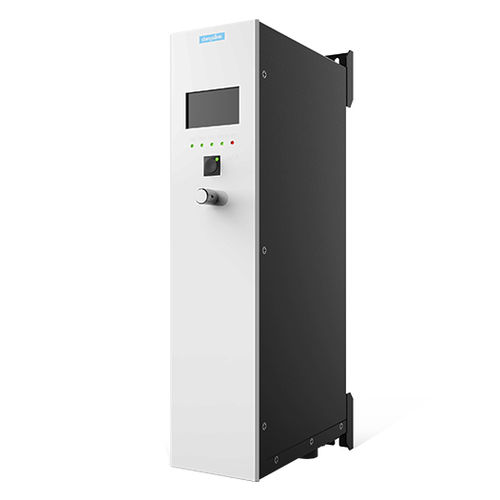

The TC series generator is an ultrasonic generator that has been developed by Clangsonic Company for more than ten years and is positioned in the field of high-end industrial cleaning. This generator is developed with the new technology and with full-bridge phase shift, constant power output, automatic frequency chasing and automatic impedance change. It can further improve the adaptability and stability of the generator for different working conditions.
The generator frequency: 20~130Khz, the maximum power can reach: 2000W, can be connected to the cleaning tank separately or matched to the large-scale cleaning system, which can provide fast, uniform and high-quality cleaning effect in either way.
Adopt IGBT full-bridge phase shifting technology to support 10~100% stepless power adjustment;
Automatic constant power output according to load changes;
Automatic frequency chasing and impedance change technology to ensure that the generator works at the optimal frequency point;
Using 2 times peak power technology, it has better cleaning effect on stubborn stains and semi-aqueous solvents;
The frequency scanning function can effectively eliminate standing waves and improve the ultrasonic distribution of the cleaning tank;
Conversion efficiency is over 95%;
LCD local display, support parameter setting and status monitoring;
Internal overcurrent, overvoltage, short circuit protection;
Support remote control, can be connected to PLC, HMI and other industrial control equipment;
Support RS485 MODBUS RTU communication;
Support for 19-inch cabinet installation.
