Hangar door

slidingsteelgalvanized steel

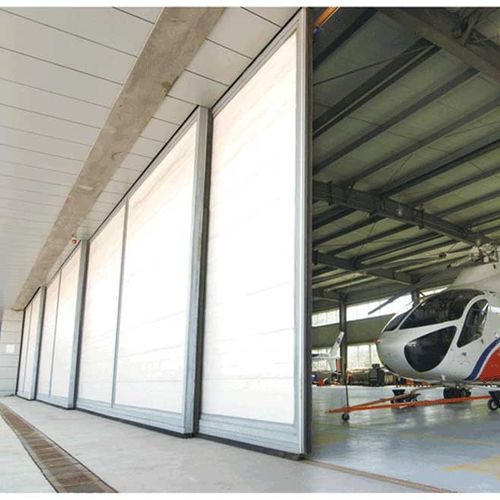

Sliding Hangar Door Sliding hangar Door is specially designed for hangars of civil or military airports and aircraft factories. It can horizontally move between the top and bottom tracks. There are single, double and multi panels, which can be installed indoor or outdoor according to the actual surroundings. Hangar Door has various forms, specifications and panels. Product Description Technical Data: Applicable door opening: W100m*H22m Reserved size on the upper edge of the hole: ≥1000 Reserved size on the side of the hole: ≥door leaf width+500 Working voltage frequency: 380V/50HZ Motor Power: n×1.5-3W（n is the number of the door leafs） Running speed: ~0.17m/s Door thickness: 200-530 Adapt to temperature: -40°C~50°C Wind pressure resistance: 650N/m² Sound insulation: 23db K: K≤0.8W.m².K 1.The door leaf is made of steel frame.Hot-dip galvanized steel tubes,rust-proof.Both full welding and bolt joints to realize high-strength. 4.Surface cladding.The panel adopts Baosteel's pressure-type color plate, fluorine-free environment-friendly polyurethane foam board and polycarbonate sun board for users to choose. 3.The guide rail.Heavy channel steel and the train tracks. 5.Motor and controler.Brake gear motor,Germany SEW or Siemens brand.The door opener adopts electromechanical integration device and adopts PLC frequency conversion control. 6.The travel limit uses photoelectric sensing without contact limit. 7.There are sound and light alarm warnings during the opening process. Infrared detection is blocked when it is blocked. In case of power failure, it can be switched to manual open state.
