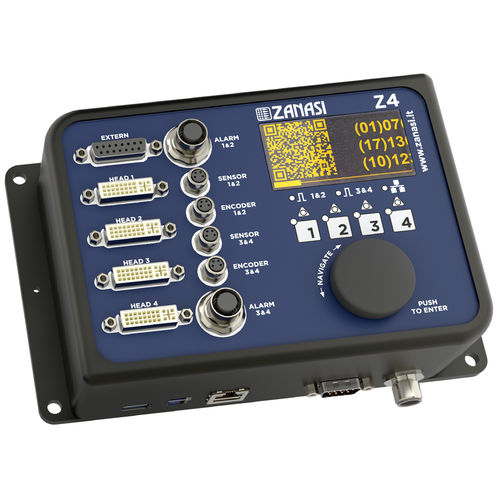

Thermal inkjet printer Z4

for integrationindustrial

Z4 is the ideal TIJ (Thermal Ink Jet) solution for a precise and clean industrial coding, at very high resolution and speed, of alphanumeric texts, logos and 2D and QR barcodes on primary, secondary and multiple packaging, with porous and particularly nonporous surfaces such as paper, cardboard, aluminium, flexible film, plastic and coated cases, labels and many more. It is also available with Bulk Ink Delivery System (BIDS) for high-consumption applications. Z4 is versatile: its modular structure allows to combine individual multi-cartridge TJET printheads in different positions and configurations to create a flexible and personal system, suited to the specific marking needs. It can drive and manage up to 4 TJET printheads, reaching a printing height of 50,8 mm (2″), to mark packaging on one or both sides of one or two independent production lines. It guarantees a very high-quality coding, with resolution up to 900 Dpi horizontal/ 600 Dpi vertical, and a maximum printing speed of 180 mt/min. TJET printheads can be placed at a distance of up to 4 mm from the product and are available in the following versions: • TJET12 single cartridge, with printing height up to 12,7 mm (0,5″) • TJET25 double cartridge, with printing height up to 25,4 mm (1″) • TJET37 triple cartridge, with printing height up to 38,1 mm (1,5″) • TJET50 quadruple cartridge, with printing height up to 50,8 mm (2″) The light and resistant aluminium structure, with reduced dimensions and equipped with sensor for product detection, guarantees an easy integration into different types of equipment and the maximum flexibility for a side, tilted and top-down printing, with text orientation in all directions.
