Inkjet marking system Z640PLUS e-JET

automaticfor cardboard boxesfor continuous production lines

Product overview

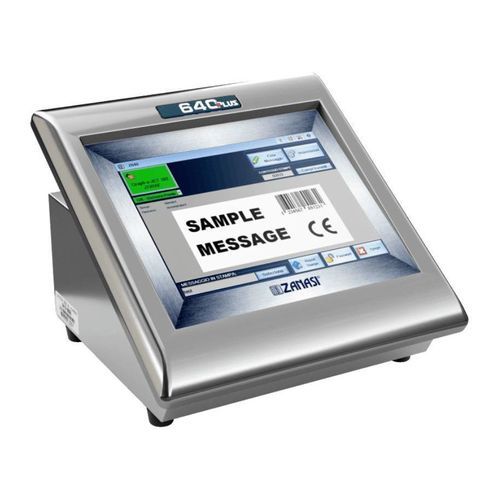

The Z640PLUS e-JET is a high-resolution inkjet marking system for real-time printing and customization of secondary packaging, multipacks and primary products. The solution comprises a standalone AISI 304 stainless-steel console with an industrial computer and a 12.1" colour touch screen running Windows® 10 IoT Enterprise. It supports Graph e-JET piezoelectric printheads and high-contrast inks for sharp text, barcodes and graphics.

Key system features

• Management of up to 2 Graph e-JET printheads
• Print working ranges available up to 50 mm (2") or 102 mm (4") to suit different printing areas
• Ability to mark one or both sides and to operate on one or two independent production lines
• Industrial computer console: configurable, user-friendly colour touch screen interface

Printhead technology
The Graph e-JET printheads use advanced piezoelectric technology with a stainless-steel, inspectable and repairable nozzle plate for extended service life (average life up to 10 years under normal operating cycles). They deliver high-definition alphanumeric text, logos and GS1-compliant barcodes for traceability.

Benefits

• Certified coding and traceability: prints complex GS1-compliant barcodes that remain legible throughout the supply chain
• Durable printhead: stainless-steel nozzle plate, inspectable and serviceable for long life
• High flexibility: multiple configurations, various positions and orientations, top-to-bottom and side printing
• Remote assistance: integrated TeamViewer for secure remote support and diagnostics
• Industry 4.0 ready: multiple connectivity options and Windows® 10 IoT Enterprise for system integration
• Cost reduction: reduces label use and packaging stock, offers real-time print cost calculation and low maintenance via self-cleaning printhead

Applications
The system supports a broad range of high-contrast, fast-drying and high-adhesion inks to meet traceability and communication needs across sectors such as food, beverage, home & personal care, cosmetics and chemicals.

Caractéristiques / spécifications techniques

• Management of up to 2 printheads
• Print height up to 102 mm (4")
• High-definition printing up to 600 DPI
• Prints GS1-compliant barcodes, logos and texts
• Message storage: 50 GB available memory
• Side and downward printing
• IP54 - AISI 304 stainless steel console structure
• 12.1" colour touch screen display
• Ethernet LAN, RS232 serial and USB communication
