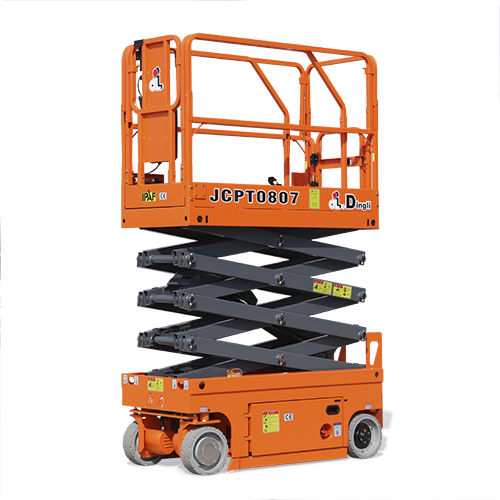

Main spec.
● Working height:7.80m
● S.W.L:230kg
Important features
● battery drive,lower noise,non-pollution,suitable for all kinds of working environment
●Pothole device More secure and reliable
● unidirection extended platform and can reach work position quickly
● automatic display of falut code for easy maintanence
Size
Working Height A 7.80m
Platform Floor Height B 5.80m
Overall Length C 1.86m
Overall Width D 0.76m
Overall Height(Rails up) 2.15m
Overall Height(Rails down) E 1.83m
Platform Size(Length/Width F) 1.67m×0.74m
Platform Extension Size G 0.90m
Ground Clearance(Stowed) 0.072m
Ground Clearance(Raised) 0.016m
Wheel Base 1.36m
Performance
S.W.L 230kg
S.W.L On Extension 113kg
Maximum Workers Number 2
Turning Radius(Inside) 0m
Turning Radius(Outside) 1.64m
Travel Speed(Stowed) 4.5km/h
Travel Speed(Raised) 0.8km/h
Up/Down Speed 27/22sec
Gradeability 25%
Maximum Working Slope 2°/3°
Tyre Ф305×100mm
Power
Lifting Motor 24V/2kW
Drive Motors 24V/0.5kW
Betteries 4×6V/210Ah
Integrated Charger 24V/25A
