relative pressure transmitter / silicon / analog / stainless steel
T3000M

Add to MyDirectIndustry favorites
Compare this product
relative pressure transmitter / silicon / analog / stainless steel relative pressure transmitter / silicon / analog / stainless steel - T3000M
{{requestButtons}}

Characteristics

  • Pressure type:

    relative

  • Technology:

    silicon

  • Output signal:

    analog

  • Other characteristics:

    stainless steel, compact, CE, programmable

  • Process temperature:

    Min.: -40 °C (-40 °F)

    Max.: 85 °C (185 °F)

  • Pressure range:

    Min.: 0 bar (0 psi)

    Max.: 19.6 bar (284.27 psi)

Description

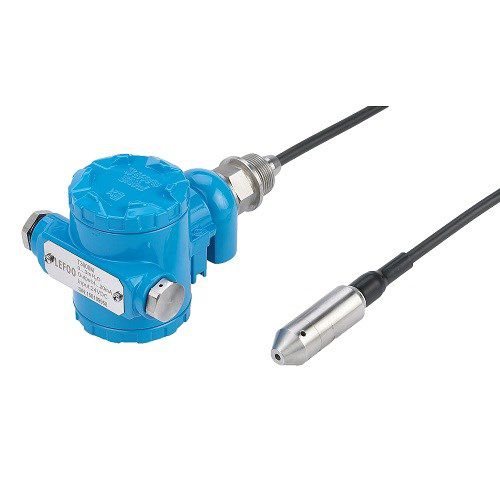

T3000M pressure transmitter is a separate type liquid level transmitter with high reliability, stability, accuracy, and compact size. It is widely used for level measurement of liquid in small diameter pipe and liquid storage tank, such as water, oil, and lightly corrosive liquid. With 1Cr18Ni9Ti stainless steel housing, diffused silicon, amplifying and VI transmitter conversion circuit, it is convenient for calibration for zero point and full range and external programmable control of zero and measurement range. According to different application, it can be equipped with dedicated ventilating cable which is wear resistant, oil resistant, anti acid and alkali and with high strength.T3000M is intrinsic safety, explosion proof and CE certificated. It is with non polar two wire current output and three wire DC or AC voltage output.
