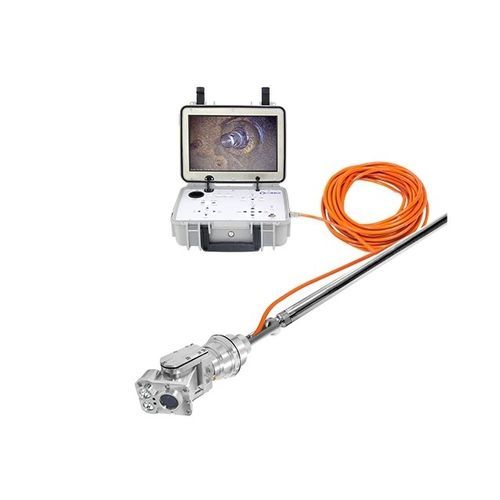

Pipeline periscope is mainly used for quick view inspecting and diagnosis of internal conditions of industrial container,tank or pipeline.
It can record and save internal image of tested object during the inspectiong, while it can catch the saved defect images rapidly, support edit the working conditionby keyboard, transimttate the photo and video in real time.
Range :80mm-1200mm
• 10 inch color controller.Cold LED, adjustable brightness.
• 10 times zoom,automatic focusing.
• Strong corrosion resistance, Convenient to assembly and dis-assembly,easy to carry .
• Axial 360°rotate endless,radial 180°reversal,no dead-angle.
• Lasermeasurement.
• Self contained power supply, no need AC, inspect at any time.
• HD,wide viewing-angle,zoom and focusing camera.
• Splash-proof design,IP 66.Lens can matched with protection cover, thus can Increase working life, protect lens from abrasion.(custom made waterproof IP68).
• Push rod flexible .The equipment is portable,easy to carry.

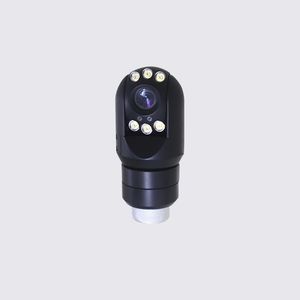

• Camera Type : CCD
• Horizontal resolution : 2 megapixel
• Camera lens Diameter : 75mm/105mm
• Rotate Model : 360° Infinite rotating,220°flip
• Zoom : 10 times optical,10times electronic
• LED Lights : 6 LEDS
• Screen Size : 10inch color screen
