Absolute pressure sensor WPAK64

siliconfor non-aggressive gasesfor liquids

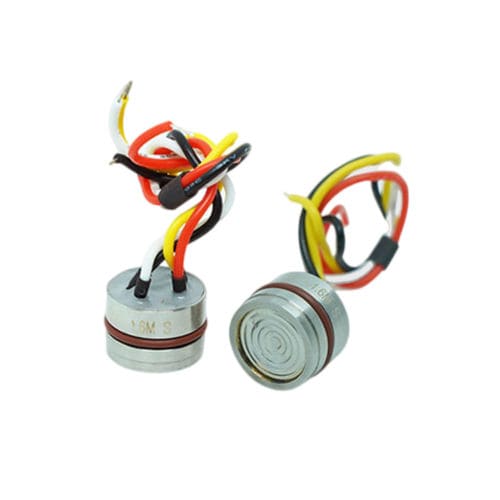

WPAK64 series is a pressure core encapsulated by high precision imported diffused silicon pressure sensitive chip and mature manufacturing technology. It is the core component for manufacturing pressure sensor and pressure transmitter.As a high performance pressure sensitive element, it can be easily amplified signal and integrated to a transmitter with standard signal output. WINSEN Elec can undertake special customization according to the needs of users, such as full welded structure, wide temperature compensation, customized shape, high reliability, strong impact and vibration resistance pressure sensors, to provide reliable solutions for a variety of applications. Application Process control system Pressure calibration instrument Hydraulic system Biomedical instruments Hydraulic system and valve Liquid level measurement Military equipment Refrigeration equipment and HAVC system Ships and navigation Aircraft and Avionics Systems Features All stainless steel 316L package, anti-erosion wide temperature compensation-10~+70℃ Constant current and constant voltage excitation are optional Normalized output available Glue-filled and moisture-proof circuit board
