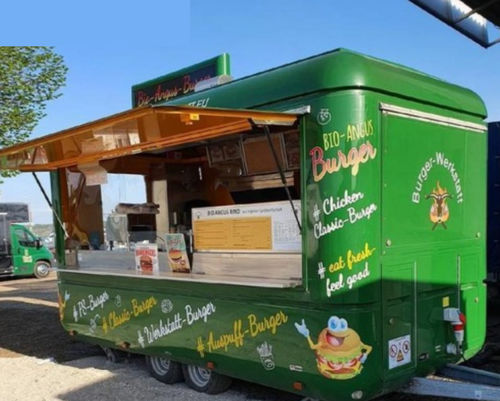

Van trailer YG series

for foodsingle-axle2-axle

Overview
YG Machinery's Small Trailer Food Truck is a modular, towable commercial catering unit designed to cover approximately 90% of mobile catering needs. Available in multiple modular sizes and interior layouts (coffee, BBQ, ice cream, etc.), models are offered to meet US FDA and EU CE hygiene standards.

Core Application Scenarios

• Markets & Festivals: suitable for weekend markets and music festivals; 3–6 m units can serve 200+ customers daily.
• Campuses & Office Areas: fast service for morning peaks with easy-to-clean stainless-steel interiors.
• Beaches & Parks: 5 cm insulation resists high temperatures; optional fresh-water tanks from 25 L to 100 L.
• Communities & Private Events: custom paint and flexible parking options for weddings, parties and private catering.

Model parameters

• YG-300RD — Body: 300×210×210 cm; Total: 350×210×250 cm; Axle: one; Brake: no
• YG-350RD — Body: 350×210×210 cm; Total: 450×210×250 cm; Axle: two; Brake: yes
• YG-400RD — Body: 400×210×210 cm; Total: 500×210×250 cm; Axle: two; Brake: yes
• YG-500RD — Body: 500×210×210 cm; Total: 580×210×250 cm; Axle: two; Brake: yes
• YG-600RD — Body: 600×210×210 cm; Total: 700×210×250 cm; Axle: two; Brake: yes
• Other custom sizes available

Construction & Equipment
Chassis:

• Integral steel frame: square tube 100×50×4 mm + 60×40×2 mm
• Suspension: 5-leaf springs with axle; rust‑resistant protective coating
• Standard speed: 40 km/h; optional special chassis for 80–100 km/h

Body:

• External: galvanized sheet with color paint options
• Insulation: 5 cm middle layer
• Interior: high-quality stainless steel
• Selling window: standard 2000×1100 mm (other sizes available) with waterproof sealing strip

Electric accessories:

• Main control panel and automatic power-failure protector
• Two rows of LED spotlights (ceiling and service window)
• Standard sockets as required; tail light signal system (brake, turn, reverse)

Floor:

• 3 layers: 2 mm non-slip embossed aluminum + 10 mm plywood or PVC + 1 mm galvanized sheet

Wheel:

• Double axles (four wheels); 14" or 15" tires; one jockey wheel

Water sinks & plumbing:

• Double sinks with hot/cold taps (3-compartment sink optional)
• Fresh and waste water tanks (25 L standard); other capacities available
• 12 V mini water pump with on/off switch

Key Advantages & Notes

• Full-scenario customization for coffee, BBQ, ice cream and other formats
• Durable materials: steel chassis and galvanized shell; rated for -20℃ to 50℃
• Hygiene-focused configuration: dual sinks, LED lighting, standard sockets, 12 V pump
• Easy towing: single- or dual-axle options; ordinary SUVs can tow smaller models; dual-axle with brakes recommended for long-distance transport
• Lead times: 7–10 days for standard models; 15–20 days for complex designs; 30 days including shipping (reported)

Technical specifications

• Commercial name: Small Trailer Food Truck
• Brand: YG Machinery China
• Available models: YG-300RD, YG-350RD, YG-400RD, YG-500RD, YG-600RD; custom sizes available
• Body dimensions: 300×210×210 cm to 600×210×210 cm
• Total dimensions example: 350×210×250 cm to 700×210×250 cm
• Axle options: single or double; brakes optional
• Chassis: integral steel frame (square tube 100×50×4 mm + 60×40×2 mm), 5-leaf spring suspension, rust-resistant coating
• Body construction: galvanized outer sheet, 5 cm insulation, stainless-steel interior
• Selling window: standard 2000×1100 mm (other sizes available)
• Electric: control panel, power-failure protector, LED lighting, standard sockets, tail light system
• Floor: 2 mm non-slip embossed aluminum + 10 mm plywood or PVC + 1 mm galvanized sheet
• Water & plumbing: double sinks (3-compartment optional), fresh & waste tanks (25 L standard), 12 V pump
• Optional customizations: interior layout, colors, higher-speed chassis (80–100 km/h) and equipment tailored to cuisine
• Compliance: stated conformity with US FDA and EU CE hygiene standards
• Typical manufacturing/delivery times: 7–10 days (standard); 15–20 days (complex); 30 days including shipping
