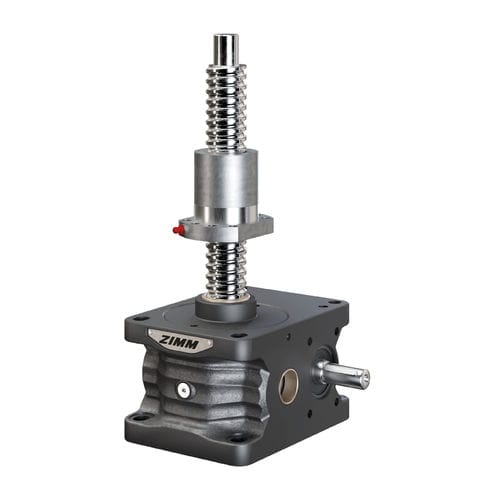

Ball screw jack ZE-H series
worm gear

ball screw jack
ball screw jack
ball screw jack
ball screw jack
Add to favorites
Compare this product


ball screw
Other characteristics
worm gear

Min.: 35 kN

Max.: 200 kN


Min.: 9 Nm

Max.: 95 Nm


Nominal speed: 1500 rpm max. drive shaft speed: 1800 rpm Screw size standard: 40x5 KGT load rating dynamic: 27,5 KGT load rating static Co=Coa: 63,6 Axial play: 0,06 Housing material: GGG-50, corrosion-resistant Worm shaft: steel, case-hardened, ground Weight of screw jack body: 9,5 kg Weight of screw/m: 8,0 kg Gearbox lubrication: synthetic fluid grease Screw lubrication: grease lubrication Gearbox operating temperature: max. 60°, higher on request Moment of inertia: N: 0,97 kg cm² / L: 0,67 kg cm² Screw: Rotating (R)
