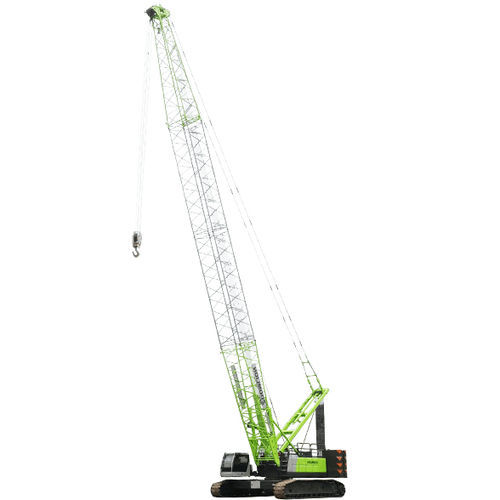

Crawler crane ZCC1500V

boomfor constructionlifting

Superior lifting performance Track gauge of 6m; rear counterweight of 51.4t + central ballast of 16t. Its lifting performance is superior to other products of the same tonnage. Configuration Weichai classic WP10 engine, with strong power, timely service and low cost for maintenance. Dual-pump confluence of the main pump helps to improve the maneuverability and reliability of the hydraulic system. Dual slewing reducers provide stable and powerful slewing movements. Traveling motor and reducer for 200t provide strong power for traveling with no fear of bumpy roads. Load moment limiter is equipped with a dual-tension sensor, which helps to improve the measurement accuracy of lifting. The risk of abnormal measurement of s single sensor can be automatically eliminated through the comparison of numerical values on the dual-tension sensor, thus improving the safety of the whole crane. The ultra-wide operator’s cab of 1250mm provides a bright, comfort and large space with broad visions. The large-volume fuel oil tank (700L) reduces times of oil-refilling. It adopts the layout of large-sized crawler cranes. The engine is located at the rear end of the slewing table, thus generating lower noise and less vibration to the cab and providing sufficient space for maintenance. It is safe to climb up or down because the crane is equipped with handrails on both sides, platforms of stainless steel and guardrails.
