Cross & Morse flange couplings
The Taper bushes represent a simple and cost effective solution for securing a connection between sprockets, pulleys and couplings to a variety shafts with metric and imperial dimensions, and general commercial tolerances ...
Torque: 0.4 Nm - 712 Nm
Rotational speed: 4,200 rpm - 31,000 rpm
The Type L couplings are designed for medium to high speeds up to 31,000 rpm. These cost-effective units are available with 4 different insert materials and are compatible with industry Std. They are intended for applications ...
Torque: 33 Nm - 3,300 Nm
Rotational speed: 100 rpm - 7,500 rpm
The KE series is a flexible coupling that is ideal for use in operations with low up to moderate speeds. It is also reliable even in oily and dirty environments. The series has a rated speed lesser that or equal to 7,700 ...
Torque: 17.5 Nm - 1,505 Nm
Rotational speed: 3,800 rpm - 6,500 rpm
The Morflex series from Cross & Morse, is a flexible coupling with good torsional damping. The Morflex series is a medium speed coupling, with a maximum speed of up to 6500 rpm. Features of the coupling ...
Torque: 600 Nm - 90,000 Nm
Rotational speed: 700 rpm - 6,000 rpm
Device offers high torque capacity coupling. It is usable for medium speed applications needing up to 6,000 rpm. It is torsionally stiff and offers long service if alignment is good. It is usable for high torque reversing ...
Torque: 18 Nm - 36,000 Nm
Rotational speed: 2,100 rpm - 12,000 rpm
Crosse-Morse's Crossflex Disc Flexible Shaft Couplings are generally utilized for applications that involve mechanical power transmission, and operations that need minimized maintenance requirements and zero lubrication. ...
Torque: 784 Nm - 2,270,000 Nm

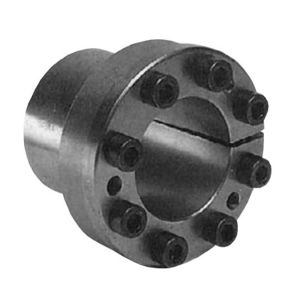

These shaft clamping elements provide maximum torque transmission from a single unit, but, due to their large clamping surfaces clamping pressures are kept to reasonable levels. The design enables automatic centring between shaft and ...
Torque: 264 Nm - 136,500 Nm
These clamping elements are basically to same design as RCK 13, but with increased diameter flange to locate hub and prevent axial movements, so combining good concentricity with positive axial location. The increase ...
Torque: 294 Nm - 48,200 Nm
... pressures also. This design can be mounted within the confines of a hub providing a stepped bore is provided to accommodate the flange.
Torque: 12 Nm - 29,041 Nm
... design ensures good levels of concentricity. For correct operation of these units, the hub diameter should not be less than the flange diameter , even though with many materials stress limits would allow selection of ...
