Cross & Morse transmission couplings
Taper bushes provide a low cost, simple, quick method of securing sprocket, pulleys and couplings to a wide range of standard metric and imperial dimensioned shafts of general commercial tolerances and finish. The taper ...
Torque: 10 Nm - 2,400 Nm
Rotational speed: 2,800 rpm - 14,000 rpm
The couplings are equally suited to horizontal or vertical shaft applications, providing positive power transmission and absorbing torsional, vibration and impact loads. The standard elastomeric ring ...
Torque: 33 Nm - 7,000 Nm
Rotational speed: 100 rpm - 7,700 rpm
The coupling consists of two machined cast iron hubs connected by an elastomeric gear ring. Available in 8 basic sizes, with torque capacity to 3300 Nm, the KE coupling provides positive power transmission ...
Torque: 18 Nm - 36,000 Nm
Rotational speed: 2,100 rpm - 12,000 rpm
... servomotors. The well balanced all steel construction enables transmission of high torques at high shaft speeds, as encountered on turbine drives. Crossflex Disc Couplings Three hub designs as well ...
Torque: 784 Nm - 2,270,000 Nm

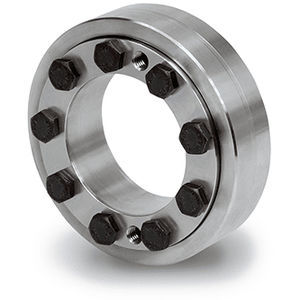

These shaft clamping elements provide maximum torque transmission from a single unit, but, due to their large clamping surfaces clamping pressures are kept to reasonable levels. The design enables automatic centring between ...
Torque: 282 Nm - 2,700 Nm
... hub of constant bore diameter. On clamping precise axial and radial positioning is provided, combined with medium torque transmission capability.
Torque: 2,400 Nm - 3,736,000 Nm
... outer ring are aligned. This allows the transmission of torque values shown in the table. This overcomes the problems often encountered where units are either under or over tightened causing failures in transmission. ...
