ELETTROTEC magnetic float level switches

The LMS200 electric switch is a magnetically actuated double pole double throw switch. When the LMS200 is mounted on a KM26 magnetic liquid level indicator, LS series ...

Process temperature: -196 °C - 350 °C
Process pressure: 0 bar - 40 bar

A float with a permanent magnet moves reliably along with the liquid level on a guide tube. Within the guide tube is fitted a reed contact (inert gas contact), which is energised, through ...

Process temperature: -196 °C - 350 °C
Process pressure: 0 bar - 232 bar

Applications Level detection for almost all liquid media Pump and level control Chemical, petrochemical industry, natural gas, offshore, shipbuilding, machine building, power generating ...

Process temperature: -40 °C - 120 °C
Process pressure: 0 bar - 5 bar

... the model HLS-M float switch for horizontal installation in miniature design is ideally suited for use in small tanks, for indicating minimum/maximum levels. The float ...

Process temperature: 0 °C - 300 °C
Process pressure: 25 bar

... Switching element: Micro switch, change-over contact (SPDT) with silver contacts Switching capacity: 250 VAC, 5 A / 30 VDC, 5 A Fitting length (tank side): 226 mm Safety Integrity ...

Process temperature: 0 °C - 250 °C
Process pressure: 0 bar - 250 bar

... of the float mechanism. Bellow material - Perbunan Safety Integrity Level (SIL) - SIL 1 (Type AA 01 051: SIL 2) Approvals - ABS, BV, ClassNK, DNV-GL, LR, RINA, RMRS Bellow material ...

Process temperature: -30 °C - 80 °C
Process pressure: 25 bar

... Switching capacity: 250 VAC, 5 A / 30 VDC, 5 A Cable length: 3 m or as required Cable type: Neoprene (H07RN-F) Safety Integrity Level (SIL): SIL 1 (Types U3AA 01 04, U5AA 01 04, U11AA 01 04: SIL 2)

Process temperature: -52 °C - 240 °C
Process pressure: -1 bar - 47 bar

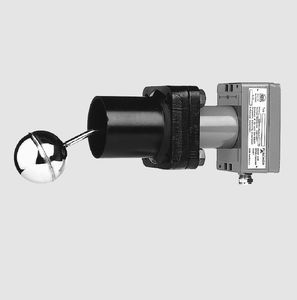

Float switch in horizontal design The horizontal float switch can be easily mounted, e.g. on the side of a tank wall. Due to its construction it is suitable for the ...

Process temperature: -52 °C - 240 °C
Process pressure: -1 bar - 37 bar

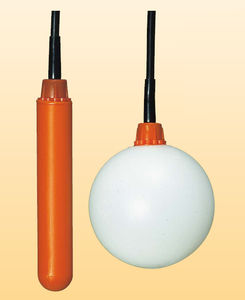

Float switch in curved version The float switch is typically used to switch alarms, pumps, signal lamps, valves, and horns via a contact protection ...

Process temperature: -20 °C - 110 °C
Process pressure: 10 bar - 25 bar

... reproducible ●Normally open or normally closed contact ●Plug connection Characteristics Mechanical level monitor for fluid media, with contact-free triggering of a reed contact.

Process temperature: -20 °C - 105 °C
Process pressure: 40 bar

Mechanical level monitor for fluid media, with contact-free triggering of a reed contact. ●Cover or base mounting for monitoring max. or min. level ●Normally closed or normally open ...

Process temperature: -20 °C - 105 °C
Process pressure: 12 bar

Mechanical level monitor for fluid media with contact-free actuation of a reed contact. ●Mounted in the cover ●Changeover contact Handling and operation ●It must be ensured that the values given ...

... features a Latching Reed Switch that eliminates the need for multiple floats to indicate various switch points. 7014 UniFloat float switch is ideal ...

Process temperature: -10 °C - 80 °C
Process pressure: 0 bar - 10 bar

Level Switches with Stop Ring Materials of constructionGSA – brass stem, NBR float GSIA – all 316 stainless steel Actuation points LM1 – 1 actuation point N.C./N.O. contact LM2 – 1 actuation point ...

Process temperature: -10 °C - 80 °C
Process pressure: 0 bar - 10 bar

Stainless Steel Execution Materials of construction316 stainless steel Actuation points LM1 – 1 actuation point N.C./N.O. contact LM2 – 1 actuation point SPDT contact LMM1 – 2 actuation points N.C./N.O. contacts Mounting GIA – Ø ...

Process temperature: -5 °C - 50 °C
Process pressure: 0 bar - 5 bar

PVC Level Switches Materials of constructionAll PVC Actuation points LM1 – 1 actuation point N.C./N.O. contact LM2 – 1 actuation point SPDT contact LMM1 – 2 actuation points N.C./N.O. contacts Mounting GSPA – G3/8” ...

Process temperature: 150 °C
Process pressure: 103 bar

... attached to the float assembly and the magnet’s interaction with a reed switch. As the liquid level changes, the float and, therefore, the float ...

Process temperature: -50 °C - 538 °C
Process pressure: 228 bar

... gravity As the counter weighted float follows liquid level changes, a magnetic sleeve is moved into or out of the field of a switch-actuating magnet causing switch ...

Process temperature: 540 °C
Process pressure: 41 bar

... between the switch mechanism and the process. On a falling level, the float/displacer deactivates the switch. Easy inspection of float chamber through ...

Process temperature: -40 °C - 200 °C
Process pressure: 10 bar - 40 bar

The FF Series is a magnetic float level switch specifically designed for mounting on the side of a vessel where float orientation is horizontal. It is ...

Process temperature: -20 °C - 200 °C

... FD Series is a magnetic float level switch product line. They are top mounted units designed to provide cost-effective multiple switch points using a ...

Process temperature: -20 °C - 120 °C
Process pressure: 0 bar - 10 bar

Electromagnetic level indicators to one or two contacts 1/2" Bsp threaded Connection SPST or SPDT Contacts USE: Made to ensure, with maximum safety, the minimum or minimum and maximum levels ...

Process temperature: -20 °C - 120 °C
Process pressure: 0 bar - 10 bar

Electromagnetic level indicators to one or two contacts 3/4" Bsp threaded Connection SPST or SPDT Contacts USE: Made to ensure, with maximum safety, the minimum or maximum level of liquids ...

Process temperature: -20 °C - 120 °C
Process pressure: 0 bar - 10 bar

Electromagnetic level indicators at a control point M18x1 5 connection SPST or SPDT Contact USE: Made to ensure, with maximum safety, the minimum or and empty levels of liquids in tanks, ...

Process temperature: -20 °C - 200 °C
Process pressure: 3,000,000 Pa

LXT207 float-operated with test device level switches are suitable for controlling liquid level at horizontal mounting. The float equipped with an extended arm moves ...

Process temperature: -20 °C - 130 °C

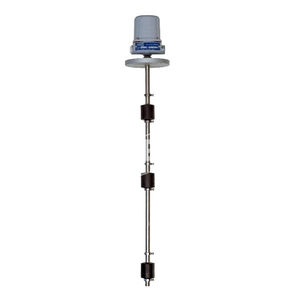

The vertical float level switch consist of a float with a built in permanent magnet, and guide tube built in reed switch (one or more), when the float ...

Process temperature: -20 °C - 130 °C
Process pressure: 10 bar

... Working Pressure: please refer to the float spécification Limited Working Température: please refer to the float spécification - Switch Mode: SPDT - __ Setting Point: One float ...

Process temperature: 0 °C - 25 °C
Process pressure: 0 bar - 5.5 bar

... liquid levels which is easily monitored. The level control designs can be achieved with at least two floats, one works as minimum contactor and the other as the maximum contactor. This ...

Process temperature: 0 °C - 250 °C
Process pressure: 0 bar - 25 bar

Dual-Magnet Float Switch Model NGS : Method of Operation As the level rises and falls the inclination of the float is changed causing a permanent magnet in the float ...

Process temperature: 0 °C - 100 °C
Process pressure: 0 bar - 10 bar

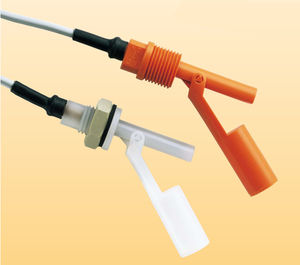

... design and high-switch capacity reed contacts. It can be installed on the vessel side. A hinged plastic float with a magnet is floating upwards and downwards by the level ...

Process temperature: -30 °C - 80 °C

Compact single level vertical mount LS01 Series Liquid Level Sensor used in level control, detection and monitoring. High power switch option, other cables and connectors. Specifications Contact ...

Process temperature: -40 °C - 160 °C

Compact stainless steel single level vertical mount LS02 (S) Series Liquid Level Sensor used in level control, detection and monitoring. High power switch option, other ...

Process temperature: 200 °C
Process pressure: 0 bar - 12 bar

... stainless steel LS05 Series Liquid Level Sensor for single, multi and continuous level control, detection and monitoring capable of high temperature resistance up to 200°C (SS) and pressure up to 12 bar. ...

Process temperature: -25 °C - 70 °C
Process pressure: 40 bar

... manufactured by Aplisens, is a level switch equipped with an explosion proof version. It has a protection class of IP 66/68, nominal pressure capacity of 40 bar and 321SS wetted parts. This level ...

... ordering the level swicth with connector according to the requirements, e. g. with flange acc. to DIN or ANSI standard. The level switch can also be ordered in version fully made from ...

Process temperature: -40 °C - 150 °C

The Magnetic Switches in the round housing have the following Features: - ø8 and 12 mm - Threads M8, M10, M12, PG7 - PVC- and Silicone-cable - M12-connector - max. 1 NO or NC, change over - overall length: 30 to ...

Process temperature: -40 °C - 150 °C

The Magnetic Switches in the flat pack have the following Features: - 35x13 mm to 80x35 mm - PVC- and Silicone-cable - M12-connector - 1 NO or NC, change over - Temperature range -40°C to +150°C - upto IP65 - Options: ...

Process temperature: -40 °C - 150 °C
Process pressure: 0 bar - 3 bar

The Float Switches have the following Features: - G1/8" to G1", Flange (round and oval) - PVC- and Silicone-cable - M12-connector - Alu- and ABS-enclosure - max. 2 NO oder NC, max. 3 Change over - Overall length ...

Process temperature: -110 °C - 200 °C
Process pressure: 100 bar

... points (always adjustable field) by switching their state according to the level of the liquid present in the tank (level that is transmitted continuously). Each magnetic level ...

Process temperature: -20 °C - 120 °C
Process pressure: 10 bar

... the mechanical aspect in terms of chemical and ideal as insulating container of reed contacts. A single float can operate a single Reed (min. or max. Level), or two ...

Process temperature: -20 °C - 80 °C
Process pressure: 10 bar

... up to 10 bar The level switchis a level switch RIL220 float suitable for high temperatures. It can be used for dirty liquids, water, petroleum, oils, coolants. It ...

Process temperature: -20 °C - 150 °C

Magnetic float level controls for liquids are made of a reed contact placed inside the shaft and an operating magnet placed in the float which runs ...

... range of electromagnetic level switches designed to meet the most varied application needs in the field of liquid level control. The operation consists of a reed ampoule ...
