Clamping force: 8,000 N
... . The jaws clamp the workpiece, the clamp is still floating. 4. Tighten the AF 10 hexagon nut with max. 10 Nm torque. The clamping process is completed. 5. Reverse the process to release. Assembly: Form A: Fasten the ...

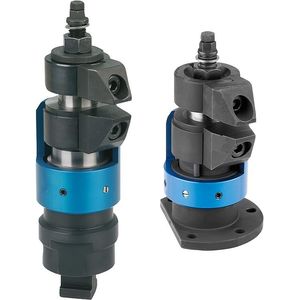

Centring clamps Material: Body steel. Bushes carbon steel. Version: Black oxidised. Note: These centring clamps allow workpieces to be centred on and clamped in a bore. The clamps have a wide expansion range. The series covers a bore ...
Clamping force: 3 kN - 58 kN
The 04010 series is designed from a tempered steel material. It provides a black oxide finish. The unit is compatible to use with thrust pins, and thrust bolts. In addition, the product range offers varying weight range of 0.060 kg, ...
Clamping force: 4.8 kN - 20.2 kN
Clamp straps with flattened ball Material: Straps carbon steel. Balls roller bearing steel. Version: Strap black oxidised. Ball hardened, bright. Note: When using spherical washers 07420 use Form G. Ball secured against rotation.
Clamping force: 4 kN - 58 kN
Material:Carbon steel. Version:Tempered and black oxidised. Note:The flat gooseneck allows lower steps on the workpiece to be machined or clamped. When using spherical washers 07420 use Form G.
Clamp straps open U flat pin, steel or aluminium Material: Carbon steel or EN AW-7022. Version: Painted, aluminium bright. Note: When using spherical washers use the wide series 07420 Form G.
Clamping force: 20.2 kN - 37.8 kN
... adjustment without blocks or shims and requires little space on the machine table. Designed for rugged use and highly suitable for clamping blanking and punching dies.
Clamping force: 9 kN - 16.5 kN
... : The double-sided clamp straps are ideal for series clamping. For special applications, the clamping flange can be replaced with another clamping flange by loosening the clamping ...
Clamping force: 30 kN - 75 kN
... stud, DIN 6340 washer and DIN 6330B nut. Note: These clamp strap assemblies can be quickly and infinitely adapted to the clamping situation. The clamp straps have different heel types both sides enabling the best end ...
Clamping force: 1,100 N - 3,500 N
... Material: Carbon steel. Grip plastic. Version: Tempered, black oxidised. Grip black. Note: Swing clamps are used where the clamping points must be free when the workpiece is loaded or removed. * Admissible hand force ...
