PARKER screw-in fittings

Diameter: 0.06 in - 2 in
Operating pressure: 1,800 psi - 10,500 psi

Diameter: 6 mm - 38 mm
Operating pressure: 315, 160, 630, 400 bar

... conveniently assembling Ermeto Original fittings. Product Overview The HVM-B pre-assembly tool and the EO-Karrymat are reliable devices for quickly, safely and conveniently assembling Ermeto Original fittings. HVM-B: ...

Diameter: 6 mm - 50 mm
Operating pressure: 630 bar

Diameter: 4 mm - 12 mm
Operating pressure: 30 bar

In order to meet your technical and environment requirements, Parker Legris designed this range of metal fittings, offering robustness, reliability and resistance to industrial fluids for the most demanding environments.

Diameter: 3 mm - 25 mm
Operating pressure: 1 bar - 10 bar

Diameter: 6 mm - 38 mm

... Seal (ORFS) Fittings and Adapters, Seal-Lok for CNG, provide reliable fuel conveyance with an elastomeric seal compound made of hydrogenated nitrile. Tested and certified by TUV for applicable industry standards, these ...

Diameter: 6 mm - 50 mm
Operating pressure: 0 psi - 6,000 psi

... the proven O-ring Face Seal (ORFS) fitting design, these metal face seal fittings offer zero clearance, resistance to over torque and vibration resistance. Seal-Lok Xtreme are high-temperature, but also ...

Diameter: 0.13 in - 2 in
Operating pressure: 0 psi - 6,000 psi

... Tapered thread fittings offers a compact size for efficiency and have a high temperature tolerance. • Straight thread fittings have unlimited reusability, an elastomeric ...

Diameter: 0.75 in - 1.5 in
Operating pressure: 0 psi - 5,000 psi

... Features/Benefits: • Meet or exceed all pertinent industry requirements of SAE J1453, SAE J514, and ISO 8434-1. • Steel fittings substantially exceeded the SAE corrosion requirements of 72 hours without red rust, lasting ...

Diameter: 0.25 in - 0.5 in
Operating pressure: 0 bar - 634 bar

Parker's Orifice Fittings come in both 37° flare and O-ring face seal (ORFS) configurations. These compact and cost effective orifice fittings allow OEMs to pre-set, at the factory, a specified orifice ...

Diameter: 0.25 in - 1.5 in
Operating pressure: 0 bar - 414 bar

... unlimited positioning without displacing port adapter. • Enlarged and lengthened body hex ensures diagnostic port offers full thread engagement and pressure capability. • Diagnostic tee product line includes: Diagnostic ...

Diameter: 0.25 in - 0.5 in
Operating pressure: 0 psi - 1,500 psi

Parker's flareless inch bite type fittings, Intru-Lok®, have a visible bite which allows the fitting assembler to visually inspect the bite quality, which significantly minimizes the risk of improper ...

Diameter: 6 mm - 50 mm
Operating pressure: 0 bar - 634 bar

Parker's O-ring Face Seal (ORFS) Tube Fittings and Adapters, Seal-Lok, meet or exceed the requirements of both SAE J1453 and ISO 8434-3 and have international acceptance. O-ring face seal fittings offer ...

Diameter: 6 mm - 38 mm
Operating pressure: 0 bar - 517 bar

Parker's 37° Flare JIC tube fittings and adapters, Triple-Lok®, meet the requirements of both SAE J514 and ISO 8434-2 and offer the industry's broadest offering of port ends. The design has a small metal to metal seal ...

Diameter: 0.25 in - 0.75 in
Operating pressure: 1,000 psi - 6,000 psi

Parker's 24° Flareless tube fittings, Ferulok, have a visible bite which allows the fitting assembler to visually inspect the bite quality, which significantly minimizes the risk of improper assembly ...

Diameter: 4 mm - 28 mm
Operating pressure: 550, 20 bar

Legris brass compression fittings are compact and easy to assemble, provide excellent sealing qualities, and are suitable for use with various types of tubing. Excellent pressure (up to 14 bar nominal, 36 bar max) and ...

Diameter: 6 mm - 16 mm
Operating pressure: 80 bar

... stainless steel compression fittings are designed for use with corrosive fluids or in aggressive environments, such as chemical manufacturing or food and beverage processing. Compact and highly chemical resistant, these ...

Diameter: 3 mm - 16 mm
Operating pressure: 20, 30 bar

The LF 3000 range of durable plastic fittings is specially designed with a contemporary and compact built for pneumatic installations. Its features include a vacuum capability of 28" Hg, working temperature from -20°C ...

Diameter: 4 mm - 14 mm
Operating pressure: 30, 20 bar

The LF 3600 range is perfect for use in the food industry as well as to convey fluids in any moderately aggressive environment. Made of nickel plated brass, these components and FKM seals meet FDA requirements. They have a wonderful ...

Diameter: 4 mm - 12 mm
Operating pressure: 30 bar

The LF 3800 range is made to bear fluids in hostile environments for many operations like packaging and chemical production. Built with AISI 316L stainless steel with FKM seals for body and sub bases. And features up to 28”Hg Vacuum capability, ...

Diameter: 4 mm - 10 mm
Operating pressure: 60 bar

The brass LF 6100 range is designed with double sealing and a secure connection. The range can accommodate working pressures of up to 60 bar. It's working temperature range can go from -40 °C to +120 °C. It is ideal for applications ...

If you are running any kind of pneumatic installation, the Legris function fittings will allow you to have even better control. It is easy to install, reliable in operation and compact in design. These features makes ...

Diameter: 3 mm - 12 mm
Operating pressure: 10 bar

FLOW CONTROL REGULATORS, POLYMER VERSION Compact, precise and reliable, Legris flow regulators provide a consistant means of regulating air flow in standard pneumatic applications. The wide range of shpes, types of adjustment, and their ...

Diameter: 4 mm - 12 mm
Operating pressure: 10 bar

FLOW CONTROL REGULATORS, METAL VERSION Compact, precise and reliable, Legris metal flow regulators are particularly adapted to severe conditions : extreme temperatures, projections of sparks, mechanical constraints. Thus, they find quite ...

Diameter: 6 mm - 12 mm
Operating pressure: 10 bar

Compact, flexible and reliable, the Legris piloted function fittings -blocking fittings, piloted non-return valves, quick exhaust valves- enable you to enhance efficiency and security of your pneumatic installations.

Diameter: 0.75 in - 1.5 in
Operating pressure: 2,000 psi - 3,000 psi

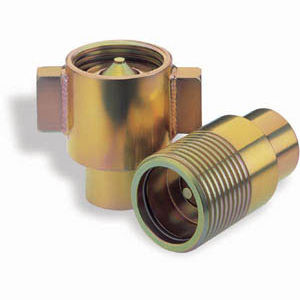

Snap-tite’s 78 Series are heavy duty thread-to-connect couplings engineered for industrial liquefied operations ideally for oil well devices, dump and demolition trailers, sand and salt spreaders, live bed trailers or any other heavy ...

Operating pressure: 2,483 bar

... optimal performance of product, the user will can choose from among the varied choices in Autoclave Engineers cone and threaded end fittings.

Diameter: 0.25 in - 2 in
Operating pressure: 0 bar - 69 bar

The 28-1 Series is a space-age/low-pressure drybreak quick disconnect unit. It is machined and tested to meet all critical standards and offers connection support for closed systems. Some of the areas in which it is superior to other ...

Diameter: 0.13 in - 4 in
Operating pressure: 350 psi - 6,500 psi

The Parker H Series Quick Disconnect has a solid history used for both pneumatic and hydraulic applications as well as in managing of various gases/fluids. The H Series couplings are engineered to meet or exceed MIL-C-51234 offering ...

Diameter: 0.13 mm - 1 mm
Operating pressure: max 520.0 bar

The 72 Series Quick Disconnect Coupling provides excellent pressure and flow attributes over the competition which makes it the leading ISO industrial interchange. It is built to comply with or surpass the requirements of ISO Series B. ...

Diameter: 0.75 in - 4 in
Operating pressure: 0 bar - 345 bar

... fluids that are resistant to fire. The ruggedness of the thread is also quite well, and can hence do well in harsh situations. Ease of use is also facilitated thanks the screw together and acme thread ...

Diameter: 0.25 in - 0.38 in
Operating pressure: 0 bar - 1,000 bar

This coupling of the 76 series was made by Parker. It has a Snap-tite design that screws together and works well in situations where the pressure is exceedingly elevated. It is completely interchangeable with units made ...

Diameter: 0.5 in
Operating pressure: 0 psi - 12,000 psi

Snap-tite's 56 Series couplings are specifically designed for rugged, high pressure water blasting equipment. The water blast equipment is used in cleaning applications to 12,000 psi (828 bar), for paint removal, equipment and maritime ...

Diameter: 0.38 in - 2 in
Operating pressure: 0 bar - 69 bar

The K series couplings are specifically designed for cryogenic fluids that cannot be run through any old coupling and seal. The K series can handle temperatures of up to 400 degrees Fahrenheit using Kel-F seals. These couplings have ...

Diameter: 0.25 in - 0.5 in
Operating pressure: 0 bar - 690 bar

DSM Series couplings have poppet valves and threaded sleeves. They are manually operated, diver mateable subsea connections with proven performance. Features: • Sizes 1/4 and 1/2 inch • Up to 10,000 psi (690 bar) working ...
