RINGSPANN clamping

Clamping force: 2,500 N - 200,000 N

spring activated – hydraulically or pneumatically released hydraulically released Features - Code Clamping Unit - K Standard - E Sizes are available for selection - 032 to 160 Spring activated - F Hydraulically ...

Clamping force: 1,000, 1,600, 2,500, 4,000, 6,300 N

spring activated – hydraulically or pneumatically released pneumatically released Features - Code Clamping Unit - K Standard - E Sizes are available for selection - 040 to 100 Spring activated - F Pneumatically ...

centres the hub to the shaft very high transmissible torque Features Centres the shaft to the hub Very high transmissible torques For shaft diameters between 20 mm and 180 mm

... axial displacement Features Centres the shaft to the hub No axial displacement between hub and shaft during clamping procedure due to fixed ­backstop point

centres the hub to the shaft short axial width Features Centres the shaft to the hub High transmissible torques Short axial width

Clamping force: 6, 10, 14, 18 kN

for smallest shaft diameters excellent concentricity Features For smallest shaft diameters between 3 mm and 16 mm Excellent concentricity and transmission of bending moments

Clamping force: 25, 30, 34, 37, 38 kN

for small shaft diameters excellent concentricity Features For small shaft diameters between 17 mm and 35 mm Excellent concentricity and transmission of bending moments Radial flat height

pneumatically or hydraulically released for clamping of rotary/swivel tables Your benefit Exact holding of postioned angle High torsional stiffness Clamping by spring force Release ...

Clamping force: 2,500 N - 200,000 N

The KE … FHK clamping unit is a spring activated product which has a hydraulic release which make it useful for operations such as continuous piston rod clamping. The unit has holding forces which ...

Clamping force: 1,000 N - 6,300 N

Features - Clamping Unit - Sizes 40, 50, 63, 80 or 100 are available - Spring activated - Pneumatically released - No wear adjustment

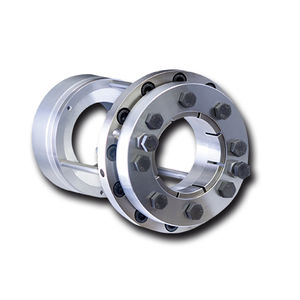

Clamping Systems RTM 601 for integrated torque motors for mounting and centring rotors Features - Provides a mechanical connection and centring between rotor and machine shaft - Backlash free, torsion-proof transmission ...

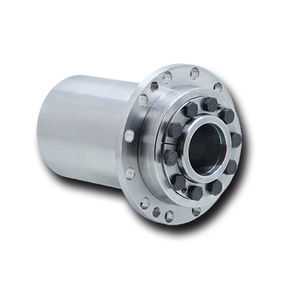

Clamping Systems RTM 607 for SIEMENS complete torque motors 1FW3 for mounting and centring complete torque motors Features - Provides a mechanical connection, support and centring between rotor and machine shaft - ...

... transmission of torque generated by the torque motor - High true running accuracy - For inexpensive clamping on solid shafts - Easily removable Cone Clamping Element, even after long periods of operation

... Collet galvanized and blue-chromed to prevent fretting corrosion - Easily removable Cone Clamping Elements, even after long periods of operation - Cone Clamping Elements can be mounted from the B-side ...
