SIEMENS flange couplings
Torque: 19 Nm - 62,000 Nm
... torsional flexibility, N-EUPEX® couplings can move critical torsional vibrations away from the operating area of mechanical equipment in such a way that no negative effects on the drive train are to be expected. N-EUPEX ...
Torque: 1,300 Nm - 10,000,000 Nm
Double-jointed gear coupling Nominal torque range from TKN = 1,300 Nm up to 7,200,000 Nm with 31 sizes Temperature range: from –20 °C to +80 °C Strong and reliable The double-jointed gear couplings ...
Torque: 1,020 Nm - 162,500 Nm
Double-jointed gear coupling Nominal torque range from TKN = 1,020 Nm up to 162,500 Nm with 12 sizes Temperature range: from –20 °C to +80 °C Strong and reliable ZAPEX ZN® couplings connect ...
Torque: 60 Nm - 21,200 Nm
... N-EUPEX DS® couplings do not have a fail-safe device, allowing positive disconnection of the input and output side upon failure of the flexible elements due to overload or wear. Then, the metal parts of the DS coupling ...
Torque: 200 Nm - 1,300,000 Nm
... -safe pin and bush coupling for medium and higher torques Nominal torque range from TKN = 200 Nm up to 1,300,000 Nm with 26 sizes Temperature range: from –50 °C to +100 °C Robust and proven a million times RUPEX® ...
Torque: 1,600 Nm - 90,000 Nm
... benefits at a glance Suitable for high dynamic loads Good damping properties Available as a fail-safe coupling Available as a shaft and flange coupling Designs available that comply ...
Torque: 330 Nm - 63,000 Nm
... properties the ELPEX-S® coupling is very well suited to connecting machines with considerably non-uniform torque characteristics. The inside diameter of the rubber disk element is vulcanized on a flange. ...
Torque: 500 Nm
Rotational speed: 1,450 rpm
... minimum. Fluid couplings operate according to the Föttinger principle. The coupling parts on the input and output side are not mechanically connected and are therefore wear-free. The torque is transmitted ...
Torque: 0.1 Nm - 5,000 Nm
Rotational speed: 15,000 rpm

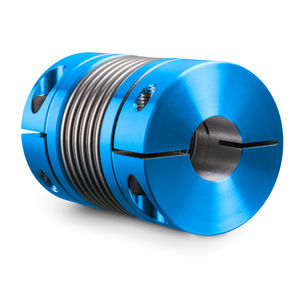

... torsion-resistant metal bellow coupling Nominal torque range from TKN = 0.1 Nm to 5,000 Nm with 20 sizes Temperature range: from –30 °C to +120 °C Backlash-free applications – easy solutions In the area of ...
