S.I.M.A.S.V. CNC presses

Force: 30 tf
Opening: 2,500 mm
Rate (strokes/min): 1,200, 3,200 p/min

... launched ES NT Series Electro Servo CNC Punch Press 30 ton with advanced REXROTH AC Servo drive technology. and featured with high speed, high precision, energy saving, and low noise. the ES NT Series ...

Force: 35 tf - 600 tf
Opening: 600 mm - 1,050 mm
Stroke: 350, 600, 450, 560, 700 mm

... machine accuracy; Machine structure: through finite element analysis, guarantee the strength and rigidity of hydraulic press; Energy saving: high power motor fulfill high speed high pressure processing requirement, ...

Force: 1,000, 100, 500, 300 tf
Opening: 800, 450 mm
Stroke: 250, 200 mm

... by machine accuracy; Machine structure: through finite element analysis, guarantee the strength and rigidity of hydraulic press; Energy saving: used of servo motor driving system, can achieve energy saving 30 – 50%; Low ...

Force: 5 tf - 200 tf
Opening: 350 mm - 1,000 mm
Stroke: 300, 200, 180, 500 mm

Open type welded strong frame structure through annealing process, ensures high rigidity and save working space. Ram cylinder structure: built-in auxiliary cylinder, fast dry run speed, enhances high productivity. Control system: ...

During the development of the compact guarding SCHMIDT® SmartGuard, the focus was on ergonomics and protection at the workstation. The transparent guarding completely encloses the working area during the pressing process, effectively ...

Force: 28 tf
Stroke: 150 mm
Working speed: 2 mm/s - 10 mm/s

... the press is also equipped with a manometer. We show this 28 ton C-frame press in our RHTC showroom and deliver it directly from our stock all over the world. Contact us for more information or for ...

Force: 50 tf
Stroke: 150 mm
Working speed: 2 mm/s - 10 mm/s

... stroke with an accuracy of 0.1 mm. When you need to hold the press in its lowest position under pressure, you easily adjust this holding time from 0 to 2 seconds. Our 50 ton C-Frame Press has two work ...

Force: 80 tf
Stroke: 150 mm
Working speed: 2 mm/s - 10 mm/s

... stroke with an accuracy of 0.1 mm. When you need to hold the press in its lowest position under pressure, you easily adjust this holding time from 0 to 2 seconds. Our 80 ton C-frame press has two work ...

Force: 100 tf
Weight: 2,550 kg
Overall length: 2,000 mm

... carriage with double slides, suitably hardened, grounded and protected by dust scrapers. The T.100 DIGIT 2 AXES bending press allows the program and micrometer stroke adjustment through CN electronic positioner model ...

Force: 70 tf
Weight: 1,960 kg
Overall length: 1,720 mm

... steel carriage with double slides, suitably hardened, grounded and protected by dust scrapers. The T70 DIGIT 2 AXES bending press allows the program and micrometer stroke adjustment through CN electronic positioner ...

Force: 40 tf
Weight: 1,000 kg
Overall length: 1,150 mm

... SlMplylogik type CN which, allows the operator to programme different work procedures without re-processing the piece. The numerical control is composed as follows: - displaying on a high luminescence and resolution ...

Force: 2,942 kN
Opening: 500 mm

Ø cylindrical columns (mm)110 Lower and upper plate (mm)1350 x 900 Engine power (HP)25 Approximation speed (mm/sec)25 Work speed (mm/sec)6 Max. pressure (bars)300 Machine dimensions (m)1,90x1,80x3,60 Weight (Kg.)14000

Force: 2,500 tf

... automatically stop the forming cycle when the desired depth of the dished end is reached. The PPH machine The PPH water press machines are built in-house, like all the Faccin machines, with an oversized frame made ...

The Novitool® Amigo™ Splice Press splices monolithic belting, ensuring tight pitch tolerance and no pinholes. Accuracy, speed, and operator safety are fully integrated into the Amigo design, making it an ideal splicing ...

Force: 220 kN - 2,200 kN
Hydraulic pump power: 18.5 kW
Overall height: 600 mm

The “2200 CNC” hydraulic horizontal press ticks every box as far as flexibility and the range of performance of the control system are concerned. The CNC control is used primarily ...

Force: 220 kN - 2,200 kN
Hydraulic pump power: 30 kW
Overall height: 850 mm

The “3300 CC” hydraulic horizontal press ticks every box as far as flexibility and the range of performance of the control system are concerned. The CNC control is used primarily for pre-tensioning steel ...

Force: 440 kN - 4,400 kN
Hydraulic pump power: 45 kW
Overall height: 1,050 mm

4400 CNC bending and straightening press The “4400 CC” hydraulic horizontal press ticks every box as far as flexibility and the range of performance of the control system are concerned. ...

Force: 1,000, 2,000, 3,000 kN

Kurtz KPS SKT Trimming Presses with sliding-tilting table function - Sliding function via hydraulic cylinder - Hydraulic swivel drive tilts up to 180° - Tilt angle freely programmable - Speed profile free programmable - Recipe ...

Force: 500, 1,000, 2,000, 3,000 kN

KPS - Column Version - Ideal solution for tall parts and parts with large volume - Loading and removal possibilities from four sides - Robust, strongly dimensioned guiding columns - All possibilites of flash removal by variable ...

Force: 32, 52, 67, 100 tf

Trimming Presses in C-Frame Design Free access from all sides Simple robot handling Full use of the whole table and clamping platen area The size of the trimming tool is not limited by the table and clamping platen area Ideal ...

Force: 500 kN - 4,500 kN
Rate (strokes/min): 20 p/min - 200 p/min
Stroke: 12 mm - 300 mm

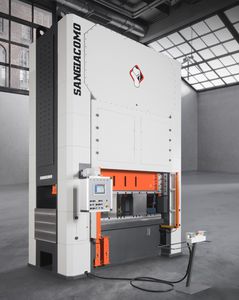

STRAIGHT-SIDE presses thanks to a solid frame with four columns or uprights ensures a parallel deflection. This involves a significant reduction of tool wear which consequently results in a superior quality of process and parts. Moreover, ...

Force: 1,250 kN - 5,000 kN
Rate (strokes/min): 20 p/min - 150 p/min
Stroke: 14 mm - 300 mm

STRAIGHT-SIDE presses thanks to a solid frame with four columns or uprights ensures a parallel deflection. This involves a significant reduction of tool wear which consequently results in a superior quality of process and parts. Moreover, ...

Force: 1 kN - 10,000 kN
Table width: 1,100 mm
Table length: 1,400 mm

... ensures the excellent performance of press, and all the main components for mechanical processing are manufactured by imported machining center, to ensure machining precision of press elements. Why ...

Force: 0 kN - 1,600 kN
Opening: 1,700 mm
Table width: 1,300 mm

... ensures the excellent performance of press, and all the main components for mechanical processing are manufactured by imported machining center, to ensure machining precision of press elements. Why ...

Force: 0 kN - 3,000 kN
Opening: 2,000 mm
Table width: 1,700 mm

... ensures the excellent performance of press, and all the main components for mechanical processing are manufactured by imported machining center, to ensure machining precision of press elements. Why ...

Force: 30 tf - 250 tf
Opening: 600 mm - 800 mm
Rate (strokes/min): 600 p/min

These presses usually used in processes of manufactirıng small molded materials. Processes such as cutting, drıllıng, shaping, drawing can be done easily, wıth hct model c frame presses (owing to sensetively processed table surfaces) Compared ...

Force: 100 tf - 200 tf
Opening: 700 mm - 700 mm
Stroke: 400 mm - 400 mm

It is generally used for straightening defects such as curving of metals cut wıth laser or oxygen plasma, also used for mateials subject to welding processes. It is designed for straıghtenıng of steel, iron materıals that have different ...

Force: 20 tf - 60 tf
Opening: 400 mm - 400 mm
Stroke: 400 mm - 400 mm

It is generally used for straightening defects such as curving of metals cut wıth laser or oxygen plasma, also used for mateials subject to welding processes. It is designed for straıghtenıng of steel, iron materıals that have different ...

Force: 1.8 tf - 38 tf
Stroke: 30 mm - 300 mm
Hydraulic pump power: 2.2 kW - 37 kW

... manutacturing processes, Such as punching using a machine press or stamping press, blanking. embossing, bending, flanging, and coining. This could be a single stage operation where every stroke of the ...

Force: 110 tf - 315 tf

Double crank C Frame press machine is one of the normal press machine, also called a gap frame presses. Generally it's suitable for progressive die or single process for thin steel plate parts which is ...

Force: 200 tf - 600 tf
Stroke: 200 mm - 300 mm
Hydraulic pump power: 18.5 kW - 55 kW

... manufacturing processes, such as punching using a machine press or stamping press, blanking, embossing, bending, flanging, and coining. This could be a single stage operation where every stroke of the ...

Force: 100 kN - 1,000 kN
Stroke: 45 mm - 140 mm
Working speed: 25,000 mm/min

Deep throat press machine with cnc feeding table mechanical Deep-throat press machine Automatic Feeder Table For Punching machine , Scope, Specification and Standard ...

Force: 300 kN - 1,600 kN
Hydraulic pump power: 4.5 kW - 15 kW

Automatic Feeder Table For Punching machine , Scope, Specification and Standard feature This gantry type press machine is our new patent design . it can hold the big sheet metal like the sheet metal ...

Double point press machine for electric box making pressing machines Technical sheets Metal Box Stamping Machine line: Components for Automatic metal box production line: (1) One Decoiler (2) One leveling ...

Weight: 18 t
Overall length: 3,445 mm
Overall height: 3,000 mm

Excellent features of CNC Controlled Expanded Metal Machine: Auto Blade gap adjustment, German Made Roll Bearings and Crank Shaft, easy to operate, no waste production, high speed, high precision, varied patterns can ...

Force: 3 kN
Stroke: 100 mm
Weight: 18 kg

Servopress 3kN Compact Line Holding time with nominal force 4s Maximum speed 200mm/s Low speed 0.01mm/s Acceleration 5000mm/s2 Maximum load of tool 3kg Body 55x66mm extruded aluminum Driving Ball screw or Roller screw Rollvis ...

Force: 7.5, 3.5 kN
Stroke: 152 mm
Weight: 29 kg

Servopress 7.5kN Tolomatic Stroke 152mm Holding time with nominal force 4s Maximum speed 290mm/s Low Speed 0.01mm/s Acceleration 5000mm/s2 Maximum load of tools 30kg Body 83.5x83.5 Driving Roller screw Tolomatic Guide Linear ...

Force: 16 tf
Opening: 200 mm
Max. pressure: 0 bar - 250 bar

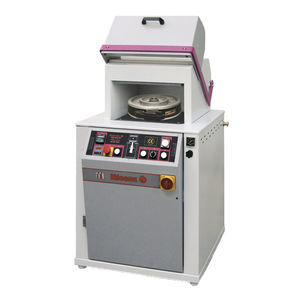

Press for the vulcanization of silicone rubber moulds of 300 mm in diameter with manual hydraulic pump. This machine is equipped with a timer for the programming of the vulcanizing cycle. Moreover, thanks to the thermostat ...

Force: 25 tf
Opening: 200 mm
Max. pressure: 0 bar - 250 bar

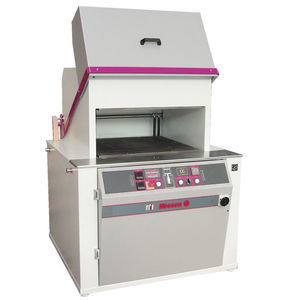

Press for the vulcanization of silicone rubber moulds with maximum diameter of 400 mm, automatic hydraulic pump and pressure stabilizer. This machine is equipped with a timer for the programming of the vulcanizing ...

Force: 80 tf
Opening: 290 mm
Max. pressure: 0 bar - 250 bar

Press for the vulcanization of silicone rubber moulds with maximum diameter of 700 mm, automatic hydraulic pump and pressure stabilizer. This machine is equipped with a timer for the programming of the vulcanizing ...

Force: 10,000 kN - 40,000 kN
Stroke: 2,000 mm
Max. pressure: 25 MPa

... productivity. ZHENGXI SMC BMC Hydraulic Press also called hydraulic composites molding press, it is applied in compression moulding of composites material such as SMC,BMC,FRP,GRP and so on. Our SMC ...

Force: 10 tf - 340 tf
Opening: 30 mm - 200 mm

Man machine interface (double CPU) » Work status clear display » Fault direct display » Maintenance instruction » Off the brake performance readout monitoring » Static SPM display » Function development strong support » Dead ...
