SMC pneumatic cylinders

Stroke : 5 mm - 100 mm

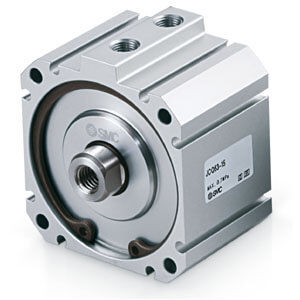

NC(D)Q2-Z, Compact Cylinder, Double Acting, Single Rod Standard double acting, single rod version of the NCQ2 compact cylinder. The NCQ2 is available in bore sizes from 12mm to 100mm. It comes standard ...

Stroke : 0.5 in - 12 in

NC(D)M, Stainless Steel Cylinder, Double Acting, Single Rod, Standard Standard double acting single rod version of our NCM stainless steel cylinders. A wear ring extends the seal life and a bronze rod ...

Stroke : 50 mm - 5,000 mm

... Rodless Cylinders can be used in a variety of ways. Direct mount type CY series can help in saving mounting space. Integrated guides can help in achieving required accuracy or allowable moment. SMC CY3B Magnetically ...

Stroke : 15 mm - 200 mm
Speed: 0.05 m/s - 0.75 m/s

Air Cylinder CJ2/CDJ2 ・Double foot and head flange have been added to the available mounting types. ・Easy fine adjustment of auto switch position ・The auto switch mounting type, band, or rail can ...

Stroke : 25 mm - 300 mm
Speed: 0.05 m/s - 0.5 m/s

Air Cylinder JCM/JCDM ・Overall length shortened by up to 97 mm ・Weight reduced by up to 54% (0.69 kg→0.32 kg) ・Various cover types are available. ・Port sizes: M5 and Rc1/8 ・Male and female rod ...

Stroke : 25 mm - 300 mm
Speed: 0.05 m/s - 0.75 m/s

Air Cylinder CM2/CDM2 ・Female rod end is available as standard. ・Easy fine adjustment of auto switch position ・Single clevis and trunnion pivot brackets are available. ・Part numbers with a rod end ...

Stroke : 25 mm - 300 mm
Speed: 0.05 m/s - 1 m/s

Air Cylinder CG1/CDG1 ・Female rod end is available as standard. ・Easy fine adjustment of auto switch position ・No trunnion mounting female thread has been added to the basic type. ・Part numbers ...

Stroke : 25 mm - 500 mm
Speed: 0.05 m/s - 0.5 m/s

Air Cylinder JMB(JMDB) ・Intermediary bore sizes: ø45, ø56, ø67, ø85 　Air saving, Space saving ・Overall length shortened by 27 mm ・Weight reduced by up to 36% (1.56 kg→1.00 kg) ・ ...

Stroke : 25 mm - 2,700 mm
Speed: 0.05 m/s - 1 m/s

Air Cylinder MB/MDB ・Weight has been reduced by changing the shape of the rod cover 　and head cover. Max. 10% lighter ・Part numbers with a rod end bracket and/or pivot bracket are available. 　(It ...

Stroke : 25 mm - 1,000 mm
Speed: 0.05 m/s - 1 m/s

Air Cylinder MB1/MDB1 ・Weight: 10% lighter (ø50-100 stroke) 　Weight has been reduced by changing the shape of the rod cover and head cover. ・Small auto switches can be mounted on 4 surfaces. ・Fastener ...

Stroke : 20 mm - 700 mm
Speed: 0.05 m/s - 0.5 m/s

Air Cylinder CA2/CDA2 ・Weight reduced by up to 15% ・Easy air cushion control ・Various switches, such as compact auto switches and magnetic field 　resistant auto switches, can be mounted. ・Part ...

Stroke : 5 mm - 50 mm
Speed: 0.05 m/s - 0.5 m/s

Compact Cylinder JCQ/JCDQ ・Compact: Overall length shortened by 6.5 mm, Width shortened by 6 mm, 　Height shortened by 4 mm ・Weight reduced by up to 45% (150 → 82 g) ・Volume reduced by up to 40% ・With auto switch ...

Stroke : 105 mm - 462 mm
Speed: 0.05 m/s - 0.5 m/s

Compact Cylinder with Linear Guide MXZ ・Compact Overall length: 49.5 mm, Width: 30 mm ・Design and assembly time is reduced due to integration of a linear guide to 　the cylinder. ・Lightweight workpieces ...

Stroke : 20 mm - 2,000 mm

ISO Cylinders CP96 •CP96-C, ISO 15552 Cylinder, Double Acting, Single/Double Rod with Air Cushion and bumper. •New types added: Standard for double rod, Non-rotating rod for double and single rod. •Rod ...

Stroke : 0 mm - 300 mm

... switches can be mounted. •Rubber bumper / Air cushion. •Many made to order available. C76 The C76 series air cylinders offer a simple, space saving design with high dimensional ...

Stroke : 0 mm - 1,500 mm

Round Body Repairable CG1-Z We are pleased to unveil the updated clean-profile, round air cylinder CG1-Z Series. This new series, with bores from 20 to 100m, offers enhanced auto switch mounting and ...

Stroke : 0 mm - 500 mm

... mounting configurations, cushion for noise damping, and lubrication optional. CS2 Series CS2 air cylinder is a double acting, non-lube air cylinder. Aluminum die-cast ...

Stroke : 5 mm - 15 mm

... double acting pin cylinders for clamping, pushing or stopping applications in their machines often have to juggle between the available components and the available space. But, thanks to the design engineers at SMC, world ...

Stroke : 25 mm - 1,500 mm
Speed: 0.05 m/s - 1 m/s

... water. CJ5 Series CJ5-S is a stainless steel cylinder, designed for use in environments with water spray (such as food processing machines). A special scraper (standard) prevents water from entering the cylinder. ...

Stroke : 10 mm - 400 mm

... or minimising plate displacement. MGPW At SMC we are always innovating and our latest guided cylinder the MGPW is no exception. This new wide guided cylinder has been designed to handle large work pieces ...

Stroke : 10 mm - 100 mm
Speed: 0.03 m/s - 0.8 m/s

Dual Rod JMGP •Dual rod cylinder with slide bearing. •Compact and Lightweight. •Bore sizes (mm): 12 ~ 100. •Strokes up to 200 mm. •Bumper cushion. •Piping is possible in 4 directions. •3 mounting options. CXS •Series ...

Stroke : 25 mm - 200 mm
Force: 29 N - 329 N
Speed: 0.05 m/s - 0.8 m/s

The MTS cylinder provides superior non-rotating accuracy and linear stability in a compact package. Traditional non-rotating cylinders typically can only hold position to within 0.5° and have inherent ...

Stroke : 100 mm - 5,000 mm
Speed: 0.1 m/s - 1.5 m/s
Torque: 1.2 Nm - 40 Nm

... lighter mechanically jointed rodless cylinder with improved auto switch mounting, we are pleased to unveil our new MY1B-Z Series. Up to 17% lighter than our existing rodless cylinder basic type, these ...
