Telefone de emergência call-box PoE KNPA800mini

Ethernetpara sistema de sonorizaçãocom luz piloto

Product

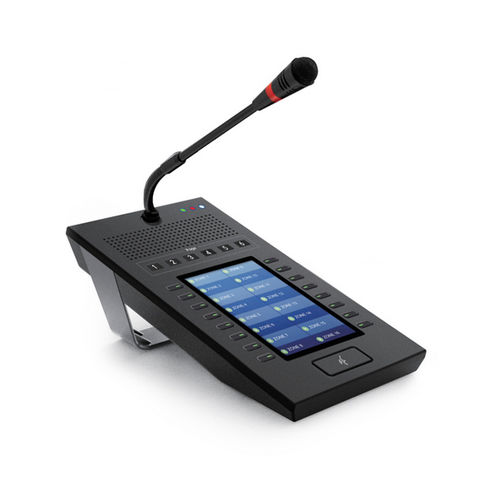

Paging Microphone / PA Call Station designed for professional public address applications.

Model & Physical
Model: KNPA800mini
Size: 150 (L) x 100 (W) x 76 (H) mm (excluding microphone)
Material: ABS (Acrylonitrile Butadiene Styrene)

Pdf

• KNPA800mini (product PDF available)

Key Functional Features & Benefits

• Purpose-Built Design: Exclusively engineered for professional PA applications; EN 54-16 and ISO 7240-16 certified; CE marked and RoHS compliant; designed for 24x7 operation with energy-saving standby features.
• User-Friendly Interface: 16(8*2) free-programmable buttons; 3.5-inch TFT display; clear power and communication status indicators; push-to-talk activation with visual confirmation; one emergency button with security cover; equipment supports 96 DSS keys (16*6 pages); integrated time-synchronization with GPS or local Observatory time servers.
• Superior Audio Management: Professional gooseneck unidirectional microphone; adjustable microphone sensitivity and volume control; 3.5mm jack for wireless microphone input; software-configurable parametric equalization and limiting; built-in configurable chime generator (single-tone, 2-tone, 4-tone); high-quality audio with frequency response 100 Hz - 20 kHz and signal-to-noise ratio ≥60 dB.
• Flexible Broadcasting Capabilities: Selective zone, group-zone and all-call paging; pre-recorded message distribution with zone targeting; live announcements with clarity; configurable emergency alert buzzer with adjustable volume and instant override; advanced scheduling options (specific dates, repeated daily/weekly/monthly); priority-based audio routing with emergency override.
• Enterprise-Grade Reliability: Power over Ethernet (PoE) operation; dual Ethernet ports for network redundancy; no external power supply required; supports remote monitoring with visual and aural output level indicators; extended connectivity with CAT5 (up to 100 m) and Fiber + Pair (up to 3 km).

Additional Visuals
Detailed pictures and application images available (product detail views, size diagram, specification diagram, system diagram).

caractéristiques / spécifications techniques

• Model: KNPA800mini
• Size: 150 x 100 x 76 mm (L x W x H) excluding microphone
• Material: ABS
• Display: 3.5-inch TFT
• Buttons: 16 free-programmable buttons (8*2); 1 emergency button with security cover; supports 96 DSS keys (16*6 pages)
• Microphone: Professional gooseneck unidirectional microphone; adjustable sensitivity and volume; 3.5 mm jack input
• Audio performance: Frequency response 100 Hz - 20 kHz; Signal-to-noise ratio ≥60 dB
• Chime: Built-in configurable chime generator (single-tone, 2-tone, 4-tone)
• Paging modes: Selective zone, group-zone, all-call, pre-recorded message distribution, live announcements
• Scheduling: Advanced scheduling for automated announcements (date-specific and repeated schedules)
• Priority & emergency: Priority-based routing with emergency override; configurable emergency buzzer with adjustable volume
• Network & connectivity: Power over Ethernet (PoE); Dual Ethernet ports for redundancy; CAT5 up to 100 m; Fiber + Pair up to 3 km; remote monitoring support
• Certifications & compliance: EN 54-16, ISO 7240-16, CE marked, RoHS compliant
• Pdf manual: KNPA800mini (product PDF available)
