Filtro de vapor de óleo 00 F series

de águade cartuchoem polipropileno

Product overview

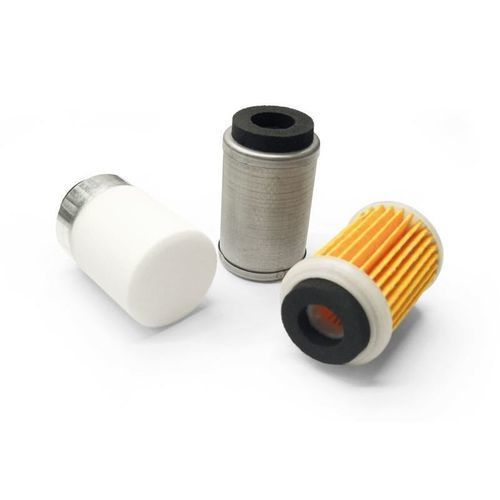

The cartridges illustrated and described below are manufactured from different materials and are used in in-line FCL, FPL and FIL filters. They include different filtration media and are fitted with compression sealing.

Available cartridge types

• 00FCL03 - Pleated paper filtering cartridge with compression sealing
• 00FPL01 - Polypropylene mesh filtering cartridge with compression sealing
• 00FIL01 - AISI 304 stainless steel mesh filtering cartridge with compression sealing

Usage notes
Given the pleated paper filter element, it is not recommended to use these filters in the presence of water and oil vapours or condensation.

Maintenance / inspection
The filters can be inspected by simply removing one of the two filter flanges.

Product codes / variants
Product code: 00FCL03 00FPL03 00FIL03

Caractéristiques / spécifications techniques

• Types de média: pleated paper, polypropylene mesh, AISI 304 stainless steel mesh
• Sealing: compression sealing
• Application: in-line filters (FCL, FPL, FIL)
• Limitation: pleated paper element not recommended with water, oil vapours or condensation
• Inspection: removable filter flanges allow visual inspection
• Documentation reference: Datasheet 5.03 (product literature available)
