How to choose this product

Angular contact ball bearings are particularly appropriate for applications involving both axial and radial loads. Their double row of balls makes them robust and able to withstand axial loads in both directions. They are suitable for a wide range of applications.

Applications

This is a multipurpose bearing, appropriate for use in any type of mechanical assembly and in a wide range of domains: textile machinery, reduction gears, X-ray equipment and machine tools, among others.

Technologies

Angular contact ball bearings are composed of two bearing races usually separated by two rows of balls held in place by a cage. The balls' contact points with the inner and outer race grooves are arranged obliquely to the axis. Each of the constituent elements can be made of different materials: ceramic, polymer or steel. They can be pre-lubricated, and with or without integrated seals.

Advantages

- Axial and radial loads
- Rolling velocity

Angular contact ball bearing for screw compressor L-PPS NSK Europe

These bearings include the L-PPS cage, which offer superior heat and wear resistance, high strength and chemical stability. This cage material, combined with an optimal...

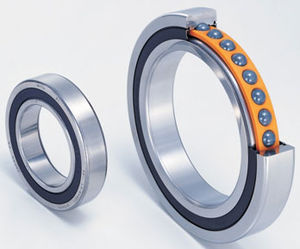

Super precision angular contact ball bearing for high speed ID: 6 - 120 mm | 719-70 E design SKF

The new SKF super-precision bearings in the 719 .. E (VEB) and 70 .. E (VEX) series are designed for very high operational speeds. They're characterized by high degree of stiffness, relatively high load carrying capacity, extended bearing service life, low heat generation and compact cross section. Compared to high-speed B design bearings, high-speed E design bearings have a higher speed capability...

Angular contact ball bearing ø 10 - 150 mm (0.3937" - 5.9055") | Fafnir® Series TIMKEN Europe

Timken® Fafnir® angular contact ball bearings are designed for combination radial and axial loading. Single-row bearings have high thrust capacity in one direction. Some single-row bearings are specifically designed for duplex...

Double row angular contact ball bearing NTN-SNR

Double-row angular contact ball bearings Thanks to the offset inner/outer ring raceways, dual-row angular contact ball bearings sustain high axial loads and mean radial loads. They sustain high speeds slightly inferior to those...

Super precision angular contact ball bearing for high speed KOYO

The angular contact ball bearing can accommodate radial load, unidirectional axial load or a combination of both. There are four different contact angles to choose from (15°, 20°, 30° and 40°). The greater the contact angle, the higher the axial rigidity. Smaller contact angles are more suitable for high-speed rotations. High ability angular contact ball bearings excel...

Double row angular contact ball bearing ID: 10 - 100 mm, OD : 30 - 190 mm Schaeffler Technologies AG & Co. KG

Double row angular contact ball bearings are units with solid inner and outer rings and ball and cage assemblies with polyamide, sheet steel or brass cages. They correspond in design to...

Angular contact ball bearing TIMKEN

Timken® angular contact ball bearings are designed for combination radial and axial...

Super precision angular contact ball bearing for high speed ID: 460 mm, OD: 600 mm | HYZF460 Luoyang Hongyuan Bearing Technology Co., Ltd

HYZF are low-friction, high accuracy for very high speeds, high axial and radial loads and high demands on tilting rigidity. These bearings are particularly suitable for precision applications involving combined loads....

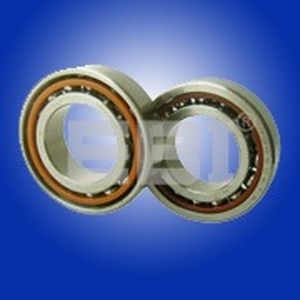

Angular contact ball bearing EBI Bearings

Brand Name: •EBI Angular Contact Bearings Country of Origin: •China (mainland) Key Specifications/Special Features: •7000-7040,...

Angular contact ball bearing WQK Bearing Manufacture Co., Ltd

Angular contact ball bearings have raceways in the inner and outer rings that are displaced with respect to each other in the direction of the bearing axis. This means that they are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads. The axial...

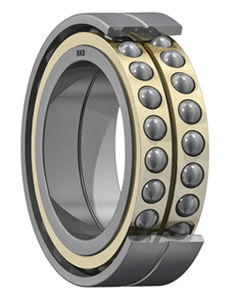

Double row angular contact ball bearing RKB Europe

RKB double row angular contact ball bearings are equivalent to two single row paired angular contact ball bearings in the arrangement back-to-back or face-to-face. So they can accept radial loads together with axial loads acting in both directions. The width is narrower...

Double row angular contact ball bearing ø 80 - 300 mm THB Bearings

THB double row angular contact ball bearings identified by a series designation are produced as standard with Normal axial internal clearance. They are...

Angular contact ball bearing ø 220 - 1750 mm Wafangdian Weiyuan Bearings Co.,Ltd.

Angular contact ball bearings can stand a combined radial and axial load simultaneously. Its axial...

Angular contact ball bearing RBC France

Angular contact ball bearing Michaud Chailly

Double row angular contact ball bearing CPM

Earthmovers - Double row angular contact ball bearing...

Double row angular contact ball bearing ID : 30 - 50 mm, OD : 60 - 139 mm | PAC A&S Fersa

The fundamental constructive characteristic of double row angular contact ball bearings is that the action line of the...

Angular contact ball bearing SLF Fraureuth

Single-row angular contact ball bearings are provided with raceways in the inner and outer ring which are offset to each other towards the bearing axis and accept axial forces only in one direction....

Angular contact ball bearing KINEX-KLF

The group of single row angular contact ball bearings comprises of bearings with contact angle α = 26° and α = 40° designed for standard seating and the high-precise...

Angular contact ball bearing wafangdian quanhua bearing manufacturing

Single-row angular contact ball bearing comprises an outer race, an inner race, a row of steel balls and a holder. This type of bearing can simultaneously subject to radial load and axial load. It can also be subject to pure axial load and operate in high-speed. Single-row...

Angular contact ball bearing ID : 150 - 750 mm, OD : 225 - 920 mm LUOYANG JINYUAN OUTSIZE BEARING CO.,LTD.

The limit speed of angular contact ball bearing is high, it can bear both radial and axial load,also can bear the pure axial load,its capacity of axial load is depended on its contact angle,and will increase with the contact angle��s increase.such...

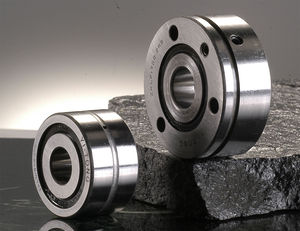

Double row angular contact ball bearing 0.91 - 126 kN | ZKLF series YITONG BEARING

Axial angular contact ball bearings, for screw mounting The complete units are consisted of a single-piece outer ring, a two-piece inner ring, balls, cage assemblies and seals. Bearings are double direction angular...

Double row angular contact ball bearing UKF

High Precision Spindle Bearings with Spacer Ball (rolling ball guidance) like Bearings of Type series 70, 72 and 73 (double row)....

Thin section angular contact ball bearing ø 1000" - 40000" | KXX series Kaydon

Kaydon's Reali-Slim® bearings offer a Thinfinite® variety of bearing solutions for even the most unique design challenges. Each Reali-Slim® ball bearing series is based on a single cross section which remains constant as the bore diameter is increased (in sharp contrast to standard bearings, in which the cross section...

Angular contact ball bearing NACHI EUROPE

The raceways of both the inner and outer rings of this bearing type are made with a set contact angle. These bearings are non-separable. Since the balls are inserted utilizing counter-bore construction, a larger number of balls can be installed than in the case of Deep...

Angular contact ball bearing ID : 150 - 380 mm, OD : 225 - 520 mm wafangdian guoli bearing manufacturing

Feature When the single-row angular contact ball bearing is carrying the radial load, they will be a component of force in the axial direction. Therefore it is suggested that two of there bearings...

Angular contact ball bearing KML Bearing and Equipment Limited

Angular contact ball bearings are particularly suitable for carrying combined (axial and radial) loads. Sometimes, they also can carry pure axial load and operate...

Double row angular contact ball bearing ID : 10 - 100 mm, OD : 30 - 190 mm, 3.9 - 212 kN AST Bearings

Double Row Angular Contact ball bearings have two rows of balls arranged back-to-back. The lines of action of the load at the contact between balls and raceways (load lines) diverge...
