This machine automatically un-cuffs a filled polybag in a box, clear of the case flaps, opens the side flaps and folds the polybag into a neat two-way fold within the dimensions of the case to protect the product.
|
|
|
|
|
|
BAG SEWING MACHINE / TACKER MACHINE
AUTOMATIC
Mod. CX 220 Easy ®
For Knitted fabric, cotton lycra, woven elastic fabric, wool and blended wool, basically any type of fabric.
FULLY CONTROL MAGMENT
Electronic adjustable during the work process:
- Stitch length: from 5 up to 10 mm
- Speed: from 6 up to 36 Mt/min
- Fabric tension and thrown of the point for an elastic seam
Automatic control system fabric hole and fabric end
Integrated system of
TWO AUTOMATIC-CENTRING DEVICES
for a continuous and real control
of the alignment of the selvedges.
NEW CONCEPT/DESIGN FOR PERFORM THE DOUBLING
Exclusive COMATEX PATENT: STITCHING DETECTING DEVICE
This unit guarantees a perfect closing of the bag, with automatic stop within 8/12 cm with or without the presence of the operator. The unit, constantly in touch with the stitches, allows the absolute guarantee of machine stop.
Exclusive COMATEX PATENT: SELVEDGES ALIGNEMENT DEVICE
Active control device, allows a constant adjustment of the selvedges in real time, with a perfect centring and alignment before the sewing phase. This unit allows an higher reliability and regularity of the process, less needle gap and better and regular unstitching.
MECHANICS AND ELECTRONICS QUALITY
Driver linked by PLC and operation panel.
High quality parts and easy availability.
All the parts manufactured by Comatex are standard made and modular.
Each single machine is tested with the fabric and the after sale service is properly guaranteed.
|
|

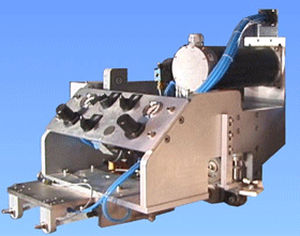

Clip unit CK 100
- Machinery or plant supplement
- Max. 100 Clips / min
Clip closure machine CAS 80
- Bag transport angular
- Max. 80 Clips / min
- Height clip position 160 to 410 mm
Clip closure machine CAV 50
- Bag transport vertical
- Max. 50 Clips / min
- Height clip position 170 bis 330 mm
Clip closure machine CAS 80
Features
- Heavy duty construction, stainless steel frame
- Good accessibility
- The clip head is low of maintenance
- There is a 100% control from the forming of the clip up to the closing around the frilled bag
- It is possible to do a non- stop operation when using two sided clip supply
- The clip supply is outside of the guarding
- The clip unit is on telescopic rails for service
- Servo driven, Control iSH Elau
|
|
Thimonnier offers a wide range of manual machines for sealing bags and pouches by thermal or pulse sealing or stitching.
Application fields are numerous:
food products,
hardware,
electronic parts,
chemical products,
carbon, gravel,
etc…
|
|
|
The Fischbein DFC-360 Double Fold Closer is specifically designed to close multi-wall paper bags up to 50kg where one external ply is separated before folding and glued separately. Ideal for packaging chemicals, food products, plastic resin, pet food, feed, seed, flour, salt, and fertilizers.
|
|
Fast, safe and easy to use. Fischbein bag sewing systems are setting the industry standard for quality, durability and cost effective bag sewing in the most demanding industrial environments. Our plain sew 400 models are available with a full range of options that make them the perfect closing solution for semi to fully automated bagging lines. This versatile, plain sewn closure is commonly used to close a variety of bags including multi-wall paper, woven polypropylene, fiber and jute.
Product Features Include:
Exclusive swing feature for easy access and threading
Compact portable pedestal design with full casters
Adjustable sewing line height from 30.5 to 56.5 inches
Variable set operating speeds
Air thread pusher to automate thread cutting
Variety of automated infeed systems
Bag coders
6 month factory warranty
|
|
|
|
|
|

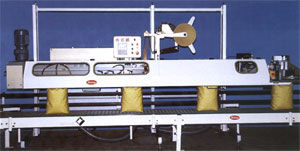

Meypack Series PT
The PT...series sack closing machines from MEYPACK offer a modular system for hermetically sealed closures on paper sacks with plastic inner liners or coatings. The PT-closure is a triple seal available in standard format or with an easy open feature.
With the traditional Standard closure (PT) the multi-layer outer is stitched, a heat sealed tape is applied over the stitch line and the PE inner liner is hermetically sealed. The tape prevents the ingress of insects and other forms of contamination.
With the easy open closure (PT-SOT, stitch over tape), the inner liner is hermetically sealed by heat and a crepe tape is applied over the sack top and stitched in position. The stitching can easily be removed by hand without the use of tools and without damage to the seal.
Dual machines offer the choice of standard or easy open closure on one machine frame. The unit is equipped with two sewing heads and two tape applicators, with one of each mounted at the infeed and discharge of the machine. Changing from one closure type to the other involves a simple adjustment and can be completed in a few minutes.
|
|
|
BC56 Tin-tie independent unit, which may be synchronised in-line with any packaging machine for fitting a reclosing tin-tie on the bag mouth, in addition to trimming and folding the bag top flap in many ways.
|
|

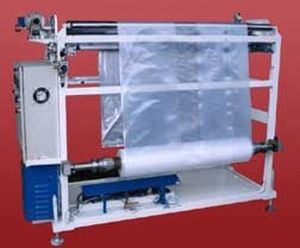

Liner Cutting & Sealing:
For cutting and sealing of jumbo bag liners.
Description
Nip Roller Provided
Nip Roller Drive 0.37 kw AC
Cutting Arrangement Pneumatic rodless cylinder with both side knife arrangement
Sealing Arrangement Both side double row sealing arrangement
PLC Provided
|
|
Thimonnier offers a wide range of manual machines for sealing bags and pouches by thermal or pulse sealing or stitching.
Application fields are numerous:
food products,
hardware,
electronic parts,
chemical products,
carbon, gravel,
etc…
|
|
Providing the Fischbein quality, durability and performance you have trusted for over a half-century, with new advanced features, the Fischbein F-Series is the most reliable portable bag closer you can buy. The F-Series quickly closes small to large multi-wall paper, woven polypropylene, mesh and jute bags. The F-Series unique design requires fewer adjustments and minimum maintenance, reducing your downtime and costs.
Product Features Include:
Improved lubrication system
Extended wear bushings
Longer life cam
Enhanced needle lever assembly
Durable non-corrosive epoxy paint finish
Operates up to 1800 stitches per minute
6 Month Factory Warranty
Model Options Available
115-220V
12 VDC
Pneumatic
Crepe Tape
Envelope/Pouch Closer
Horizontal closer
Textile
Heavy-Duty
|
|
