CNC Tools

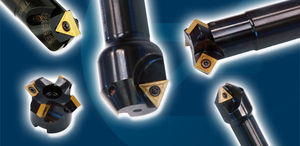

Boring and Chamfering Tools, Counterbores “mono”, Counterbore “multi”. 2-edge Chamfer Tool 2x45° and Chamfer and Face Milling Tool
|
|
SNAP is a single bladed tool for deburring and chamfering the front and back of a through hole in one operation.
SIMPLE - the easy to use tool requires no tools and no adjustments. Changing the blade is as easy as pushing out the old and putting in a new blade.
FAST - the patented cutting geometry was developed for excellent finish at faster cutting conditions and eliminating secondary burrs. The 'GS' and 'DF' geometries allow for general or precision chamfering with the swap of an insert.
ECONOMICAL - users have reported tool life over 40K holes in aluminum, 30K holes in cast iron, and 8K holes in steel.
Available from stock from 5mm-25mm (0.197�-0.984�)
|
|

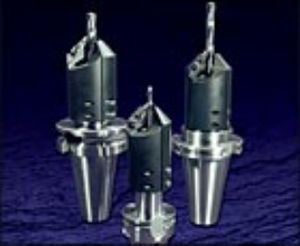

The COMBI tool combines drilling with back chamfering into a single tool. Save time, money and space on your machining center with a combination tool.
Combine operations by adding patented chamfering systems to existing operations.
Reduce tool changes and cycle times to boost production.
Custom made tooling for boring, drilling, and countersinking with deburring.
From 9.5mm to 35mm.
|
|

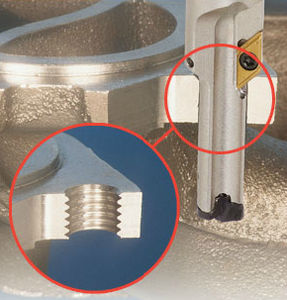

The Mini Chamfer tools are -
* Optimal for deburring and back chamfering.
* Double side cutting
* Spiral flutes allow smooth cutting action.
The tools are offered in Carmex advanced MT8 Carbide Grade, a Sub Micron grade with Aluminium Titanium Nitride (AlTiN) multi-layer coating (ISO K10 - K20).
This grade delivers Extremely high heat resistant and smooth cutting operation, for high performance, and normal machining conditions. General purpose for all materials.
|
|

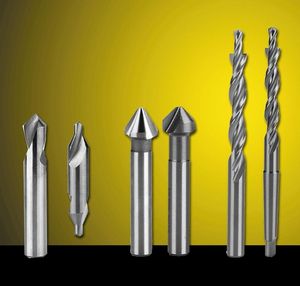

Centerdrills
Countersinks
Combined Drill & Countersink
Counter Bores
Hey Drills
Spotting Drills
Chamfer Drills
It provides a wide array of center drills and custom cutting tools.
|
|
| ... products without technical information |
| |
| ... products without technical information |
| |
Portable pipe cold beveling machines available for tube sizes 1/2" - 35" (12mm - 900mm) with pneumatic or electric or hydraulic motor.
Any bevel shape is achievable.
Special 100% automatic dedicated models GBC MINI AUTOMATICA and GBC BOILER 1-4 AUTOMATIC for heat exchangers, boilers, condensers industry. Indicated for following operations
- tube trimming
- tube weld removal for retubing
- welding preparation of tube and tube plate
All units up to max size 8" are available with automatic pneumatic locking device for quick set up operation.
|
|
|
|
|
|
Pipe Cutting and Beveling Machines with automatic feed module AVM.
A new highlight in the GF-Series of Orbitalum Tools!
The new GF machine for cutting and beveling of high, low and unalloyed metal pipes has demonstrated convincing operational results with large pipe diameters and safe and ergonomic serviceability.
A strong machine for demanding applications!
Advantages:
• For cutting pipes with ODs between 283 - 508 mm (11.14 - 20 inch) and pipe wall thicknesses of up to 15 mm (0.59 inch)
• Right-angled cutting without misalignment
• Burr-free and cold operating process
• Unique automatic process by the AVM feed module thus ensuring constant cutting
• Including a height-adjustable and robust lifting bench with a container for swarf collection
• The ergonomically designed handle enables a safer operating position; and cutting elbows is made possible without any further adjustments
• Multifunctional wrench for all setups on the machine
• Sturdy design with powerful drive
• High rotational moment for optimal cutting and beveling processes
• Optimal speed range of 50 - 163 rpm, ideal for cutting high-performance materials (Hastelloy, P91, etc.)
• Plug connection with quick-action coupling: for easy and comfortable replacement of the power cable.
• Optimized saw blade guard protects the user against flying chips
Your benefits:
• Reduced tooling and production costs
• An even higher operating life of the tools is guaranteed by the continual cooling system (available as special accessory)
• High operating efficiency
|
|
|
|
|
|
Having set the benchmark for pipe cutting and beveling machines for over 40 years, our new range of machines takes us even further forward. The new GF 4, GF 4 AVM, GF 4 MVM are now available!
Your benefits:
- Square, burr-free and deformation-free pipe end
- cold machining process, cutting in seconds
- Simultaneous or seperate cutting and beveling
- Cost-effective, increasing productivity
- Even longer tool life
What´s new?
- Optional feed module AVM or MVM for an automated or manual cutting process
- Locking mechanism prevents unauthorized usage and theft
- Weight reduction for ease of movement
- A new ergonomically-designed motor handle for a safer and more comfortable operating position, which also enables easier cutting of elbows
- Integrated laser pointer to determine the cut-off point
- 2 position aluminum clamping jaws to reduce chatter and enable smaller length of pipe to be machined
- 1 multifunctional tool for all adjustments on the machine
- Extended speed range (65-125 rpm), ideal for the cutting of high-perfomance materials (Haselloy, P91, etc.)
- Swivel cable with a quick-disconnect coupler for easy and quick replacement of power cables
- The new saw blade guard protects against flying chips and comes with a measuring port
|
|
Plate cold beveling machine GBC CHALLENGE suitable for beveling of large steel plates as well as small strips.
Completely automatic and 100% silenced, do not need any operator involvment (except control) during duty cycle.
Once positioned on plate the machine is self propelling, traveling along the plate edge automatically, carrying out the required bevel operation.
Engineered with varialble angle head it is capable of bevels from 22,5 deg. to 55 deg. without any additional optional equipment.
|
|
|
|
