PALLET FOR MACHINING CENTRE
ORIGINAL GERARDI PALLETS TO FIT 100% MAKINO,MAZAK,MORI SEIKI,OKUMA,MACHINES.
Solid cast iron cast G30 with double stress relieving heat treatment.Highest accuracy.
Inspection with 3D measuring machines.
AVAILABLE TYPES
Art.85
Grid pallet type with solid threads M16
Art.86
H7 t-slot pallet
AVAILABLE DIMENSIONS
400X400/ 500X500 / 630x630 / 800X800
Price all inclusive.
All accessories are supplied completely hardned and ground HRC 60.
|
|
VISE PALLET
Reduce set up times and increase production on those small production jobs. The pallets can be reused for those repeat jobs.
-Now you can run those fixture jobs without removing your vises.
-These Vise Pallets are designed to fit in all 150 mm vises.
-The Blank Pallets are ideal for multiple small parts using the Mitee-Bite Fixture Clamps or Uniforce Clamps.
-The T-Slot Pallets can be used with our T-Slot Clamps or the versatile 10 mm Riser Kit (#51088) for non-dedicated applications.
-The Vise Pallets are qualified in 2 places so they can rest on parallels or on top of the jaws.
|
|
Bock Locator Plates and Bock DEXLOC Double Expanding Locator
Pins serve as the foundation of your quick change workholding system. Whether using vises, modular components, or other fixturing, the Bock Locator System works well with all workholding systems.
- Repeat setups to within +/- .001"
- Locator Plates are available in a wide array of sizes, both in inch and metric dimensions.
- Bock Locator Plates are made of hard coated aluminum for a durable surface
- Alpha-numeric coded holes for an accurate and repeatable baseline reference
- Every hole precision bored to fit Bock DexLoc locating pins and threaded through for maximum versatility
- Brass protection plugs included for every hole
- Eliminate time consuming "dialing in" for every setup
|
|

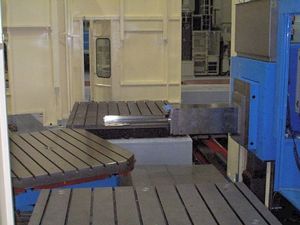

Table and pallets
Every possibilities for clamping and machining of your workpieces
- Hydrostatic guideways for large heavy duty tables
- High positional accuracy
- High stiffness
- Double protection for V axis for large tables
|
|
From small to large
For every size of pallet there is a “recommended” maximum workpiece size.
However, this should only be regarded as a guide, since the size of the workpiece relative to the pallet depends above all on the material and the type of machining.
|
|
OK-VISE rotary columns are made of aluminium and they come with steel made corner clamps. They work as a trunion unit between indexer and a tail support. This new system makes efficient use of machinable area a reality, ultimately leading to savings in tool changes, less operator interventions and extended cycle times. Most important feature is a possibility to use subplates resulting to a remarkable cut down in machine stop times which is critical especially in the vertical machining centers.
Parts fixturing probably represents the best value in today´s metalworking technology, if you calculate the cost of a CNC machine tool, the cutting tools, tool-holders and tool-changer with both the programming and the design software and compare these investments to the cost of your workholding equipment. Fixturing normally costs only a fraction of the amount the others cost. Yet, the potential for time savings and process improvements offered by a good fixturing solution are substantial.
|
|

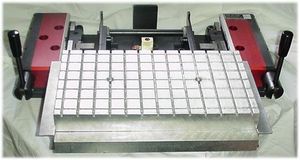

Manual Pallet Changers
- Maximize productivity with minimial spindle downtime and faster cycle times
- Fast & accurate operation
- Repeatability of +/- .0001
- Intergrated Clamping System features machinable jaws
- Simple to off-line load or on-machine load workpieces
- Pallets available in three styles: Plain, Vacuum Chuck, or Integrated Clamping System
- Easy to operate
|
|
