TURBOSOFT NT:
Powerful CAM System for the CNC programming of 5- & 6-axis milling applications on turbine blades, blisks, impellers and extruders.
- Airfoil specific geometry elements
- Roughing and finishing strategies directly applicable on geometry elements
- Automatic elimination of turbine blade specific critical milling operations such as hearts, flanks, platforms, plunging etc.
- Integrated Postprocessor with application specific cutting path optimization
- Automatic continous blank size adaption
- Operating System Windows NT
- Adaptive Milling & custom functions optional
TURBOSOFT plus:
Specialized CAM System for the CNC programming of 5-axis milling applications on airfoils.
- Airfoil specific geometry elements
- Roughing and finishing strategies directly applicable on geometry elements
- Automatic elimination of turbine blade specific critical milling operations such as hearts, flanks, platforms, plunging etc.
- Integrated Postprocessor with application specific cutting path optimization
- Automatic continous blank size adaption
|
|
|

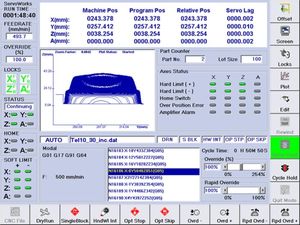

MDSI's feature product, OpenCNC® software, is a production-proven, unbundled, software CNC control built on an open architecture. Open architecture enables manufacturers to integrate off-the-shelf hardware and software technologies to achieve flexible and agile world-class manufacturing. Unlike proprietary CNC controls, OpenCNC requires no proprietary hardware or motion control cards. Combining a soft CNC and soft PLC in a single application, OpenCNC is well suited for new equipment as well as machine control replacements.
|
|
|
|
|
|
SICAM Jump [CUT]®
DESCRIPTION

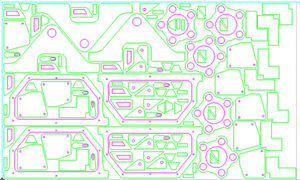

A programming system for cutting sheet metal.
An integrated system for the two-dimensional design of articles, managing the article library, and performing manual, semiautomatic and automatic nesting operations.
Cutting technology for laser, plasma, oxygen lance and water jet machines with automatic technological parameter, cutting line and work rule management for all the different kinds of technology specified.
Design exchange interface from/to other Cad packages.
FEATURES
SICAM Jump [CUT] consists of the following modules:
- two-dimensional design
- DXF interface (reading and writing)
- DWG interface (reading and writing)
- automatic, manual and interactive nesting
- automatic and manual technology
- automatic common cutting
- automatic and manual micro-joint operation
- bridge operation
- multi-head machine operation with automatic packing
- cutting parameter tables
- editing at any time during programming
- piece library
- metal sheet library
- job library
- warehouse management (with bar code reading option)
- management of metal sheets of any size
- order management
- personalized print layouts
|
|
OFFLINE INTEGRATION FOR LASER CUTTING
CADMAN-L 3D provides fully automatic, semi-automatic or manual offline programming including nesting, optimization of cutting and machine parameters. This software allows the user to configure the type and value lead-in/lead-out for different contours depending on the material and thickness to be processed.
Flexible lead-in/lead-outs
Automatic selection from various types of micro-joints
Advanced common line cutting
Collision avoidance and automatic cutting sequence
Skeleton cutting and utilization of sheet remnants
Complete flexibility to manually or semi-automatically cut and nest laser parts
Automatic time and cost reporting
|
|
OFFLINE INTEGRATION FOR PUNCHING
CADMAN-P 3D offers a range of sophisticated functions for programming CNC turret punch presses. Punch sequencing and tool selection automaticallly consider turret configuration, stations sizes and features to optimize the punching process. CADMAN-P 3D provides full support for all standard and advanced punching functions, including Multi-Tools, standard and special punches and tools for forming, embossing, tapping, stamping and rolling.
Automatic punch selection, assignment and turret loading
Optimization of tool changes and punch sequencing
Complete support for complex punching
Powerful database control of punches and dies, Multi-Tools and turrets
Extensive parametric punch and die library
Common and non-common line punching
Automatic sheet repositioning
Automatic time and cost reporting
|
|
|
|
|
|
ARIANNA CNC supplied by Ficep represents the ultimate innovation among the control units for CNC machines used on simple 2 controlled axis machines up to more than 40 controlled axis machines.
ARIANNA is an extremely easy and intuitive software, thanks to the user-friendliness of Windows and to the graphics which has been dedicated exclusively for the steel construction, ARIANNA can be easily used even by inexperienced users.
The set-up through visual windows is really effective and errorproof.
The programming of nesting and multing for drilled plates and for steel construction beams is extremely simple and intelligible.
The M.M.I (Man Machine Interface) ARIANNA is the same on all Ficep CNC machines, this enables operators and maintenance people of a steel construction workshop where machines of different type are installed, to understand the use and programming independently from the typology of the machines.
Moreover it is understood that ARIANNA can be interfaced with the most modern CAD systems (Structural Steel CAD 3D) for the steel construction industry, such as BOCAD, X-STEEL, STRUCAD, SCIA, DESIGNDATA, PROSTEEL, etc.
Furthermore, thanks to the CAM (Computer Aided Manufacturing) and MIS (ultimate Management Information System for steelwork fabricators) software packages supplied by our sister-company STEEL PROJECTS, the software ARIANNA can be interfaced with CAD such as AUTOCAD importing formats like DXF and DWG, apart from the most recognized format DSTV (Deutscher Stahlbau-Verband).
|
|
Features
- User Interface
Genesis uses the same user interface as other Radan 08 products. The screen below shows the interface and a typical sheet layout for the current part.
- Output
Machine set-up, tooling lists, nest graphics, part identification and most importantly the machine program are all automatically produced directly from the nest schedule.
- Automatic Nest Schedule
Automatic program creation following input into the nest schedule of part number / kit number, quantity required and priority to determine which components are the most urgent.
- Manual 'bump' nesting
The 'bump nesting module allows parts to be placed onto the sheet from a nesting schedule. Parts always jump to position nearest the cursor. Moving the cursor causes the parts to track around the shape of parts already on the sheet until the desired position is selected.
- Data Translation Wizard
The Data Translation Wizard automatically translates single or multiple DXF and DWG formats.
|
|
Radpunch brings advanced punch press CNC programming to the Radan family. Combining sophisticated technology with unrivalled ease-of-use, Radpunch delivers maximum productivity for your engineering staff and machine tools.
Radpunch supports most machine tools available worldwide today and integrates seamlessly with Radprofile to provide a comprehensive solution for combination machines such as punch/laser or punch/plasma.
Now Radpunch is even easier to use than ever. The revised user interface and graphics display simplifies operation and enhancements to the manufacturing database means that more information about your production processes is captured by the system for use in future programs.
|
|
| ... products without technical information |
| |
Full 2-Axis Programming
GibbsCAM Production Turning provides a full range of functionality for defining processes for efficiently machining 2-axis parts from wireframe geometry.
Graphical Tool Definition
GibbsCAM Production Turning's graphical user interface to define tools shows the user key dimensions to allow easy and error free tooling creation. The system supports wide variety of predefined tool types as well as user-defined form tools.
Start/End Point Control
With GibbsCAM Production Turning you have complete control over where you initially position the tool to start machining to where you finish machining. Approach extensions are automatically generated if the tool is started off the machined profile.
|
|
GibbsCAM Machine Simulation
An extension to GibbsCAM’s integrated Cut Part Rendering visualization/verification capability, Machine Simulation uses animated machine tool models to identify any program errors before they cause costly mistakes on the shop floor.
|
|

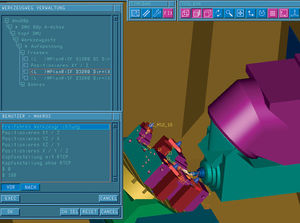

Eureka performs a complete 3D-simulation of machine tools through a simple and intuitive graphical interface and starting from the G-code.
Eureka helps to avoid risks of damaging expensive work pieces, breaking tools and fixtures or even crashing a CNC machine because of some programming error.
Thanks to the possibility of customizations at any level many important manufactures turned on Eureka as their own verification software and as a solution for their customers.
Eureka supports any machine and any controller on the market like: Heidenhain, Fanuc, Siemens, Num, OSAI, Z32, Heller. Other controller can be easily integrated on demand.
|
|
axis machining has traditionally been regarded as advanced technology best suited to the aerospace and automotive industry. 5 axis machining offers many advantages, all of which are now being applied to the mould and die sector. VISI Machining provides the operator with a productive solution for creating highly efficient toolpaths with advanced collision control for the most complex 3D data.
|
|
|
|
|
|
PartMaker CAM Software for CNC Lathes uses visual representation of turning operations and cutting tool parameters to assure quicker learning. The task of lathe programming is made so simple that even novices can produce good programs in a matter of minutes. Once the desired operation is selected, a graphical representation of the tool motion and material removal is shown.
With every new selection, the picture changes to show exactly how the operation will be performed. The parameters of each operation, such as finish allowances, depth of cut and clearances, are clearly displayed on the picture making entry of these parameters very easy
Key Features
Pictoral explanation simplifies parameter entry
Context sensitive help on hand
Tools Data Base stores inserts' and holders' parameters
Tool paths for turning, contouring, threading and grooving are calculated and displayed
Automatic undercuts detection
User defined hole making cycles support drilling, tapping and reaming
Materials library information files easily modified to meet shop practices
Optimum feeds, speeds, gear ranges and cycle times automatically applied
Allows easy change between machine specific canned cycle and "long hand" G-code output
3D Solid Modeling Verifier simulates machining and material removal
Bi-directional DXF interface allows data exchange with CAD systems
Post Processor Library contains sample Post Configuration Files to support a vast array of machine types an controls
Configurable Post Processor utility allows for easy customization of machines hardware features such as bar feeders, pullers and other machine specific programmable features
|
|
|
|
|
|
SPRIT SolidTurn® CAM Software
Full Programming for Traditional and Multi-axis Turning
Traditional turning centers are being rapidly supplemented by multi-axis machines with the ability to produce complex parts unattended. Whether you are looking for a CAM system to automate your traditional turning "from roughing and grooving to threading and finishing" for faster, more accurate results, or to maximize your multi-axis machine tool investment, ESPRIT is the right CAM choice.
Swiss-style Machine Programming
Program your multi-axis Swiss-style turning centers with ESPRIT and realize their potential for single set-up, versatile, accurate, unattended machining. ESPRIT accommodates the special demands of your Swiss machines and makes it easy to create programs that take full advantage of Swiss-style capabilities with comprehensive tool path creation, simulation, collision detection, and accurate G-code generation. ESPRIT provides factory-certified programming solutions for Swiss-style machines from the leading builders including: Citizen, Star, and Tsugami.
Multi-Turret, Multi-Spindle Production Turning
Gain full control over your production turning with ESPRIT’s program synchronization, dynamic simulation, and accurate collision detection. You’ll be empowered to work simultaneously on the front and/or back of the work piece with one, two or more cutting tools.
|
|
|
|
|
|
"For Mid/High Range CNC Automatic Lathes User..."
This will powerfully support your advanced machining data programming.
Star CAM System
• Comfortable, easy-to-learn and easy-to-use.
Closely follows the Windows GUI standard
It is simply operated in dialogic operation. Easy machining setteing, such as machining path pattern, and approach, return.
Data base utilization/
ISO/ANSI tool, and automatic lathes, tool material property data base loading(cutting condition etc.)
• Simulation (Verification)
Dynamic Visualization/
The real cut simulation by 3 dimensional models
Interference check functional loading (a tool / tip holder / cut material)
The tool path calculation of real time/
A tool path calculation of in accelerated by the high-speed operation.
• A convenient data input and output
Reads any all major CAD data files/
IGES, SAT, DXF, SolidWorks, Solid Edge etc
Data Output/
The optimum NC code for a star's machine
The machining sheet to Excel
• Simple 2D and 3D CAD function
2-dimensional-CAD and 3-dimensional-CAD function
• Knowledge Base Machining
Libraries for your tools and processes
Databases for your materials, speeds and feeds
Customize is possible at VBA usage
|
|
