Rockline® RBP1 Belt Positioner
The Rockline® RBP1 Belt Positioner™ is the simple, reliable solution for problem belts that continuously mistrack to one side of the conveyor. The Belt Positioner works on the return side belt using simple angled rollers mounted in a fixed position to quickly and continuously funnel the belt into the correct path.
The RBP1 Belt Positioner’s innovative design does not rely on a pivoting mechanism to move and steer a wandering belt like conventional tracking units. The RBP1’s two idler rollers are adjusted to the belt and create a funneling action that continuously "positions" the belt into the correct path. Many times in as few as 5 revolutions of the belt the results can be seen. Plus, the idler rollers on the RBP1 make smooth contact with the return side belt’s bottom cover and not on the belt’s edges which can cause excessive wear and damage to the belt.
Installed before the tail pulley, the Belt Positioner keeps the belt centered at its critical loading point. The RBP1 can also be used at the head pulley, before or after the take-up pulley or anywhere on the return beltline where there is a belt tracking problem. It can also be used on reversing belts.
The RBP1 Belt Positioner comes assembled and ready to install. Simply preset the unit for the conveyor structure width, position the unit on the belt and bolt or weld in place. Adjust the rollers to the belt and watch the results.
|
|
|
|
|
|

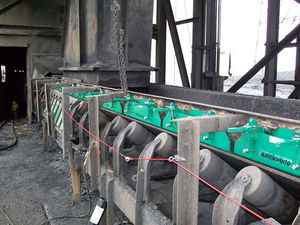

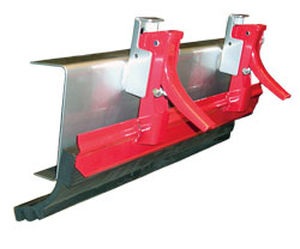

Rockline® RMC1 Skirt Clamps provide the cost-effective solution to material spillage problems in your conveyor loading zones. A good material containment system at the loading point reduces conveyor problems and saves cleanup costs. It stops material loss, eliminates safety hazards and reduces wear and premature failure of conveyor components. RMC1 Skirt Clamps are designed for easy installation, quick maintenance and years of service.
RMC1 Skirt Clamps come in a standard 4" (1200mm) length. An optional "Limited Space" (LS) model is available for tight chute configurations or for portable equipment. Also offered is a "Pick-A-Length" (PAL PAK) option for longer length or special length requirements. The RMC1 handles a variety of skirt rubber sizes. It can also be used with a range of skirt rubber thicknesses from 5/16" (8mm) to 3/4" (19mm).
The RMC1 features a no-hassle installation with few parts. First the clamp pins are positioned on the conveyor's skirt board and welded into place. Then the clamp plates are hung on the pins and the clamp bar and the skirt rubber are inserted. And finally, the clamp bar is tack welded to the plates.
All installation and maintenance work can be done safely from the sides of the conveyor. Just tap loose the locking wedges on the clamp pins, reposition the skirt rubber and relock the pins. The rest of the parts interlock so when the pins are unlocked, they remain in place supporting the skirt rubber while maintenance is completed.
|
|
