Diverter

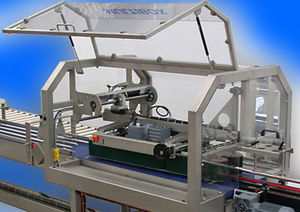

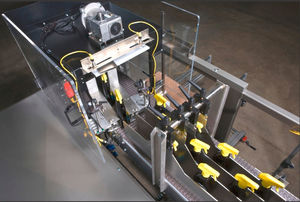

With speed up to 330 feet per minute, the OYSTAR Jones Diverter offers a solution to your packaging needs. The Diverter has 2 and 3 way diversion and an integral photo eye that tracks packages and detects jams. Pneumatic switch gates with proximity sensors guarantee rapid and accurate switching.
The OYSTAR Jones Diverter is built with interlocked guarding for maximum safety. The nickel-plated design means no painting and the stainless steel laser-cut cam tracks resist corrosion for your custom packaging solutions. The Diverter has an optional conveyer, which minimizes transition points.
|
|

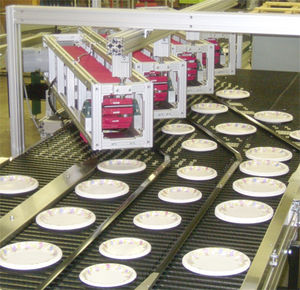

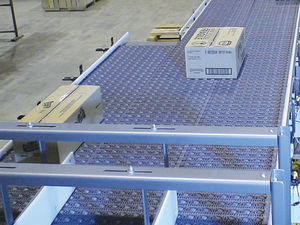

Container Diverter
- Converts single infeed to multiple outfeed lanes.
- Provides even balanced outfeed to each lane.
- Accommodates most round, square or rectangular containers..
- Automatically adjusts to different container sizes.
- VFD driven to provide long equipment life.
- Can serve as empty container infeed, or full container outfeed accumulation
|
|

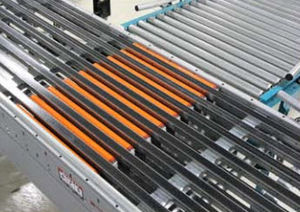

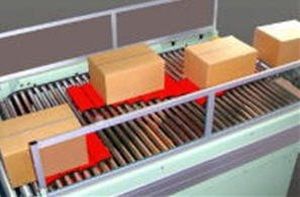

Logistex DV200 Diverter
Modular, high-speed diverter designed for maximum system flexibility
Features:
- Maintains travel orientation when diverting product
- Pneumatic or electric actuation options
- Available in 30- or 45-degree divert angle options
- Integrates with Logistex MR200, NB200, and MB200 conveyors
Benefits:
- Reliable bidirectional diverting at rates over 100 cpm
- Significantly reduces maintenance time
- Logistex ZC200 zone control provides standalone control, parent-level supervision, and reporting
|
|
- Ideal for shipping, receiving, and/or zone routing operations with a medium rate requirement. Or when diverse live roller applications are needed in a small area.
- Can accomplish rates up to 60 cartons per minute.
- Handles a wide variety of conveyables up 100 lbs., depending on line shaft conveyor speed.
- Diverts at an angle of 30° powered or non-powered takeaway conveyor.
- The line sorter reduces costs without sacrificing performance, due to a power sharing design.
- Available in various configurations that can easily adapt as the system needs change.
- Designed to be used with Automotion's line shaft conveyor.
|
|

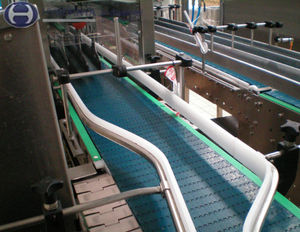

These handling systems divide the products.
The products, stable or unstable, can be handled at low or high speed (more than 100m/min).
The main applications are :
- Sorting :
This can be done automatically depending on the size, the colour, the weight, the bar code,…
- Ejection :
Rejection
The same type of machine can reject without damage, a non standard product.
-Balancing :
When the products arrive randomly at the infeed of the divider on one or more lanes, the same number of products can be directed to each outfeed lane.
|
|

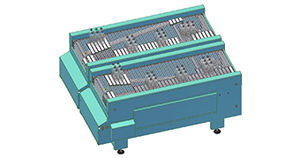

The plate divider is used for dividing the packs coming out of the automatic packaging machines, in order to lane them into several rows by means of a translation device, with a maximum output of 80 packs per minute. SMI offers compact, flexible systems for dividing and laning bundles and containers of noncylindrical shape.
Reliability and duration
SMI dividers are made of top-quality materials, ensuring operating reliability and long-term duration. The use of wear-resistant components minimizes the maintenance and cleaning operations, thus reducing the total operating costs.
|
|
High speed sorting for cases
Okura Multi-lane Diverter sorts cases into two lines at high speed with urethane sliding slats to achieve very soft conveyance.
|
|
| ... products without technical information |
| |
|

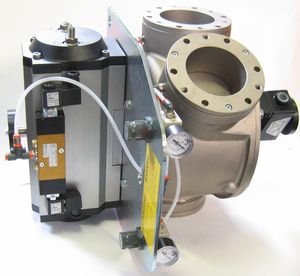

Gericke offers a comprehensive range of different diverter valves for pneumatic conveying systems. Starting with simple flat diverter valves, Gericke offers for dense phase conveying systems plug diverter valves and for hygienic applications pipe selector diverter valves type PS. The PS valve is suitable for a wide range of materials and all types of pneumatic conveying systems up to 4 barg. FDA approved materials to meet stringent hygiene requirements. Fast clean version to allow frequent and safe disassembly, gas tight seal which remain inflated even during change along. This valve is suitable for both diverting and converting modes.
|
|
Fills hoppers via cyclonic separation in the inlet load tube and
exhausting air in the outlet tube.
Valves can be stacked on top of each other allowing multiple sources to multiple hoppers.
Standard Features
- Stainless steel material contact points.
- Lightweight aluminum frame, corrosion resistant.
- Positive blade lock (PBL) between blade and cylinder rod.
- Active compression seals (ACS).
- Internal magnetic piston cushioned air cylinder.
- Stacking design for multiple conveying lines.
- Rated for 82oC (180oF).
|
|
90° Diverter
Series 229 & 237
Compact, Abrasion Resistant
The Dynamic Air 90° Diverter is a reliable, low cost, compact and simple design of heavy duty construction. A positive rubber-to-rubber seal is created by the internal flapper which presses against the unused port. The seal improves as the conveying pressure increases, ensuring better performance against leakage in even the most severe dry bulk solids applications.
Features
Abrasion resistant
Positive sealing to 100 PSIG
Full port design
Economical
Compact, low profile
Low maintenance
Position sensors standard
|
|
Features:
- Seal rings at each port
- Full round port pass way design
- Heavy duty body design for pressure surges up to 90psi (6.0bar)
- Manual or pneumatic operated
- Heavy duty pneumatic actuator with integrated mechanical stops
Application:
- Suitable for granular and pellets
- For distributing or merging of product flow
- For differential pressure up to 60psi ( 4.0 bar)
|
|
|
|
|
|
The V-Diverter valve is used especially for diverting the bulk material flow in pneumatic dense- and dilutephase conveying systems.
The patented design of the plug enables application in any conveying direction.
Design characteristics
- suitable for pneumatic dense- and dilute-phase conveying systems
- smooth and gap-free transition due to patented design of inlet and outlet
- single channel design avoids plugging
- high dust and pressure tightness due to sealing pressing against the housing
- pressure tight from -1.0 to +6.0 bar (g) gauge to the outside and the non activated leg
- high reliability based on maintenance-free actuator
- solid temperature range from -20 to +120°C and ambient temperature range -20 to +40°C for standard design
- no additional safety device necessary as there are no moving parts outside the valve
- easy installation in all orientations because of integrated cast flanges and supports
- easy subsequent change of complete drive from left to right side of diverter valve
- easily visible direction indicator of plug orientation
- direct control of plug orientation by proximity switches
- all bolts in stainless steel
- low total weight
- defection angle 45°
|
|
Bulk flow has to be distributed an collected. For that diverter valves with the highest demand on functionality and operational safety are used. For product pureness deposit-free and CIP capable diverter valves are indispensable.
Their maintenance-free operation is a deciding factor for the profitability of the plant. Diverter valves from Coperion Waeschle fulfil these numerous requirements even at high pressure and temperature ranges.
|
|
|
|
|
|
The M-Diverter valve is used especially as a distributor of bulk materials.
The geometric design of the plug enables application in any conveying direction diverting or merging of the material flow from four lines to one or reversible.
Design characteristics
- suitable for pneumatic dense- and dilute-phase conveying systems
- smooth and gap-free transition due to patented design of inlet and outlet
- single channel design avoids plugging
- high dust and pressure tightness due to sealing pressing against the housing
- pressure tight from -1.0 to +6.0 bar (g) gauge to the outside and the non activated leg
- high reliability based on maintenance-free actuator solid temperature range from -20 to +120°C and ambient temperature range -20 to +40°C for standard design
- no additional safety device necessary as there are no moving parts outside the valve
- easy installation in all orientations because of integrated cast flanges and supports
- flanges easy accessible; no special connections required
- easily visible direction indicator of plug orientation
- direct control of plug orientation by proximity switches
- all bolts in stainless steel
- low total weight
- standard design with electrical connections in IP 65
- defection angle 4 x 45°
|
|
Standard Features
- Stainless steel material contact points
- Dust tight seals
- Lightweight aluminum frame, corrosion resistant
- Choice of stainless, aluminum and carbon inlets and outlets
- 60o configuration standard -45o optional
- No internal ledges for product to collect
- Rated for 82oC (180oF)
|
|
|

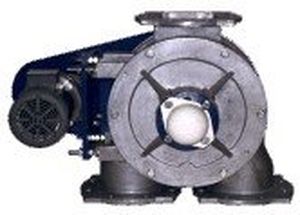

Twin-Outlet Diverting Rotary Valve combines the function of a rotary feeder/airlock and diverter valve in one simple mechanism. Select left or right discharge by changing rotor direction via motor and reversing switch. Only one moving part. Very compact. Exclusive tapered rotor allows rotor gap to be easily adjusted. Heavy cast aluminum, iron or stainless steel valve body. Adjustable packing gland shaft seals -- purge available. Heavy duty permanently sealed outboard roller bearings. Ideal for vacuum or pressure conveying systems. Available in five sizes with capacities up to 2,500 cubic feet per hour.
|
|
