Both the model 3310 and 3320 G-Loggers come complete with an RS-232 interface cable and the G-Logger Software Program which allows you to set up the G-Logger for a particular data acquisition mission, acquire your data,
and then transfer the resulting data to your in 95/98/NT4.0/2000 PC. No data acquisition card is needed because all the communication is handled via the RS-232 COM port on your PC. The G-Logger Software program is meant to be used in conjunction with a plotting program. Should you already own or choose to provide your own plotting software, the G-Logger Software Program can be set to output the data in ASCII comma delimited format which is readable by most any data graphing software
package.
The model 3310 is a standalone unit. The Model 3320 G-Logger is designed to be used with either one model 2420 triaxial accelerometer or up to 3 Model 2010 single axis accelerometers. In order to connect 1, 2 or 3 model 2010
accelerometers, a Model 3901 (tri-Y) Adapter Cable is also needed. This adaptor allows the 2010's to be separated by up to 6' from each other. A 10' extension cable is also included and can be inserted between the model 3320 G-Logger and the model 3901 (with 2010's connected to it) or between the model 3320 G-Logger and a model 2420 Triax.
|
|
Portable PC-based data acquisition system with flip-up 17" tft display.
16 DAQ module slots on the front, or 32 MDAQ input channels.
ORION series A/D cards with simultaneous sampling, CAN BUS interfaces, and more. VIDEO inputs, IRIG timecode option, and GPS interface.
Powerful WindowsXP computer inside
DEWESoft data acquisition software completes your system
|
|
DEWE-43-V packs incredible punch
The all-new DEWE-43-V is taking the data acquisition world by storm. Find out just how great this powerful and yet highly affordable system really is!
-8 universal inputs with 200 kS/s/ch max sample rate
-Simultaneous sampling and 24-bit resolution
-8 synchronous counter/encoder inputs / 24 digital TTL inputs
-2 high speed CAN bus interfaces
-Powered from 6-36 VDC
-Connects to your PC via USB 2.0 (locking connector on the DEWE-43!)
-Includes DEWESoft-SE acquisition/replay software
|
|
|
Yokogawa's PC-based data acquisition system DAQMASTERs is delivering unparalleled performance. When combined with Yokogawa's proprietary PC software, the MX100's high speed, multi channel capability, and high withstand voltage offers the ultimate in measurement power.
|
|
|
|
|
|

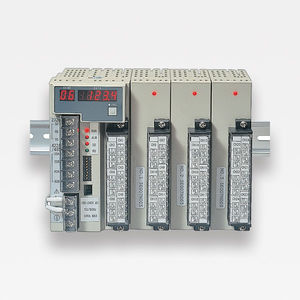

Data monitoring DAS-8000
Acquisition and display of analog and logic variables for monitoring, surveillance and sequential display of measurements, with assigned alarms and remote control of logic actions in industrial processes.
Acquisition of 8 analog variables, 8 logic variables and 8 alarm logic outputs
Local Display of reading, channel nº, alarms and other parameters
Remote Control of logic actuators
Alarm-loops associated to the analog inputs
2 counters with reset, inhibition and preset functions
Inputs and ranges configurable in Pt 100, 0...4-20, mA, mV and V indistinctly
Linearization of thermocouples (E, J, K, T, S, R, B and N)
Linearization of user curve
Direct output to printer (RS-232)
Communication bus selectable RS-485 / RS-232
Operating in stand alone mode or in multidrop network up to 255 devices (standard Modbus protocol)
Configurable from PC or locally by front keypad in programming and monitoring
DIN Rail mounting or on rear panel or on wall
Display Detachable up to 2 m from main body
|
|
|

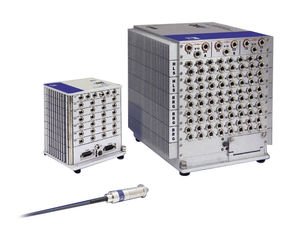

Data Acquisition is a completely redesigned data acquisition system combining GE's hardware capability with the new Sxp software platform. The new system consists of the 408 Dynamic Signal Processing instrument (DSPi) and ADRE® Sxp software. Highly portable, ADRE® Sxp is designed to meet the changing needs of various fleet asset management programs as well as all other industries where speed and flexibility in data collection are a must. ADRE® Sxp can operate stand-alone in test stands, and with its remote viewing and operating capabilities, offers users large potential savings on unnecessary travel expenses.
|
|
|
|
|
|
With more than 100,000 MGCplus channels in different applications worldwide, HBM's MGCplus system has achieved acceptance as a measurement standard. The wide spectrum of supported transducers, fieldbus connections and standard PC interfaces are some of the features which indicate that it is a truly integrated measurement device.
The MGCplus is today the data acquisition (DAQ) system of choice for almost all industrial, laboratory and R&D measurement applications in:
Test rigs
Calibration
Manufacturing
Weighing
Experimental stress analysis
Mobile data acquisition.
Main features and benefits:
Modular, computer-controllable amplifier system
Self-supporting plug-in amplifier units available for all common measurement quantities, e.g. SG transducers, inductive transducers, DC voltages, thermocouples, torque transducers
Various computer interfaces (RS232, RS485 and IEEE488), also available with standard protocols such as 3964R, ModBus and Ethernet
Parallel, synchronised data acquisition from max. 16 channels per device, 10,000 samples per sec/channel
Operation possible via control panel display or PC in conjunction with relevant software.
|
|
|
|
|
|
Imatek data acquisition systems are based around the C3008 controller and a PC running the ImpAcqt software. This is a general-purpose system for analysing the results of high-speed tests, such as impact testing and high-speed servo-hydraulic testing.
Key features:
Analogue channels: 4 as standard, 16 optional. All channels sampled simultaneously at the maximum sample rate
Digital channel: Quadrature encoded input in addition to analogue channels
Resolution: 16-bit (1 in 65536), no missing codes
Sample rate: 3,000,000 samples per second (maximum)
Sample depth: Up to 50,000 samples per channel
Gain: Input range ±10V, ±5V, ±2.5V, ±1.25V software selectable
Input mode: Differential, bi-polar or uni-polar, selected per channel.
Bandwidth: 1.5MHz
Signal to noise: <2 bit system noise
Gain error: ±0.1% maximum
Trigger: By velocity-measurement laser, external TTL trigger in, analogue channels (trigger level configurable). Rising/falling edge. 0% to 100% pre-triggering. Trigger output.
Timing: Velocity measurement by time-of-flight, 20ns resolution
Digital input: 26 channel opto-isolated input
Digital output: 18 channel NPN output, short-circuit and over-current protected.
High speed camera: Camera trigger output and lighting controller output to interface to high-speed video systems. See separate data sheet for details.
|
|
Description
Inputs
12 analog inputs
8 temperature inputs
8 (TOR) digital inputs
5 frequency inputs
1 supply input
1 CAN machine plug
1 Hand held terminal / Debug plug
Saving
Smart Media Card
Communication
Serial link RS 232
Sample frequency
Up to 500 Hz for analog, frequency and digital inputs
Up to 25 Hz for temperature inputs
Up to 1 Mbit/sec for the CAN bus
SD Canalogger set-up
Set-up with a PC using the Canalogger ExplorerTM software application or the hand held terminal with serial link
SD Canalogger protection index with its connectors
IP 65 (weather proofing)
Resistance
1m fall
Operating temperature
- 25°C to 70°C [- 65°F àto 182°F]
Mass 3.85 kg
Supply voltage 10 to 30 V
|
|
Reliability of a PLC, with all the flexibility of a PC. High speed analog, digital and serial I/O. All with web-based interface and built in browser. The next generation of industrial IO products loosely labeled "Programmable Automation Controllers" or PAC's.
Our industrial Ethernet I/O data acquisition systems are using open architecture standards for easy development and deployment into existing and future systems. By using the efficiencies of standard technology, you are getting a lower total cost of ownership for monitoring and control applications. With our Ethernet Data Acquisition System EDAS CE, you take advantage of your existing network infrastructure, lower cost network components, and trained staff for networking and application development.
|
|
|
|
|
|
The Gage Box remote Data Acquisition System is a shop floor proof, expandable gauging system.
The system is composed of dedicated, stackable modules to manage analog sensors and digital Input/Output signals.
All modules are daisy-chained together and exchange measurement data, programming data and I/O signals with the E9066™ Industrial PC through a simple RS232 serial link. Any commercial PC can also be used.
The system allows direct interfacing and data collection from TESTAR probes or measuring cells, and from a wide variety of third party sensors.
All data acquisition functions (sampling, signal conditioning, A/D conversion) are performed locally (freeing the computer from any overhead or operating system latency), and then conveniently transferred to the system’s companion Industrial PC, the E9066s™, or to any PC-compatible data collector, via a standard RS232 port.
A high speed, serial communication link with a dedicated ISA-compatible interface card is also available, for process-intensive or critical measurement applications.
|
|
|
|
|
|
Data acquisition module with 9 inputs, 2 outputs for RS232, Ethernet, analog Memory with external connector and MMC card or internal 512-KB EEPROM (option S)
Technical Features:
- 9 ALMEMO® input sockets, electrically isolated, for 9 ALMEMO® sensors, 36 sensor channels, 4 additional internal function channels.
- 2 ALMEMO® output sockets for digital interfaces, analog output, trigger input, alarm contacts, memory card.
- High-speed, high-resolution A/D converter, 24-bit, 50 measuring operations per second.
New: Electrically isolated between measuring inputs and supply.
- Programming of sensor parameters in the connector, can be modified via interface using the supplied AMR-Control software.
- Measuring functions : Measured value, zero-setting, sensor adjustment, maximum / minimum values stored with date, time-of-day, smoothing, average values over time or measuring points, limit value monitoring, temperature
compensation, atmospheric pressure compensation.
- New: Cold junction measuring with 2 NTCs and interpolation
Ranges : Pt100 0.000 to 65.000°C, timer 6500.0 seconds.
- New: Special ranges in the ALMEMO® connector, provided as
standard, e.g. 0.000 to 50.000 ohms, NTC -5.000 to 46.000
°C, YSI 400 etc.
|
|
The multifunction USB Data Acquisition Systems from Intelligent Instrumentation provide 16 analog inputs with up to 100 kHz sampling rate, 2 analog outputs and 16 digital channels. They are powered through the USB cable, which makes them ideal for mobile applications with notebook computers.
Connection to field signals are either made with a 50pin connector or built-in screw terminal blocks.
|
|
Paperless recorders offer improvements over traditional chart recorders, including reduced operating costs and improved reliability. Paperless recorders can be connected to the LAN allowing access to data by multiple departments.
eZtrend QXe
The eZtrend QXe is a cost-effective, general purpose DIN size electronic data recorder that easily replaces 100mm paper strip chart recorders, providing the ability to capture continuous and batch data electronically.
Minitrend QX
The Minitrend QX Electronic Data Recorder represents the latest in recording technology by providing the ability to capture continuous and batch data electronically, making the analysis of the data easier, faster and more reliable.
MultitrendPlus SX
The Multitrend SX reliably records electronic data in a secure format from directly connected sensors or transmitters that can be used for documentation of process conditions and process improvement.
|
|
Eagle is a new data acquisition system designed to provide a world-class rack-mounted solution for medium channel-count dynamic data recording, and real-time monitoring requirements. Eagle is particularly suited to applications close to the test article with a rugged 19" rack-mount chassis.
Eagle may be operated in a standalone mode as a mobile acquisition system (with screen & keyboard fitted) or as part of a larger remotely-controlled acquisition system.
Eagle features 32 analogue input channels.
- 24-bit delta-sigma A-to-D converter per channel
- Synchronous sample rates 5-200 kHz (up to 80kHz bandwidth)
- All inputs are configurable for AC, DC, ICP or Tachometer signals
- Each channel includes selectable ranges up to +/-1, 2, 5 or 10 volts
- Synclink interface to allow multi-unit operation
- < 5kg weight
|
|
|
|
|
|
Recorders, Paperless
Paperless recorders offer improvements over traditional chart recorders, including reduced operating costs and improved reliability. Paperless recorders can be connected to the LAN allowing access to data by multiple departments.
eZtrend QXe
The eZtrend QXe is a cost-effective, general purpose DIN size electronic data recorder that easily replaces 100mm paper strip chart recorders, providing the ability to capture continuous and batch data electronically.
Minitrend QX
The Minitrend QX Electronic Data Recorder represents the latest in recording technology by providing the ability to capture continuous and batch data electronically, making the analysis of the data easier, faster and more reliable.
MultitrendPlus SX
The Multitrend SX reliably records electronic data in a secure format from directly connected sensors or transmitters that can be used for documentation of process conditions and process improvement.
TrendManager Software
TrendManager Pro Software Suite is a PC software package designed to complement Honeywell paperless recorders.
|
|
Delphin's modular MinMessage device enables the acquisition of any physical value (e.g. temperature, pressure, flow). The device includes 1 or 2 I/O modules which can be combined in any way according to requirements.
Message devices are being used in a range of applications: in laboratories, the comprehensive monitoring of containers, measurement data acquisition at engine testing benches etc..
|
|
Astro-Med has been designing and manufacturing Dash series recorders for over two decades. From yesterday's strip chart-based recorders to today's data acquisition based recorders, the Dash series name has been synonymous with portable, rugged, maintenance and troubleshooting tools.
Dash 18X - The Dash 18X is a portable, 18-channel data acquisition recorder designed for a wide variety of high channel count applications. It has universal inputs for voltage, thermocouple and bridge signals. A large real-time waveform display, internal 73 GByte hard drive for capturing data, integral PC connectivity and optional chart recorder give you data in any format that you want. Audio and video snapshot recording let's you capture all aspects of your test.
|
|

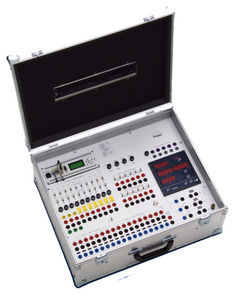

Automatically creates test certificates, A4-format
Test graph on your own PC or laptop
Up to 4 input channels for pressure or temperature
Suitable for all types of pressure test units
Calibrated system, ready-for-use
User-friendly software including manual on CD ROM
WE ARE LOOKING FOR A DISTRIBUTOR IN ITALY. Please contact us if you are interested!
|
|
|
|
|
|
MEASURpoint™ is an ultra-accurate instrument that allows any combination of temperature and voltage to be measured with a single software solution. Up to 48 configurable channels allow the ultimate flexibility with voltage, thermocouple, and RTD inputs. MEASURpoint incorporates ISO-Channel™ technology to eliminate any common mode noise and ground loop problem in any environmental conditions.
Key Features:
Dedicated 24-bit, Delta Sigma A/D converter per channel operating in parallel
Configure up to 48 channels in groups of 8 channels per board
ISO-Channel™ protection eliminates noise and ground loops
1000V galvanic isolation channel to channel and to the host computer to protect signal integrity
DC/DC converter per channel maximizes isolation
10Hz throughput rate on each channel simultaneously or 480Hz for 48 channels
Ethernet (LXI Class C compliant) or USB operation
Compact, rugged 2U half rack enclosure (3.5" H x 8.25" W x 8.25" L)
Dedicated CJC (cold junction compensation) for each thermocouple channel
B, E, J, K, N, R, S, and T type thermocouples supported
Dedicated reference current source for each RTD channel
Platinum RTD types supported: Pt100, Pt500, Pt1000
3 software selectable input ranges on voltage boards: ±10V, ±100V, ±400V
Includes ready-to-measure Measurement Application
|
|
Topo is a new data acquisition front-end system designed to provide a world-class ultra-portable solution for medium channel-count dynamic data recording.
Topo features 32 (standard) analogue input channels.
- 16 bit delta sigma A to D converter per channel
- Synchronous sample rates 5-200kHz (effective 80kHz bandwidth)
- +/-10 volt channel inputs
- Synclink interface to allow multi-unit operation
- < 1kg weight
|
|
USB 1MS/s, 16-bit multifunction module with BNC inputs
- 1 MS/s 16-bit A/D converter
- 16 BNC differential analog inputs, with 7 programmable input ranges from ±100 mV to ±10 V full scale
- Over-sampling mode, including line-cycle rejection for low-level voltage measurements, even in the presence of AC power line noise
- 1 MS/s, 16-bit analog outputs
- 16 digital I/O
- 4 counter inputs capable of measuring frequency, period, pulse width, or quadrature encoders up to 20 MHz
- 2 timer outputs
|
|
|
|
|
|
An important property of AUTOLOG 3000 is its measuring speed (scanning rate) of 1 kHz for each individual channel. In this way, 6000 values per second can be dealt with at one measuring card. These are all being buffered individually and hence being transmitted through the CAN-Bus or the USB interface to the central (external) PC.
- Through CAN-Bus: The measuring cards communicate among each other and with the PC by means of the CAN-Bus protocol. Connection of the CAN-Bus with the PC can be made through an external CAN/USB converter. From the PC, all necessary hardware-adjustments can be performed. The PC logs, visualizes and stores all set and measured information over any period of time. Depending on the bus length and the bus speed, a CAN-Bus can handle 32 measuring cards with each 6 channels = 192 channels. When configuring larger systems, one or more bus lines can be operated in parallel. Synchronization between the cards guarantees the measuring of all channels without any time loss.
- Through USB interface: If the decentralized features of the CAN-Bus is not required but a high speed data-transfer is necessary, it is possible to mount an optional USB interface in the AUTOLOG 3000. This interface communicates with the input cards and transfers the measured data directly to the connected PC.
- Through Ethernet: Installing the optional PB3000 card will extend the communication interface with ethernet. This interface creatly extend the possiblities. With an extra Router one could create a WLAN measurement network.
|
|
LDS Nicolet provides a complete family of data acquisition systems designed to provide continuous data recording to disk at high aggregate speeds. Choose from a range of systems offering high-precision transient data capture, data recording or both. LDS-Nicolet's data acquisition systems and transient recorders have a history of unparalleled performance.
|
|
|

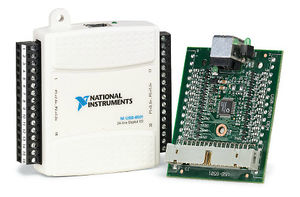

National Instruments, a market leader in PC-based data acquisition, offers the most complete family of data acquisition devices for desktop, portable, and networked applications on several buses, including PCI, PCI Express, PXI, PCMCIA, USB, CompactFlash, Ethernet, and FireWire, and many operating systems, including Windows, Linux, Mac OS X, Pocket PC/Windows CE, and RTX.
|
|
|
|
|
|
EnviroMon is a complete data logging system. It automatically measures and records temperature, humidity and other parameters and provides warnings when readings go out of range.
EnviroMon is both flexible and economical: you can start off just recording a single temperature and expand to monitor up to 40 sensors spread around a site.
EnviroMon works on a network so that sensors can be placed 100s of metres apart. Measurements from the network can be read off the display on the logger, sent to a printer, downloaded to a PC or even displayed live on a website. Using a modem (radio, telephone or GSM) the loggers can be monitored remotely.
The system offers these important benefits:
- It carries out routine measurements automatically, leaving staff to get on with their job
- It sounds an alarm when there is a problem: if there is no alarm, no action is required
- It maintains a permanent record of measurements, so that you can prove compliance with appropriate legislation
- It provides timely warnings of equipment failure, minimising the risk of spoiled stock
- It is easy to install and use
The system has the following features and options:
- Operation with a PC or stand-alone (computer required for installation)
- Mains powered, with battery backup
- Can print reports directly
- Can be operated via a modem, network or internet for remote monitoring
- Can publish data live to a website
- Wide range of alarm options
- Fahrenheit or Celsius temperature reporting
- Highly accurate sensors
|
|
DS-2000 Series - Data Station
The DS-2000 Series puts all the advanced functions required of a signal processing system in a single, compact paper size cabinet. This series must be integrated to a PC.
Features:
- 2 to 32 input channels. Channels may be added later as your needs dictate.
- Ultra compact (7" x 10") and lighweight design (less than 2.5 kg).
- Quiet fanless design.
- Built-in sensor power.
Specifications:
- Number of Input Channels: 2 to 32
- Frequency Range: 0 to 40 kHz
- A/D Converter: 24-Bit
- Dynamic Range: 100 dB
- Current Sensor Power: 2 mA, 4 mA
- Operating Temperature: 0 to 40º C
- Dimensions: 257 mm (W) x 74 to 344 mm (H) x 182 mm (D)
- Weight: 2.3 kg (2 or 4 channel configuration)
|
|
|
|
|
|
Precision High Voltage Measurement Instruments VOLTpoint is a family of precision instruments designed for measuring a wide range of voltage inputs; ideally suited for cell-by-cell battery testing where sources range from millivolts to ±400V. Available in both USB and Ethernet (LXI) versions, VOLTpoint can be configured with 8, 16, 24, 32, 40, or 48 input channels. Each VOLTpoint instrument ships with a ready-to-measure application, allowing you to view, graph, and export your data. VOLTpoint uses ISO-Channel™ technology to eliminate connection problems by using galvanic isolation methods to guarantee 1000V isolation between sensor grounds.
VOLTpoint USB Instrument
DT9873: Precision Voltage Measurement Instruments for USB
* Dedicated 24-bit, Delta Sigma A/D converter for each voltage input channel for simultaneous, high-resolution measurements
* ISO-Channel™ – 1000V galvanic isolation channel to channel and to the host computer to protect signal integrity
* Sampling rates up to 10 Hz per channel
* Measurement Instruments Application and programming examples included
|
|
|
|
|
|

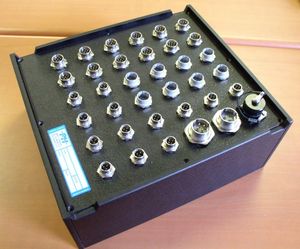

TEMPpoint™ is a series of temperature measurement instruments designed for high accuracy and industrial robustness. TEMPpoint utilitzes ISO-Channel™ front end architecture to eliminate common mode noise and ground loops through 1000V channel to channel galvanic isolation. These instruments allow direct thermocouple, RTD, and precision voltage or resistance measurements with a PC. Temperature and voltage values can be viewed, graphed, or exported to Excel, and allow limit checking for control or monitoring of a manufacturing process. USB and Ethernet (LXI) versions are available with 8, 16, 24, 32, 40, or 48 channels
TEMPpoint Ethernet (LXI) Instruments for Thermocouples
DT8871U: Highly Accurate Thermocouple Temperature Measurement Instruments
* 8 to 48 simultaneous differential inputs per instrument
* Connect any thermocouple or voltage directly at the front panel
* Galvanic Isolation Channel-to-Channel ±500V
* TEMPpoint datalogger application, programming examples, and web-based application included
|
|
|
The E-PDISO16 has one built-in 10/100 BASE-T auto-negotiation, high-speed communication port. With the Ethernet interface, you can remotely access and configure your E-PDISO16 from anywhere on the network. Only one computer can control the E-PDISO16 at one time. The networking protocol is TCP/IP. You can send your data over 100 meters at data speeds of up to 100 Mbps using only one Ethernet cable connected to your computer.
|
|
|
|
