The Dunkermotoren BG range of brushless, direct current motors (EC motors) are notable for:
Very long life
High efficiency
Highly dynamic acceleration
Good regulation characteristics
Wide speed range
High power density
Maintenance-free
Robust design
Integral Hall sensors for rotor position
Low moment of inertia
High degree of protection
Winding insulation - Class E or B
Neodymium magnets
These electronically-commutated DC motors can be combined with control electronics, gearboxes, and encoders in a modular system to provide a flexible, adaptable, market-oriented solution.
|
|
No cogging or preferred rotor position
No iron losses
Extremely low current consumption
Low audible and electrical noise
Extremely light and compact
Smooth and accurate speed, position, and torque control
Low vibration
Speeds up to 100,000 rpm
Electronic commutation for extremely long operational lifetime
High precision gearboxes available in all sizes
Feedback components available in all sizes
Control electronics available for all motor series
Custom systems available from design to production
|
|
No cogging or preferred rotor position
No iron losses
Extremely low current consumption
Low audible and electrical noise
Extremely light and compact
Smooth and accurate speed, position, and torque control
Low vibration
Speeds up to 100,000 rpm
Electronic commutation for extremely long operational lifetime
High precision gearboxes available in all sizes
Feedback components available in all sizes
Control electronics available for all motor series
Custom systems available from design to production
|
|
Baldor's DC high performance servo motors were designed rugged to meet demanding requirements of industrial motion control. They can be supplied with many electrical and mechanical options so the design fits your application. Some of the many options available include: tachometers, encoders, brakes, mountings, shafts, windings, speeds, connectors, environmental.
The DC servo motors provide continuous stall torques from 0.2 N-m (1.8 Lb-In) to 6.3 N-m (56 Lb-In). They are designed to provide reliability and dependability and long life in today's tough applications.
The DC servo motors are presently used world wide in applications such as X-Y tables , factory automation, coil winders, labeling equipment, machine tool, insertion machines, robotics, pick and place, packaging, converting equipment, assembly equipment and laboratory equipment.
|
|
Mounting size : 42 to 88 mm
Output Power : 23 to 500 W
Protection class : IP43
FEATURES : low torque ripple, long brush life expectancy, high resolution encoder (till 45000 ppr)
Option / Customisation : brake, tachogenerator, encoder, gear box, special winding
|
|
TRM servomotors are designed for optimum performance and durability in demanding variable-speed motor applications, TRM DC high performance servo motors were designed rugged to meet demanding requirements of industrial motion control. They can be supplied with many electrical and mechanical options so the design fits your application. Some of the many options available include: tachometers, encoders, brakes, special mountings, special shafts, different windings, connectors, environmental sealing.
The DC servo motors family provide continuous stall torques from 0.4Nm (0.3 lb-ft) to 30Nm (24 lb-ft.) They are designed to provide reliability and dependability and long life in today's tough applications.
|
|
DC Brush Servo Motors
DC Brush Servo Motor Platform 2100
- 2105 Servomotor
- 2110 Servomotor
- 2115 Servomotor
- 2120 Servomotor
- 2130 Servomotor
DC Brush Servo Motor Platform 2600
- 2605 Servomotor
- 2610 Servomotor
- 2615 Servomotor
- 2620 Servomotor
- 2630 Servomotor
- 2640 Servomotor
DC Brush Servo Motor Platform 3500
- 3505 Servomotor
- 3509 Servomotor
- 3515 Servomotor
- 3528 Servomotor
DC Brush Servo Motor Platform 4100
- 4101 Servomotor
- 4102 Servomotor
- 4104 Servomotor
- 4106 Servomotor
DC Brush Servo Motor Platform 40TT
- Drop in replacement for the discontinued Kollmorgen* TT Servo Motors
- Matched Windings, Connections, and Mechanical Interface
- Heavy Duty Steel Housing for Demanding Service
- Full Performance Testing Included
- Resonably Priced, Excellent Value
- Reliable Operation in Sever Service
|
|
Danaher's family of DC motors offers an extremely wide variety of size and package types. From frameless pancake motors to high acceleration housed/shafted motors, Danaher offers the most complete range of high performance motors available today.
Pacific Scientific PMDC motors offer rugged, quality construction providing dependable operation. A well deserved reputation for value, these motors are backed by a two-year warranty.
Kollmorgen ServoDisc™ Brush Motors differ from conventional DC servomotors in their unique slotless disc armature design. This enables them to deliver a concentrated level of performance, in both incremental motion and continuous speed that is not attainable with conventional ironcore motor designs.
Direct Drive DC Torque Motors are particularly suited for servo system applications where it is desirable to minimize size, weight, power and response time, and to maximize rate and position accuracies.
|
|
DC1500:
Brushless direct current motor in compact design for flange mounting with integrated incremental encoder
- Pnom = 400W;
- Mmax = 3 Nm;
- Nmax = 9000 rev/min
DC1550:
Brushless direct current motor in compact design for flange mounting with integrated incremental encoder
- Pnom = 600W;
- Mmax = 8 Nm;
- Nmax = 5000 rev/min
|
|
DC-motors
* Good efficiencies, high peak load through the use of premium ferrite materials and optimized magnet systems
* High-quality design
Steel tube housing, externally accessible brushes
* Versatile compatibility
Well-graduated gear series, parking brakes, tachometers and incremental encoders
|
|
Custom windings are available on select SmartMotors. These special windings allow SmartMotors to achieve higher speeds or greater torque.
Custom shaft lengths and diameters are available on select SmartMotors. Flats and keyways are common options found on motor shafts. SmartMotors can be purchased with various versions of these shaft modifications.
Torque vs. Speed curve data is derived under dynamometer testing using a power/battery supply at an ambient temperature of 27°C (80.6°F).
Connector kits and cable options are available.
SmartMotor servos have CE certification.
|
|
|
|
|
|
Integral, high torque density servo drive with Canopen interface and absolute multiturn positioning.
Universal 350 and 550 Vdc bus supply
2.5-9 Nm torque, 5000 rpm max
Multi axes machines
Direct drive without gearbox
Intrinsic multiple electric gear
Built in single turn and multi turn 4096 turn + 16 bit absolute encoder, 1 arcmin accuracy
No zeroing cycles
CanOpen DS301, DSP402v2.0 compatible
Double insulation
Built in RFI filter, Class B
IP 68 protection

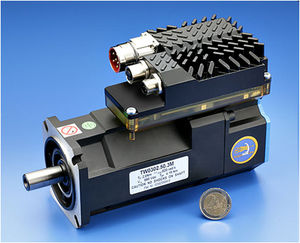

The new TorqueWire series of integral servo systems creates a different approach to complex automatic machinery architecture. Torquewire motors are complete, self sufficient servo axis building blocks which allow the design, integration and operation of large multi axis systems with minimum hardware and surprising ease.
The TorqueWire motor systems consist of an advanced, high performance rare earth brushless servo motor, a DSP based, high voltage interpolating servo drive and a single or multi turn absolute encoder, all assembled in a very compact IP 68 protected frame.
|
|
PANdrive PD-163-42
Description
42mm BLDC motor with integrated controller/driver
The PD-163-42 is a full mechatronic solution including a 42mm brushless DC motor (NEMA17). It combines a convenient BLDC controller/driver electronic (TMCM-163-42) with a range of different motor types with internal HALL sensors. The PD-163-42 offers two motor torque options and can be controlled via RS232 or RS485 interface. The power supply is connected via flat connectors and the interface and the multi-purpose I/Os can be connected via high density JST connectors. It integrates a position regulator and a ramp generator. The integrated ramp generator provides for parameterized smooth positioning and supports an external switch as an absolute position reference.
|
|
|
In order to support twenty first century OEM's in their determination to maintain a competitive edge we have developed an extensive range of single and dual channel encoders. Both options are available across the major part of the range of dc motors and gearboxes and represent the most cost effective answer to the need for feedback.
|
|

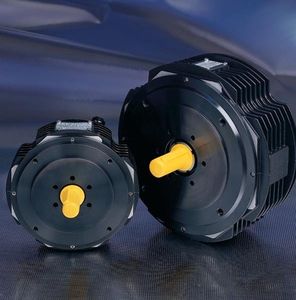

The Printed Motor Works GP series is a totally enclosed dc motor in an ultra slim pancake profile. This pancake motor can provide a cost effective servo capability. Using flat armature technology the motor is ideal for general purpose applications. The GP series range is available in 9 inch, 12 inch and 16 inch armature diameter sizes, each either with standard ferrite magnets (denoted as GPM) and high-power neodymium magnets (denoted as GPN). Additionally, every motor in the GP series is available as a low resistance (designated LR) motor perfectly suited for low voltage and battery applications.
Peak Torque 100 to 1700 Ncm
Cont. Torque 10 to 170 Ncm
Power 38 to 533 Watts
Speed 1 to 6000 rpm
|
|
|
|
|
|
The IG series DC brushless three-phase servomotor delivers high continuous torque in a cost reduced package.
The increased torque is the result of eight magnetic poles on the rotor compared to the traditional four magnetic poles. This design uses neodymium magnets for maximum performance. The IG series has an open-lamination design reducing cost. This series come with NEMA standard flanges size 17, 23, 34, and 42 with continuous torque rating from 25 to 820 oz-in (0.18 to 5.80 Nm).
An optical encoder having A, B and C encoder tracks and uvw commutation tracks comes standard with the servomotor. Encoder resolutions available are 500, 1000, 2000, 2048, 4096, and 8192 ppr (pulse per revolution).
The servomotor is designed with a 40 in (101.6 cm) shielded/grounded power and encoder cable extending from the rear of the servomotor for fitting into those tight locations.
Both IP 40 and IP 65 are available for the environmental rating. All models are available with gear heads.
The motors are available with and without a build-in holding brake. The motor length and specifications would vary if a servomotor with a brake is chosen.
|
|
Brushless AC/DC motors
BGK/NX (Brushless DC motors, housed block currented)
BGK/NV (Brushless-AC motors housed "VOLKSSERVO", sinus currented)
higher output-efficiency whilst
energy-saving, compared with
Induction-motors)
|
|
SAX 100
CComplete line of DC Brushed servomotors. Torque range from 0.045 up to 2.7 Nm.
Typical applications are Axis Controlled by CNC. Particularly indicated for cost effective applications with smooth speed control and high reliability. Specially designed for use with Microspeed, Minispeed and Masterspeed servoamplifiers.
|
|

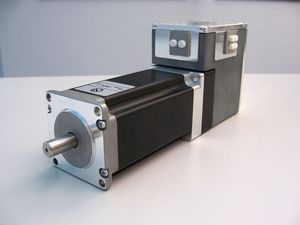

The new series of servo motors SM2A with integrated motor can be easily programmed through EVER's windows PC based user friendly development environment called ATOMIC.
The SM2A series are constructed with a high protection degree of IP65 and are equipped with reliable connectors. Other features are: AC power supply, fieldbus CANbus or serial RS232/485, optoisolated inputs and outputs, an encoder for the closed loop control of torque, velocity and position (optional), The motor section is made of magnetic Low Loss material and has a holding torque from 3,4 to 12,5 Nm.
|
|
| ... products without technical information |
| |
Control electronics for DC and EC motors
1 and 4-quadrant servoamplifiers
Positioning control units
- EPOS P
- EPOS 2
Characteristics
- Matched to maxon motors
- Comprehensive range of cables and accessories available
- Customization if required
|
|
RCA Series is a compact RoboCylinder with 24 VAC servo motor and optical encoder.
The product has widely been accepted not only as a compact, programmable, electro-mechanical alternative to air cylinders, but also its integrated PLC function and user-friendly SEL language have made RCA Series an absolute all-rounder in the factory automation.
|
|
|
|
