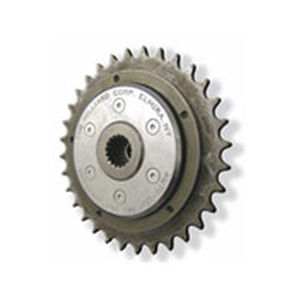

The Candy Differential, DIFF Series, is a precision timing mechanism used to advance or retard the rotary position of machine components. Installed in the drive train, these infinitely adjustable phase transmissions may be manually or motor-adjusted, while running or stopped. With the control shaft stationary, input and output shafts rotate in a 1:1, counter-rotating relationship. When a rotation is applied to the control shaft, a differential action occurs between the input and output elements making the DIFF Series ideal for positioning applications.
This unique modular design allows for a variety of accessories and mounting configurations, providing unmatched application flexibility. Through-shaft or single-shaft right angle box attachments are available to turn corners. Shaft reversing boxes are available making same-shaft rotation possible. The DIFF Series may also be fitted with a control motor allowing for remote adjustments.
The patented DIFF Series represents the latest in engineering development and is ideal for both machine retrofits and new machine designs.
|
|
Technical data Phase shifter gearboxes:
Type: UE, UEF, LUE, LUEF
- Size: 1, 2, 23, 25, 30, 4, 5
- Ratio: 1 - 3
- Output torque: 50 - 2500 Nm
- Lubrication: Oillubrication
|
|
The DiFFXP is a Ruggedized differential test set!
The DiFFXP is a ruggedized differential pressure test set with the accuracy and features of the XP2i gauges. The DiFFXP is rated at 0.14% of static line reading accuracy.
Valves, piping and sensors are all stainless steel
Enclosure is watertight, crushproof and dustproof
Enclosure is rated to NEMA IP67
|
|
|
|
|
|
Differential pressure measurement is a crucial parameter for determining pollutant pathways for IAQ and worker exposure applications. It is also a key HVAC parameter in commercial and institutional buildings and in manufacturing plants, among many other important applications.
Each Zephyr II instrument includes a built-in, auto-zeroing, micro-manometer and 'K'-type thermocouple input for measuring differential pressure, static pressure and temperature. The auto-zeroing feature allows for highly accurate differential pressure logging over time. With a pitot tube, the Zephyr provides direct air velocity readings. Zephyrs can also be fitted with a telescoping 3-function probe (model 2300 AHTS) to measure humidity, temperature and (hotwire) airspeed.
The Zephyr II range has been designed with the user in mind. The large rubber grip and simple membrane switch pad ensure the unit is comfortable to use allowing pushbutton operation even with gloves on. The 2300 AHTS probe attaches to the side of the instrument for single-handed operation.
The display and menu system provide step-by-step guides for each operation. This ensures minimal user training is required. Data capture is included as standard to allow duct traversing. Volumetric flow is calculated by simply entering the size of the duct and the instrument performs the necessary calculation.
The Zephyr II is a stand-alone instrument. However, with all of it's available parameters, it may be interfaced to any GrayWolf WolfSense PPC or LAP mobile PC based system via a CF serial card (model ACC-SCDPC); opening the door to the full extent of GrayWolf's DirectSense product features.
|
|
DPG - Differential Pressure Gauge
The DPG is ideal for measuring differential pressure, air flow, under and over pressure of air and non-aggressive gasses.
The applications of DPG include monitoring air filters and controlling fans, measuring over- and underpressure in air ducts, air handling units, clean rooms and laminar flow cabinets as well as differential pressures between different spaces.
|
|
These differential pressure gauges are made of highly corrosion-resistant stainless steel and feature an all-metal, all-welded media chamber to ensure long-term leaktightness (no elastomer sealing elements).
A high overpressure safety is achieved by the all-metal construction and the close-fitting design of the pressuremeasuring diaphragm.
With its high-grade stainless steel construction and robust design this pressure gauge is geared to chemical and process engineering applications. It is suitable for gaseous or liquid media and also for corrosive environments.
Scale ranges from 0 ... 16 mbar to 0 ... 25 bar are available to meet the requirements of a wide variety of applications.
|
|
|
The Series P2000 differential pressure gauges are low cost, diaphragm operated, mechanical pressure gauges in an ABS housing. The P2000 gage can be used in applications for measuring positive, negative, or differential pressure with an accuracy of 2%. Standard applications include monitoring filter status, duct static pressure, room pressure, fan or blower pressure, paint booths, dust collectors, and cabinet purging along with many others.
|
|
Aluminum Housing
The Series S2000 differential pressure gauges are low cost, diaphragm operated, mechanical pressure gauges. The S2000 gage can be used in applications for measuring positive, negative, or differential pressure with an accuracy of 2%. Standard applications include monitoring filter status, duct static pressure, room pressure, fan or blower pressure, paint booths, dust collectors, and cabinet purging along with many others.
|
|
|
The Series S2000 differential pressure gauges are low cost, diaphragm operated, mechanical pressure gauges. The S2000 displayed has an aluminum housing with a stainless steel front ring and can be used in applications for measuring positive, negative, or differential pressure with an accuracy of 2%. Standard applications include monitoring filter status, duct static pressure, room pressure, fan or blower pressure, paint booths, dust collectors, and cabinet purging along with many others.
|
|
|
The series A1 digital differential pressure gage is a patent pending microprocessor based digital pressure gauge for positive, negative, and differential measurement designed to be a direct replacement for mechanical gauges. The Series A1 differential pressure gauges utilize an extremely stable piezoresistive sensing technology to give a standard full scale accuracy of 1%. For applications requiring better accuracy, the A1 is also available with 0.5% accuracy. The A1 pressure gauge also has an optional 4-20 mA output for applications requiring an output signal. The A1 features a bright ½" LED display, which gives the gauge improved readability and precision. The A1 digital differential pressure gauges also feature 5 user selectable engineering units including in. w.c., mm w.c., cm w.c., kPa, and Pa. The Series A1 offers an improved look, and performance compare to mechanical gauges for a similar price.
|
|
|
The series A2 digital differential pressure gage is a patent pending microprocessor based digital pressure gauge for positive, negative, and differential measurement designed to be a direct replacement for mechanical gauges. The Series A2 differential pressure gauges utilize an extremely stable piezoresistive sensing technology to give a standard full scale accuracy of 1%. For applications requiring better accuracy, the A2 is also available with 0.5% accuracy. The A2 pressure gauge also has an optional 4-20 mA output for applications requiring an output signal. The A2 features a bright ½" LED display and process arch, which gives the gauge improved readability and precision. The A2 digital differential pressure gauges also feature 5 user selectable engineering units including in. w.c., mm w.c., cm w.c., kPa, and Pa. The Series A2 offers an improved look, and performance compare to mechanical gauges.
|
|
|
|
|
|
XP2i-DP Wet Wet Differential
XP2i-DP Features:
- High accuracy, long term vacuum measurement
- 0.1% of reading wet/wet differential transducer
- 15 and 100 PSI versions rated to 100 PSI static pressures
- Transform your XP2i-DP into an indicator for Torque, Force, Level, or any other unit using the Custom Units Wizard using the free ConFigXP software
- Add special features such as Pressure Safety Valve (PSV) mode to capture valve open/close pressure
- Customizable for panel mounting or portable configurations
- ATEX / IECEx / CSA intrinsically safe
- Optional datalogging capability
- LCD backlit display
- Easy to use buttons
Applications
- Gas filter testing
- Level measurement
- Rotary gas meter testing
- Autoclave vacuum monitor / calibration
Included with every new XP2i-DP Differential Digital Pressure Gauge is an A2LA accredited calibration certificate with test data recorded at 5 different temperatures - proving that it meets published specifications over the entire operating range. You won't get this kind of detailed report anywhere else!
|
|
|
The Series S9000 Differential Pressure BoxGauge™ is designed for easy surface mounting. The BoxGauge™ will mount to any wall or vertical flat surface without any additional kits, special mounting brackets, or optional hardware. The box shape also allows the gauge to sit on any flat horizontal surface making it an ideal choice for portable differential pressure measurement. The large 3” gauge face is easy to read and gives an overall accuracy of 5%. Pressure connections can be made either on the top or back of the gauge with 3/16” flexible tubing.
|
|
with single diaphragm, DS150, static pressure max 100 bar
with bellow, DS100-150, max static pressure 25 bar
with double diaphragm, DS100-150, max static pressure 200 bar
with double diaphragm, DS100-150, max static pressure 100 bar
with double diaphragm, DS100-150, max static pressure 400 bar
with double Bourdon tube, DS100
|
|
|
The SDP1000 family of differential pressure sensors provides precise differential pressure measurement with an analog 0 to 4 voltage output. It is available in several ranges up to 3’500 Pa (14 inch water) and measures even miniscule pressure differences below 0.1 Pa (0.0004 inch water). Mounted in a rugged, chemically inert PPS housing the differential pressure sensors feature high dynamic range and long-term stability. The SDP1000 series is an ideal choice for demanding medical and HVAC systems. Superior performance and simple operation help minimize design effort.
|
|
|
With more than one million BARTON DPU-based instruments in service around the world today, Cameron's Measurement Systems division is a premier supplier of reliable and accurate chart recorders, indicators, switches and pneumatic controllers. Originally developed in the early 1920s, our differential pressure technology features a welded bellows assembly that increases accuracy while dramatically reducing the effects of wear. To facilitate quick and easy repairs all DPU based instruments are supported with pre-calibrated exchange or repaired sub-module bellows assemblies.
|
|
● Pancake Type
● Instrument Connection: female thread 1/4" to 1/2" BSP or NPT
● Process Connection: 2" to 4" flange, JIS, ANSI, DIN available
● Temperature Limited: -40~+350ºC
● Pressure Range Limited: please refer to catalogue.
● Material: Body-SS316(standard), others on request
● Membrane: SS316L(standard), options-Hastelloy C276, tantalum and others on request
|
|
Magnehelic Differential Pressure Gauges
- Model Number:2005
- Range, Inches of Water:0 to 5.0
- Minor Div.:.10
Photohelic Differential Pressure GaugesSwitch
- Model Number:3025
- Range, Inches of Water:0 to 25
- Minor Div.:.50
|
|
4503, 4906, 4901
Differential Stainless Steel pressure gauge
Differential pressures are commonly used in industrial process systems. Differential pressure gauges have two inlet ports, each connected to one of the volumes whose pressure is to be monitored. In effect, such a gauge performs the mathematical operation of subtraction through mechanical means, obviating the need for an operator or control system to watch two separate gauges and determine the difference in readings.
|
|
|
|
|
|
Miniature Differential Pressure Gauges
These miniature differential pressure gauges measure the pressure difference between two points. Acting in the place of two pressure gauges, these units allow for one simple reading on an easy-to-read scale. Popular in filtration, flow and level applications, they are a low cost alternative to bourdon tube and bellows designs. Both piston and diaphragm sensor models are available as in our standard size instruments. Their small size and low cost make them ideal for OEM use.
We offer them with bodies (and wetted parts) of aluminum. The indicator models come standard with a 1" molded plastic lens while a 2" dial is available as an option. A variety of porting options allow for any mounting configuration.
A red/green dial with a breakpoint located at 70% of full scale alerts the user of the condition of the process. This matches the setpoint of the reed switch if ordered together.
Note: Our piston sensor models are best for liquid applications as they have a slight amount of fluid migration from the high to low pressure ports. Select our diaphragm models for air or gas applications or where fluid migration cannot be tolerated.
|
|
Utilising its vast experience of providing high quality instrumentation solutions to the worldwide industry, Delta Controls has launched a comprehensive range of instrument gauges.
These guages are produced to the usual high specification and quality that process plant operators, engineering contractors and OEM customers demand and expect from Delta Controls.
By carefully selecting worldwide suppliers that produce to the high quality demanded by Delta, customers can now specify gauges to complement Delta's comprehensive range of pressure process instrumentation.
|
|
A new line of Ashcroft® differential pressure gauges brings a high-quality, cost- effective pressure instrument to the market. The new 1130 Series from Dresser Instruments uses a close-coupled magnetic rack-and-pinion design with four pole magnets to achieve superior stability.
The Ashcroft Type 1130 Series offers an exclusive, weather-resistant stainless steel case, suitable for many processes and environments. An exclusive design on the Ashcroft 1130 Series with an aluminum body, enables the user to order the unit with a field-adjustable switch or to add the switch at later date. This translates to a cost savings as this versatile and efficient unit can be re-adapted for changes in the application.
Visit our website for other Ashcroft differential pressure gauges.
|
|
Hazardous Location Differential Pressure Gauges
Hazardous location differential pressure gauges measure the pressure difference between two points. Acting in the place of two pressure gauges, these units allow for one simple reading on an easy-to-read scale. Popular in filtration, flow and level applications, they are a low cost alternative to bourdon tube and bellows designs.
These hazardous location differential pressure instruments are used in environments containing hazardous vapors, gases or particulates. The switches and electrical connections are housed in special UL, CSA, FM and ATEX approved enclosures. The cast aluminum housings have two mounting lugs, a 3/4" NPT electrical conduit port, and meet the following specifications: Class 1, Gr. B, C, & D; Class II, Gr., E, F, & G; and Class III. They also meet NEMA 3, 4X, 7, 9, & 12 specifications.
|
|
Differential Pressure Gauges with Diaphragm Models DiP1Ch / DiP1ChG / DiP2Ch / DiP2ChG
Differential pressure gauges model DiP1Ch / DiP1ChG are used for direct indication of low differential pressures (0-40 mbar or 0-16 inches water and above) at high static pressure (max. PN 40 bar (600 psi) or PN 100 bar (1500 psi)).
|
|
HVAC measurement device PascalMaxx for monitoring & control
Differential pressure instrument with membrane measurement technology for monitoring and control of differential pressures and air flows in HVAC applications. Suitable for rooms and ducts.
By the integrated switch the pressure conditions can be monitored and an alarm set in case of need. The also integrated analogue outputs (V and mA) can be used for a system control. The automatic Zero-Point calibration assures an accurate and reproducible measurement at any time and avoids any influence of the mounting position on the measurement results.
|
|
