Differential pressure sensors indicate the difference between two pressures either visually or in the form of an electric signal.
Such sensors are used in different types of industrial processes, in hydraulics and pneumatics, in water treatment, in ventilation and in the automotive realm.
Differential manometers use a flexible capsule whose movement reflects the applied pressure differential, indicated by a needle on a gauge. Other sensors use the modifications of electrical parameters induced by a moving part or an element's deformation.
Resistive and inductive sensors have a moving component. This can be a potentiometric assembly or a magnetic core sliding in a coil. Resistive sensors are robust and adapted to adverse conditions. They are very often used as the sensing elements of strain-gauge bridges.
Capacitive and piezoelectric sensors use a deformable element. Capacitive sensors are stable and linear, but more sensitive to high temperatures. Piezoelectric sensors require a charge amplifier and are sensitive to vibrations and shocks.
Measurements can be transmitted by a 0-5 V signal, a 4-20 mA signal, or via a field bus.
The measurable pressure range and tolerance limits (in bars, pascals or psi), the measuring speed, safety elements and the nature of the test environment will be important choice factors. In hydraulics, take into account the possibility of water hammer overload.
 |
 |
Differential pressure sensor Sensotec, Lebow Honeywell Sensing and Control
Honeywell manufactures a wide range of wet/wet and wet/dry differential pressure sensors. Rugged stainless steel construction with mechanical...
 |
 |
Differential pressure sensor -50 - 2 500 Pa | QBM65 series SIEMENS Building Technologies
QBM65../65.1../65.2.. – differential pressure sensors These sensors are used for acquiring the differential pressure of air or nonaggressive...
 |
 |
Differential low pressure sensor 0 - 5 mbar / 0- 1000 mbar | esi PR3202 SUCO VSE
*ACCURATE AT VERY LOW D.P * HIGH STABILITY AND REPEATABILITY * R.F.I PROTECTION * 4-20mA TWO-WIRE OUTPUT * ZERO SPAN ADJUSTMENT ON-SITE * RANGES 5mbar TO 1000mbar * 0-5VDC AND 0-10VDC OUTPUTS AVAILABLE Our Low Range air differential pressure transmitter provides an accurate solution for low pressure sensing with ranges available from 0-5mbar to 0-1000mbarDP. Incorporating the latest silicon...
 |
 |
Differential pressure sensor 0.2 - 1 bar | P10 series Yokogawa Electric Corporation
The excellent performance and ease of application of the P10 series have been proven in numerous installations in every kind of process industry throughout the world. P10 series...
 |
 |
Differential pressure sensor Series DDS SIKA
Pressure Sensors with Ceramic Element for difference pressure measurement: Pressure Sensors with Ceramic Element for difference pressure measurement Series...
 |
 |

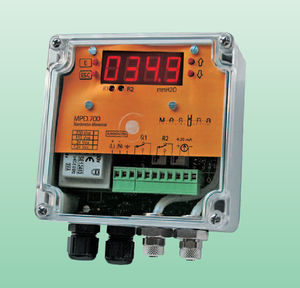

Differential pressure sensor 0 - 50 mbar | PMP KOBOLD INSTRUMENTATION
Differential Pressure Sensor for Filters Model: PMP Description The differential pressure sensor PMP Is used for controlling and measuring the differential pressure of air or non-corrosive gases. It Is mainly used for the monitoring...
 |
 |
Differential pressure sensor 0 - 50 mbar | PMP KOBOLD Messring GmbH
Differential Pressure Sensor for Filters Model: PMP Description The differential pressure sensor PMP Is used for controlling and measuring the differential pressure of air or non-corrosive gases. It Is mainly used for the monitoring...
 |
 |
Differential pressure sensor DMD 331 BD|SENSORS GmbH
The DMD 331 is a differential pressure transmitter for industrial applications and is based on a piezoresistive stainless steel sensor, which can be pressurized on both sides with fluids or gases compatible with SST 1.4404 and 1.4435. The...
 |
 |
Differential pressure sensor 0.1 - 100 KPa, IP65 | PS27 halstrup-walcher
PS 27 Basic sensor for simple applications - mounting on top-hat rails. The PS 27 differential pressure transducer is a basic sensor for simple applications with very little hysteresis, temperature dependence or zero-point drift. In addition...
 |
 |
Differential pressure sensor max. 2 bar | HD 408T / 4V8T Delta Ohm
The HD408T, HD4V8T are analog output relative or differential atmospheric pressure transmitters; they are used in all those applications where non corrosive air or gas need to be monitored, with pressure fields from 10 mbar to...
 |
 |
Differential pressure sensor 50 Pa | DS 85 Arthur Grillo GmbH
Sensor with lead diaphragm element for transmitting pressure, draught or differential pressure of non-aggressive gases. Despite its compact mounting position the sensor DS85 recorded...
 |
 |
Differential pressure sensor with analog output 0.25 - 4.0 Vdc | SDP 1000 Sensirion
The SDP1000 family of differential pressure sensors provides precise differential pressure measurement with an analog 0 to 4 voltage output. It...
 |
 |
First Sensor is a leading supplier of custom sensor solutions for highly sophisticated requirements. Together with our customers, we develop sensor solutions in the area of OPTO and MEMS within a variety of markets. First Sensor manufactures...
 |
 |

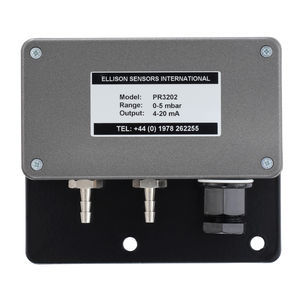

Differential low pressure sensor 0 - 5 mbar / 0- 1000 mbar | PR3202 ESI Technology Ltd
PROTRAN© PR3202 DIFFERENTIAL PRESSURE TRANSMITTER PIEZORESISTIVE SENSOR TECHNOLOGY DP PRESSURE RANGES 5mbar TO 1000mbar ULTRA LOW RANGES ON REQUEST 4-20mA TWO WIRE OUTPUT AS STANDARD (0-5Vdc, 0-10Vdc OPTIONAL) ACCURACY 0.30% NLHR OPTIONAL ATEX APPROVED VERSION (4-20mA ONLY) R.F.I. SHIELDED Housed in an RFI shielded wall mountable box for EMC protection, these transmitters combine...
 |
 |
Differential pressure sensor for silos IPE WAMGROUP S.p.A
The IPE-type Electronic Pressure Meter consists of a...
 |
 |
Differential low pressure sensor ARES series Measurement Specialties
The ARES Series is a small, low cost pressure transducer which is able to measure pressures as low as 0 to 5 inches of water, 0 to 10 inches of water, 0 to 15 inches of water, and 0 to 1 psi. Sensitivity to extremely low pressures combined with the small physical size make this device ideally suited for applications such as HVAC, medical equipment, and flow monitoring. The GA100...
 |
 |
Differential low pressure sensor Microdelta® Purolator
MICRO DELTA® differential pressure devices sense the differential pressure directly across the filter element. At a preset limit, the indicator will actuate, signalling...
 |
 |

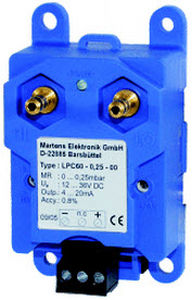

Differential low pressure sensor Martens Elektronik GmbH
Pressure-Converter LPC 60 Pressure - differential-pressure for low pressure Features For dry, non aggressive gases Measuring ranges from 0.1...
 |
 |
Differential low pressure sensor 0 - 15 psi | P365 KAVLICO Pressure Sensors
The P356 gage/differential pressure transducer is designed for pneumatic controls, filter monitoring, tank level, and leak detection applications requiring long-term stability and operational life in excess of 10 years. Available in pressure ranges of 0 – 0.5, 0 – 1, ±1,...
 |
 |
Differential low pressure sensor max. 413.7 bar | 115C BCM SENSOR TECHNOLOGIES bvba
115C differential pressure sensors (DPS) are made of two symmetric capacitors in back-to-back configuration, each of which consists of one stationary plate and a common moving plate shared by the two capacitors. With the common plate moving as a result of application of external pressures, the differential capacitance system is formed: |when the external pressures are applied to this system, one capacitor...
 |
 |
Differential pressure sensor 0 to ± 500 bar | 8300 series burster
The here presented pressure transducers measure differences in pressure between the two connections of the measuring element. Pressure differences can be measured with respect to a reference pressure, such as atmospheric, or to the...
 |
 |
Differential pressure sensor PSE/PSW Sentera Thracia
These adjustable high sensitive differential pressure sensors are used for monitoring overpressure, vacuum and differential pressure of air or other non-combustible, non-agressive gases in HVAC applications. These piezoresistive pressure transducers convert the mechanical...
 |
 |
Differential pressure sensor -40 - 204 °C, 100 - 350 psig | Vis-U-Tec BS&B SAFETY SYSTEMS, L.L.C.
Benefits Instantly Warns of a Ruptured Disk Reduces Plant Down-Time Reduces Product Loss Minimizes Environmental Pollution Re-useable - Reset the Piston Position Applications Relief Valve Isolation For Double Disk Assemblies,...
 |
 |
Differential pressure sensor for silos -25 - 80 °C | MSD MOLLET Füllstandtechnik
The MSD silo pressure detector is used for the control of overpressure in silos and bins that are filled with a pneumatic filling system. As soon...
 |
 |
Differential low pressure sensor 10 psi | Model 260 SETRA
Overview Multi-Sense Model 260 pressure transducer - One Size Fits All - Customer friendly features such as user selectable pressure ranges, selectable analog outputs, a standard LCD and AC/DC excitation...
 |
 |
Differential pressure sensor IP66 / IP67 | AST5400 American Sensor Technologies
AST5400 differential pressure transducers can measure line pressures up to 5,000 PSI (350 bar) with a turn-down ratio of 15 to 1. Using Krystal Bond Technology, the AST5400 contains no silicone oil, O-rings, or welds. This MEMS pressure sensor technology completely...
 |
 |
Differential low pressure sensor Pace Scientific
For indoor air applications including Lab/Clean Room Pressurization, Filter Differential Pressure,...
 |
 |
- Pressure: differential - Ranges from -75...+75 mbar up to -420...+420 bar - Output:...
 |
 |
Differential pressure sensor Capteurs Systemes Instrumentations
This series is specially developed for the measure of the differential pressures gas / gas where liquid / liquid. These...
 |
 |
Differential pressure transmitter DPharp EJA YOKOGAWA Europe
The EJA-A range is Yokogawa’s most successful pressure transmitter. First released in...
 |
 |
Differential pressure transmitter 1/4" | VEGADIF 65 VEGA Grieshaber KG
The differential pressure transmitter VEGADIF 65 can be used universally for the measurement of liquids, gases and vapours. Typical applications are level measurements in pressurized vessels as...
 |
 |

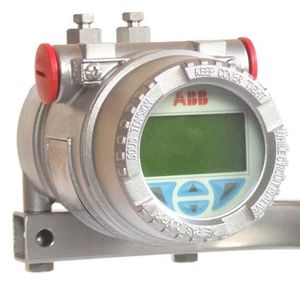

Differential pressure transmitter ABB Measurement Products
The differential pressure transmitter portfolio from ABB offers a broad variety of communication possibilities. Another highlight of our sensors is the measurement accuracy up to 0,04%. From the simplest concept to the...
 |
 |
Differential pressure transmitter with digital output TESTO
testo 6351 differential pressure measurement Parameters: Differential pressure, Flow velocity, Volume flow Selectable measuring ranges: 50 Pa to 2000 hPa Housing:...
