The Digital Output pressure sensors are based upon a proprietary surface mapping technology to produce a fully digital output that virtually eliminates all repeatable errors over temperature and pressure. This series provides a 12 bit digital serial output (14 bit in High Resolution Mode) with superior offset, span and linearity characteristics. The output is SPI and MICROWIRE/PLUS® compatible as well as fully compatible with the All Sensors GA142 Series sensors.
In addition to synchronous communications, the Digital Output pressure sensors incorporates a bi-directional, TTL level, asynchronous serial interfaces mode (hardware selectable 9,600 or 19,200 baud). This mode includes a command set that allows the host to interrogate the sensor for model information, pressure range, serial number, pressure units and conversion factor. The command set also allows the host to select a high resolution output mode, make minor adjustments to offset and has an addressable feature that allows multiple sensors to be tied to the same interface buss.
This series is intended for use with non-corrosive, non-ionic working fluids such as air, dry gases and the like. All signals are 5V TTL/CMOS compatible.
|
|
OMNI - P
The pressure meters comprise a primary sensor and the integrated evaluation electronics.
The primary sensor is available in two different technologies.
Front-flush diaphragm / ceramic cell
Range up to 400 bar
Temperature max. 120 °C
Stainless steel material
|
|
Sensortechnics is a leading manufacturer and distributor of a wide range of sensors and fluid control devices. The product portfolio includes basic pressure sensors, rugged transmitters, submersible level sensors and customised pressure sensing systems from 1 mbar up to 1000 bar as well as liquid level sensors and switches, flow, oxygen and force sensors. Additionally, Sensortechnics offers ultrasonic air bubble, air-in-line, liquid level and fluid monitoring detectors. Fluid control devices include miniature solenoid valves, diaphragm pumps and electronic pressure controllers.
Sensortechnics has more than 25 years of experience in providing highly customised sensing products and in the development of complex integrated fluid control systems for OEM customers worldwide.
|
|
|
Pressure sensors are widely used in the air pressure mechanics for precise controlling of the equipment. Autonics high accuracy digital pressure sensors are available in 2 product types with 24 different options. Their compact sizes and optimized features offer the most precise control of air pressure systems and a variety of applications and environments in the industry.
|
|
|
|
|
|
DP-100 series: High resolution pressure sensor with dual 3-colour display
Highly accurate and reliable pressure sensor with multifunction (analogue voltage output operation indicator). 'Current value' and 'threshold value' can be checked at the same time to improve ease of operation and visual checking. A clear, 12-segment display makes this easy. With the unique copy function, man-hours and human errors are reduced. Various types of applications can be realised thanks to three output modes and a wide range of modules allowing pressure from -1 to +10 bars to be measured. New: M8 connector type available.
Characteristics:
High resolution and repeatability
Low and high pressure types
Dual 3-colour display (red, green, orange); industry first
Analogue output
Current and threshold value in one view
Copy function; new global standard
Three operation modes, easy setting
Equipped with an ECO mode
Easy installation
M8 connector type
Accessories:
Connector
Connector attached cable 1, 3, 5m
Sensor mounting bracket
Panel mounting bracket
Front protection cover
|
|
|
The new SDP600/610 is the first digital, dynamic differential pressure sensor for air and non-aggressive gases. Supplying a digital I2C output, it measures with highest sensitivity and accuracy even at low differential pressures (below 10 Pa). With its exceptional integration level and clever packaging, the sensor works with superb long-term stability and is available at an economical price. The fully calibrated sensor is available in two versions. The SDP600 is intend for a direct threaded connection to a pressure manifold via O-ring sealing, while the SDP610 is designed for a hose connection. Free samples are available on www.sensirion.com/sampling
|
|
DS Europe produces low-price pressure transducers series LP660 with built-in analog and digital electronics.
Measuring ranges: 0 to 1-2-5-10-20-50-100-200-400bar FS.
Analog outputs: 4mV/V, 5V, 10V, 4-20mA.
Digital outptus: CAN Open (profile DSP406), RS485 and RS422 (DSEnet and Modbus protocols).
Advantages: ruggedness, compactness, accuracy, low price and protection against electrical noise due to the built-in electronics.
Digital electronics allow high resolution, high sampling rate, easy servicing (=overload memory), alarm levels, easy installation and noise free data transmission.
Applications: pneumatics, hydraulics, automation machines, machine tools, vehicles, hydraulic presses, plastic injection machines, marble machines, wood machines, chemical plants etc.
|
|
|
|
|
|
Digital sensors for temperature and humidity, explosion proof
Transducer-/sensor conception for temperature and/or humidity measuring in hazardous areas, composed of a transducer series ExCos-D or RedCos-D and a sensor series ExPro, in acc. with ATEX 94/9/EC for use in hazardous areas zone 1, 2, 21 and 22, for all kind of gas, mixtures, vapours and dust. 24 VAC/DC supply, ranges from -40°C ... + 125°C or 0...100 % rH, as single measurement or combination of °C and %rH. Working range adjustable, output 0...10 VDC and 4...20 mA, actual value indication, aluminium housing IP 66, integral Ex-e terminal box. ExPro sensors are available with 50 mm, 100 mm, 150 mm and 200 mm length in acc. with type and can be connected to the transducer for room or duct mounting. Series ExCos-D for use in zone 1, 2, 21, 22. Series RedCos-D for use in zone 2, 22.
The module is for installation inside the hazardous area, an interface in the safe area is not required, installation of intrinsic safe circuit is not required. This saves cost, space and guarantees safety.
|
|

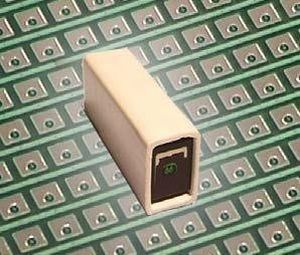

This digital, modular sensor with PMU Plug-and-Measure unit measures the relative humidity and temperature and calculates to output the values of the dew point temperature, water content, enthalpy, absolute humidity and wet bulb temperature.
|
|
|
|
|
|
This module, intended to quantify the relative humidity level and temperature in the ambient atmosphere, is made of a micro-system SPSI UPSICAP MSS Bi-Face G-TUCN.32 type that delivers a variable frequency proportional to humidity, and a resistive temperature sensor (thermistor NTC).
The micro-system making this probe, integrates a humidity cell created in-situ on the upper side of the substrate, while the lower side carries the temperature sensor, the electronic transmitter and the plug-in connector. This functional module is associated to a support with output connection. The surface electrode cell which is directly in contact with water vapor is connected to ground (0V).
It can be associated with modules H-TUTA.32 or H-UTA.32 (output 4-20 mA two wires by independant channel). The micro-system module and the substrate of the connector-supply are protected from harsh environment by full moulding, and the sensig side to humidity, can be covered with high efficient atmospheric filter to reduce electrical effects of condensation.
This technology is a major step forward in the field of sensor-transmitters with long-term stability and reduction of mass production cost.
|
|
A Capacitive Level Sensor measures level by applying a radio frequency (RF) signal between the capacitance electrode (the probe) and the electrically conductive vessel wall. The RF output creates a small amount of electrical current that flows through the medium (the dielectric) from the probe to the vessel wall. When the level increases or decreases the dielectric constant, or the capacitance reading, increases or decreases.
In other words, the level change results in a variation of the capacitance value around the probe, depending upon the degree of immersion. For point level detection, the probe's electronics detect the change in the RF signal and then alter the state of the level switch. For continuous level detection, the probe's electronics convert the RF signal into a 4-20mA-output signal that is proportional to the change of the level.
|
|
Digital Display For Flo-tech ActivaTM Sensor Arrays
Remote flow meter monitoring
Totalizing
Alarm processing
Process control
|
|
|
Universal digital indicator for pressure transmitters. Offers the possibility to process all standard signal-inputs. The RS-485-/422 interface connects the instrument to a PC for data acquisition. Four different models cover all configurations (outputs, switching contacts etc.).
|
|
As well as the standard functions - preset, alarms, RS232 output, Max, Min, Difference, etc - Solartron digital readouts and dual digital displays boast a number of new functions.
For example, the new "Scaling Factor" function can be used to compensate for angled or lever operated probes, or diameter when measured in a V block. It also enables measurement of angles or squares.
Other new functions include the "Gauging Mode" - allowing global pass/fail evaluation of up to 30 scan channels -and "Max A Max B".
Ergonomically designed for the operator, the DR700 can be used with multiple probe fixtures using either Linear Encoders, Digital Probes or a combination of both - making it a truly versatile addition to the Solartron "Orbit" range.
|
|
|
The DS-3000 Four-Channel LED Display is an integral device incorporating display, interface device and a controller combined in one. It allows users to connect up to four of our iLoad & iLoad Pro Series load cells and view individual and/or total loads in three different units: Kilograms, Pounds and Newtons.
|
|
| ... products without technical information |
| |
The CMYX combines small spot size and fast response to achieve high-speed mark detection capable of detecting standard one-track PHARMA-CODE (0.5mm thin bar width) at 2000ft/min. The CMYX is perfect for printing or packaging applications that require the ability to differentiate between background and color marks during high-speed operation. The CMYX provides the accuracy and precision for reliable process control.
High color contrast sensitivity and resolution.
High detection speed, 25-microsecond discrete output response.
Broad-spectrum white LED light source allows detection of all colors.
Calibration feature allows manual user sensitivity adjustment.
Remote teach input allows for automatic adjustment to background.
Unique numerical display indicates measured levels making process setup easy.
Circular spot allows for any orientation of sensor to marks.
|
|
New ultraviolet sensor identifies the presence of grease, glue, labels, wood, thread, rubber, paint, UV ink, UV crayon, and more. Confirm manufacturing processes more reliably than vision systems that cost ten times more. The UVX 300 luminescence sensor with patented technology is the clear choice because:
Unique numerical display lets you see the intensity of each reading. Now it's easy to refine processes and hysteresis.
3 to 6 times the range of any competing sensor. Won't get bumped or dirtied by target.
Only UV sensor with both auto-teach and manual calibration. Easy for low-skill operators, but able to be finely tuned.
Adjustable UV light projection and high resolution allow pin-head size detection.
Fast and convenient integration. In one sensor you get both analog and discrete output, auto-detect for PNP/NPN.
Smallest and fastest on the market.
|
|
| ... products without technical information |
| |
| ... products without technical information |
| |
|
These precise and reliable signal conditioners deliver peak performance from our Miniature Tilt Sensors. They are available in rugged housings for shop and laboratory work, or as standalone circuit boards for your OEM applications. Single-, dual- and multiple-channel units are available, as are a range of output options, including analog voltage, 4-20 mA and serial data output. Units with analog output are sold with fixed or switchable gain and filter settings. From our low-cost Basic Signal Conditioner to our benchtop Model 781 and rack-mount Model 786, you’ll get the most out of your tilt sensors when you use these versatile products.
|
|
|
|
|
|
BZH Measuring direction horizontal, up to 6300 N
The web tension load cells of the series BZH are of a compact pillow block design and suitable for a variety of applications.
The sensors basically consist of two mounting plates which are connected by measuring elements. The mounting plates are designed to accommodate pillow block bearings of the following manufactures: INA, FAG, SKF and NSK.
The measuring elements function according to the double beam principle. The acting forces are captured by strain gauges applied to the measuring elements.
HAEHNE offers for all its sensors a corresponding range of amplifiers to condition the measuring signal and deliver the bridge voltage supply. The signals at the output terminals of the amplifier are proportional to the acting radial force. They can be digitally displayed or used as actual values in a closed control loop.
Features
Compact load cell design
Easy modification to different pillow block bearing designs and sizes
High overload protection utilising mechanical stops
High resonant frequency
|
|
DS Europe produces load cells with built-in analog and digital electronics.
Measuring ranges:from 0 to 6Kg up to 500tons max.
Outputs: CANOpen, RS485, RS422, 5V, 10V, 4-20mA, 2mV/V.
Advantages: high resolution (A/D converter 24bit max.), high sampling rate (from 7,5 upt to 960Hz max.), electrical noise protection, compactness, digital alarms, digital filter, zeroing, easy to service (overload memory).
Applications: automation, textile machines, medical machines, machine tools, presses, vehicles, weighing, food machines, quary machines, agricolture machines, research, machines working paper-wood-plastics-rubber etc.
|
|
|
|
|
|
-Robust technology and design
-High tolerance of up to 1.000 % overload
-Plug-and-play installation
-High accuracy, High resolution
-Hermetically sealed to IP68
-Interfaces: RS485, Profibus DP, DeviceNet, 4-20 mA, 0-10 V
-Digital filters
-ATEX certified
-3 years warranty
-Patented worldwide
The shockproof digital load cell is based on a capacitive measurement principle where a non-contacting ceramic sensor is mounted inside the load cell body. As the load cell contains no moving parts and the sensor is not in contact with the load cell body, the load cell tolerates shocks, torsion, and very high overloads and sideloads. Therefore, the mechanical installation of the load cell can be done without expensive and complicated mounting kits and overload protection devices.
The electrical installation of the digital load cell is pure plug-and-play as the signal from the non-contacting sensor is directly converted, compensated and calibrated by a microprocessor to a digital load cell output in grams, kilograms, or Newton. Measurements and status codes are transmitted as RS485 data on a single wire coaxial cable (RG-58) which may be up to 100 meters long.
The technology and mechanical design of the Eilersen load cells is covered worldwide by a number of patents.
|
|
Catridge Style Load Cells
Ultra Cartridge-Style Load Cells provide a highly responsive linear output signal for measuring, monitoring and controlling web tension in continuous processes. They utilize a full-bridge semiconductor strain gages and a temperature compensation network for consistent accuracy and performance. For application flexibility and convenient machine installation, Ultra Cartridge Style Transducers are available for stationary shafts, for wire or narrow webs, and with flange and pillow block mounting kits.
|
|
Ultra ISC Tension Load Cell : Web Tension Control
The Ultra ISC is a tension transducer that directly outputs a +/- 10 VDC signal. CMC offers an ISC version for all models of our Ultra tension transducers. All Ultra ISC transducers include an Integrated Signal Conditioner (ISC) that is embedded directly in the "Ultra" type tension load cells. This is accomplished by extending the connector housing one inch and inserting a proprietary integrated amplifier designed by CMC.
|
|
The RC3D is the DIGITAL version of the very successful RC3. Flintec integrated a state of the art microprocessor system into the load cell to improve system accuracy, and load cell handling.
RC3D rocker column load cells are available in the capacities 30 t to 50 t and include Accuracy Classifications GP, C1, C3, C4 and C6 according to
OIML R60.
The digital output enables the user to communicatewith each load cell independently of the others in the system. It offers advantages in systemsetup, corner adjustment, systemcalibration, fault finding and load cell replacement.
|
|
Loadstar’s iLoad TR Digital USB Series of load cells provide unprecedented integration of sensing and measurement electronics to offer Plug and Sense simplicity with Digital Perfection for load and force measurements.
Capacitive Load Cell Technology
- Plug and Sense Simplicity
- Digital Integrated Electronics
- Standard USB output
- Power supplied via USB port
No need for external power supply
- Integrated power conditioning
- Stored calibration
- Data Output Rate
150 Hz Standard
500 Hz Optional
|
|
| ... products without technical information |
| |
|
|
