Easy Triflex® / Office Chain / Triflex®
- Can be combined for 2 and 3 axes
- Easily filled from both sides
- Fully enclosed
TwisterChain®
- Spiral chain for rotary motion up to 540º
- Modular design with variable widths
|
|
'- E4 = 4 parts per chain link
- E4/00 = standard product
- Wide application range
- Available as E-Chain® or energy tube
- Large accessories kit
E4/00 system - The standard E4 construction kit:
- noise reduction (TÜV certificate)
- Large application range
- Manifold interior separation potentials
- Large accessory kits
- Widths up to 2000 mm through extension links
- Maximum stability (in the igus® range)
- Snap-open on both sides
- Max. travel: 200 - 400 m
E4/4 system - specialties:
- Large unsupported lengths for side-mounted applications
- High torsion stability
- Rugged in rough operation
- Max. travel: 200 - 800 m
- Roller chain link available
E4/light system - specialties:
- Favorable price
- Optimized interior-exterior dimensions ratio
- Max. travel: 150 - 250 m
E4/0 system - specialties:
- Excellent for zigzag stroke applications
- Max. travel: 150 - 350 m
|
|
Numerous Innovations around System E6
E6 means that one link consists of up to 6 parts. E6 has become very popular, due to its quiet and virtually vibration-free motion, its modularity and strength. TÜV Rheinland certifies top results for noise reduction with E6.
E6 product family now comes in 5 diffrent inner heigths - 29, 52, 62, 80 and all new 40 mm.
- Low noise, low vibration
- Modular design, high stability
- Many accessories
|
|
Easy Chain® / E-Band
- Version E - filled from outside, version Z - filled from inside
- Very cost effective!
- Easy handling, simple installation
- Max. travel: 30 m Easy Chain®, 40m E-Band
- Modular band
- Application, for instance in cleanroom
Zipper Energy Chain®
- Lightning-fast opening and closing of lid through "Zipper"
- Lid on a band can be separated and joined in every place
- Max. travel: 8-50 m
|
|
System E2 micro, mini, medium / System E2/000 medium
- Series 03 micro, the smallest in the world (status 4/2002)
- Series 045, smooth running – small pitch
- Improved Series 10, B15
- Series 14 with film-hinge
- Series 11 - special dimensions
- E2 medium: the standard
- Series 255 super-smooth running
- Great range of accessories
EnergyTubes E2 Series R100 and R
- Can be used in area with chips (even hot chips)
- Series R100 low-cost
- Max. travel: 20-100 m
- Universal KMA connections
- Series R super-smooth running
- Improved Series 58, 68
|
|
Energy Chain Systems® are the umbilical cord of modern machines. They ensure supply of energy, data and pulses, and are constantly on the move. We consider it to be our task to be able to offer you all components - Energy chains®, all cables, all accessories - as a system and to ensure their function.
You can save time and money in procurement and use of Energy Chain Systems®.
In order to achieve this, we concentrate on the following aspects:
- Innovative, low-cost products which can be installed quickly
- Delivery from stock - storage cost savings
- Broad product selection - find the right solution immediately
- Fully harnessed and pre-assembled systems - cuts purchasing, warehousing and installation costs
- Fast system planning and consultation
- System guarantee for your application
|
|
Energy-efficient plastic energy chains and lines lower consumption over up to 57%
Advantages:
- Saving energy - Portmonee and environment preserves
- Smaller engine with less achievement sufficiently
- Smaller one, more favorable motor control modules sufficiently
- Smaller dimensioning of machines and plants possible
|
|
Helix Chain is rotation application cable chain for robot or rotation movement machine and it can protect the cable from outer risk by guiding and keeping the rotation track.
HX3543
HX6075
HX6087
|
|
|
As part of our continuous development programme, since 1989 Brevetti Stendalto have developed innovative cable chain for circular applications like welding or painting robots, manipulators etc. (allow rotation of over 360°). Available in 9 different models, each link has opening cross pieces to allows easy installation of cable/hoses.
|
|
|
Completely enclosed design to avoid any contact between cables and metal or wood chips, dust etc. Each link has a quickly removable cover for easy installation of the cables/hoses complete with their fittings.
|
|
A strong design with triple connecting pivot pin, allow unsupported lenght up to 6,5 m and maximise service life of chain and cables.
Available with a wide range of frame stays.
|
|
Small/medium sizes cable chains with yellow connecting pivot pin which offer high capacity in high performace applications
Available with snap open cover or closed styles.
|
|
A wide range of cable chains, arranged in 6 series, in order to cope with all the cables and pipes dynamic protection requirements.
Light, Medium, Heavy Series for standard linear applications, Protection Series where a complete closure is required, Sliding Series for strokes up to 400 m, Robot Series for rotation applications.
|
|
This series of chains are specially made to be used where the travel distance is long.The links are equipped with skids ,which allow the chain to slide on itself, made of special polymers to reduce friction and wear.
Special guide channels are available to support and to guide the chain.
|
|
Chain Material - CPS Amide/ UL94B
Temperature: -40C~+130C
Coefficient of Friction: 0.02~0.07u
(Regular Cable Chain: 0.3~0.4u)
With CPS patented band connection method, you get the quietest and best application possible. Applications range from clean room environments which require a Class 10 or lower rating, to work environments requiring low noise during operation.
Gantry Robots, Robot Carriages, Cranes, Automatic Welding Lines, Gantry Cranes, Container Spreaders etc... can all benefit from this newest of designs in transfer technology.
|
|
New Brevetti Stendalto cable chains series with small/medium sections for applications where high performance or high filling weight are not required.
Also suitable for long applications in combination with guid.
|
|
For all applications, in which you cannot use nylon chains, Brevetti Stendalto proposes the Steel Series chains.
Available with aluminium draw plates or aluminium split cross pieces created by design; these chains can be used in special applications as offshore platforms, steel plants, etc.
|
|
- Mamba -
Extruded continuous plastic profile, outside width 49 and 72 mm, for flat and round cables, travel distances up to 40 m
- Viper -
Inside heights of 20, 26, 38, 44 mm, inside widths up to 250 mm, for loads up to 10 kg/m and travel distances up to 100 m; wide range of standard models
- Cobra -
Inside heights of 38, 58, 72 mm, inside widths up to 800 mm, for loads up to 50 kg/m and travel distances up to 20 m, 500 m with rolling carriage; wide range of different configurations
- Racer -
Max. smoothness by means of hinge-free continuous sidebands; Inside heights 38, 58, 72 mm, Travel distances upt to 100 m, up to 300 m with rolling carriage
- Boa -
Inside heights of 31, 46, 72, 109 mm, inside widths up to 900 mm, for loads up to 60 kg/m and travel distances up to 200 m; wide range of options
|
|
Carrieflex drag chain systems are designed to provide reliable guidance and protection to supply lines and hoses on moving machine parts. A comprehensive range of cost effective drag chains are available at Arnold from plastic mini-energy chains, those which open on one or both sides up to large chains for offshore applications, made from special alloys.
|
|
|
|
|
|
The working environment of working area will be changed more clean and quiet. The exist drag chain can't adjust this kind of regulation with their chain body condition of friction constructions.
That why we have developped sabin chain and finally finish to prepare all sabin chain series, sabin chain CR type(cleanroom type), sabin chain N type(Normal type), sabin chain S type(sliding type), sabin chain E type(enclosed type). We can meet the future requirement of working space with sabin chain series.
We can provide longer life cycle with this sabin chain with followings also.
1. use better raw material to make drag chain more durable, stronger and never breaking condition.
2. because of no friction, no dust, there is no loosing problem at the connection part like the exist drag chain and because of this, no breaking problem happen.
Chain material : CPS-polyamide with glass fiber reinforced, UL94-HB
Low Noise : 46dB(DIN EN 61672-1)
Speed : 10 meter/second
Temperature : -30°C ~ +130°C
Application : Gantry robot, Machining center, Textile machine, Welding machine, Feeder unit, Assembly loader, Wood work machine, Fabric machine
Production range :
ITEM PITCH INNER HEIGHT
CPS015 15 10
CPS020 20 14,5
CPS030 30 19
CPS033 33 24
CPS036N 36 27
CPS050N 50 40
CPS068N 68 40
CPS077N 77 50
CPS095N 95 54
CPS120N 120 80
CPS150N 150 113
|
|
For many years overhead cranes have been powered by means of festooning systems and conductor bars. Today more modern alternatives are available like Cavotec Power Chains. Advantages are;
·Reduces cable length and weight by more than 50%
·Allows trolley speeds exceeding 200 m/min
·Allows separation of power and control cables
·Allows any combination of cables, hoses and fibre optic cables
·Low and easy maintenance
|
|
|
|
|
|

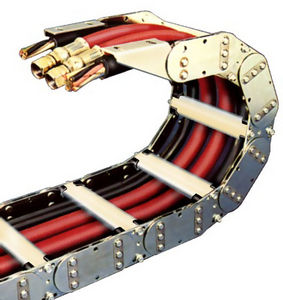

Metal cable carrier
Gortrac standard carriers are manufactured from high strength steel with zinc dichromate plating for 70% better corrosion resistance than standard zinc. Gortrac carriers are also available in various grades of stainless steel. The primary advantages of Gortrac steel carriers are:
- Unsupported Span: Metal carriers offer a longer unsupported span than similar sized plastic carriers. Costlier metal carriers often provide better value than plastic carriers by eliminating the need for support systems.
- Strength: Metal carriers are significantly stronger than similar sized plastic carriers. Gortrac offers several lightweight steel carriers that are extremely cost effective, while providing 8 x more strength than traditional, heavy duty modular plastic carriers.
- Temperature resistance: Stainless Steel carriers are ideal for applications with ambient temperatures exceeding the 392 F short term limit of glass reinforced nylon carriers.
Plastic Carriers
Although there are many factors that can be considered, the primary advantages of plastic carriers are:
- Cost: As a general rule, plastic cable/hose carriers are less expensive than similar sized metal carriers
- Weight: Plastic carriers are lighter than similar sized steel carriers
- High Velocity/Acceleration: Plastic carriers are lighter and quieter, providing smooth, reliable operation in applications with the most extreme velocity and acceleration requirements.
- Long Travels: Although metal carriers invariably offer longer unsupported spans than plastic carriers, in long travel applications where support is required, plastic carriers can offer innovative features and accessories such as guide troughs modular sliders, and MarathonT Roller Sets, that provide cost effective advantages.
- Environment: Nylatrac/Nylatube carriers are available in a wide variety of polymers for use in demanding environmental requirements, such as explosion proof, clean room, increased UL, chemical resistance, etc.
|
|
Cable Carrier
Precision Pneumatics takes all the hassle out of mounting and sizing cable carrier. Cable carrier comes pre-mounted on special brackets allowing neat and safe transfer of electronics and pneumatics to and from your attached tooling. Convenient slots on the outside surface allow pneumatic hoses and sensor wires to be added easily without any disassembly
Available On:
Dual Slides: 1" & 1-1/2" Bore
Single Action Slides: 1" & 1-1/2" Bore
Gantry Dual Slides: 1" & 1-1/2" Bore
|
|
- Solid plastic
- Single unit chain links with the option of either fixed or openable brackets
- Simple and quick assembly
- End connectors with integrated strain relief
- Almost all types available immediately ex stock all around the world
- TÜV design approved in accordance with 2PfG 1036/10.97
Inside or outside: Hinged, openable and detachable brackets
Types 0130, 0180, 0450*, 0625*
Inside/Outside: Not to be opened
Types 0132, 0182, 0202, 0320*, 0450*, 0625*
* Opening possibilities depend on the respective type.
|
|
Chain material : CPS-amide, UL94-HB
Low noise : 30dB
Low mote : CLASS2 / ISO CLASS 4
Speed : 15 meter/second
Temperature : -30°C ~ +130°C
Application :
Semiconductor production line which requests dust regulation CLASS 10, Automation machine tool or industrial machine which is needed high speed operation
Certification :
IPA dust test(VDI2083 CLASS2 / DIN EN 14644-1 ISO CLASS4)
TUV noise test(30dB - The quietest score in the world)
Production range :
sb018CR
ITEM PITCH INNER HEIGHT
sb018CR 18 15
sb020CR 20 22
sb025CR 25 28
sb035CR 35 40
sb045CR 45 50
sb060CR 60 62
sb075CR 75 80
|
|
Revolving chain can be applied for protection cables to the rotating machine or robot, designed by not bothering the motion and directivity of cable and protect the cables safely from outer dangerous factors.
Free bending radius process can control the bending radius and reverse bending radius of cable chain automatically and this new concept cable chain, maximize the mobility of bending radius, is developed by CP SYSTEM's own advanced technique and also already hae the patent for this technique.
And this is next generation cable chain which minimize the dust and noise by the unique bend connection method, can be applied to the working place which request the regulation of dust and noise.
This revolving chain can protect the cables more safely and improve the productivity very much.
Production range :
ITEM PITCH WIDTH
RV020CR 20 28
RV028CR 28 38
RV040CR 40 52
RV048CR 48 65
|
|
- For three-dimensional movements
- Open design:
* Fast cable laying by simple pressing in of the cables – no threading through is necessary
* Simple inspection of all the cables
- Can be deployed on robots for swiveling and rotational movements
- The same system for robot feet and arms
- Optimum system for long service life of the cables:
* The minimum bend radius can be maintained
* The cables are cleanly isolated in three separate chambers
- Special plastic for long service life
|
|
Chain materail : CPS-polyamide with glass fiber reinforced, UL94-HB
Low noise : 43dB(DIN EN 61672-1)
Speed : 10 meter /second
Temperature : -30°C ~ +130°C
Application : Gantry robot, Machine tool, Textile machine, Welding machine, Feeder unit, Assembly loader
Production range :
ITEM PITCH INNER HEIGHT
CPS036E 36 27
CPS050E 68 30,5
CPS070E 70 47
CPS078E 78 52
CPS090E 90 75
|
|
Gortube enclosed-style carrier systems are the benchmark for fully enclosed dynamic cable and hose protection. With the exception of optional cavity separators, they feature all-metal construction.
Gortube helically-wound extrusions have been extensively used in machine tool applications for over 30 years. They provide smooth movement, are aesthetically pleasing, offer the best protection available from hot chips and fluids, and can be delivered in a wide range of sizes.
Gortrac link-style carriers utilize standard Gortrac link designs and removable armor plate style lids to offer rugged construction, accessibility, easy repair and length modification.
|
|
TUBE SERIES

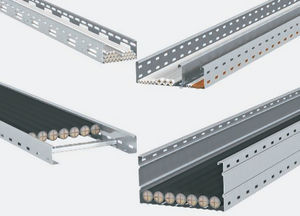

Covered Cable Carriers
* Covered cable and hose carriers with plastic or aluminium cover systems and completely enclosed carrier tubes
* For protection of the cables for applications where chips or severe contamination occur
|
|
|
|
