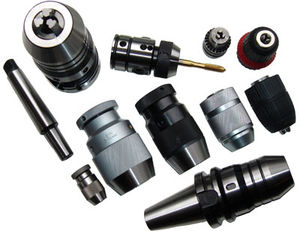

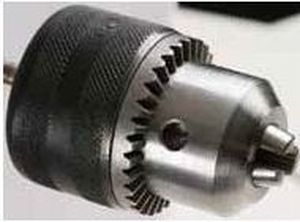

We manufacture millions of excellent quality geared and rapid-action chucks, which is only possible using the most modern manufacturing and assembly technology. As links between the machine and the clamping tool, we can offer tapered mandrels, reducing sleeves, extension sleeves, drill and reamer extensions, short clamping chucks, adjustable adapters and split taper sockets. Quick, robust and accurate, Röhm offers NC tools such as draw-in collet chucks, precision short drill chucks, hydraulic expanding chucks and the induction shrink technology for clamping HM and HSS tool shafts.
|
|

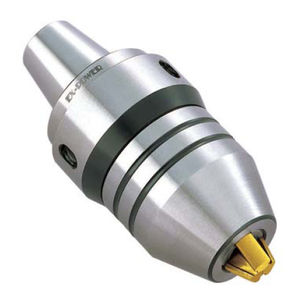

NC-Drill ChuckF
1. It is available in capacity of 1 to 13 mm / 3 to 16 mm, with BT shank (MAS 403); SK shank (DIN-69871), and HSK63 shank (DIN 69893).
2. The integral shank makes this chuck more suited to CNC machine applications because overall length is shorter than that of normal keyless drill chuck mounted with an arbor.
3. The Integral shank provides greater accuracy and eliminates the possibility of the chuck slipping on an arbor.
4. Balanced.
|
|
KOMET® Adapters
As the interface between the tool and the machine, adapters have a great influence on the result and the economy of the complete machining process. KOMET® tool adapters offer a comprehensive range for every requirement.
Your PLUS:
- Maximum tool changing accuracies
- Perfect static and high radial rigidities
- Ideal dimensions
- Low weights
- Productivity improvement
- ABS® modularity
KOMET® Adapter range:
- HSK adapters
- Steep-angle taper adapters, SK
- KOMET ABS® adapters
- Flange adapters
- VDI adapters
- Hydro-expansion clamping chucks
- KOMET KomLoc®
- THERMOGRIP® shrink-fit chucks
|
|
- HP3 drill chuck has 4 times the holding power of standart chucks.
- T.I.R. of only 0.0008"
- Balanced for high speed opertion to 10,000 RPM.
- One-piece design for additional strength and safety (chuck will not come off during operation).
- Each taper is precision ground to a tolerance of AT3 or better!
- All products are backed by our 100% satisfaction guarantee.
Advantages:
- Flexibility (allows you to run non-standard shank sizes )
- No need to buy collets and nuts
- Fast and easy tool changes
|
|
Now you can use the benefits of complete machining your workpieces on a cycle controlled lathe.

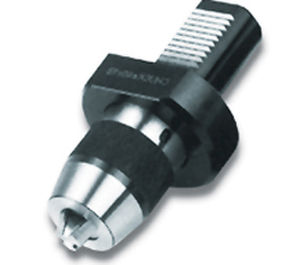

WTO has developed a flexible toolholding system fot these machines which enables using static turning toolholders and driven precision tools.
|
|
Techniks Jacobs taper type S drill chucks feature extremely high accuracy and precision design, suitable for milling CNC machines and machining centers.
All parts are precision ground, heat treated, surface treated under specific QC conditions to the highest standard.
|
|
- Selftightening feature automatically increases gripping power.
- Extremely rigid construction more superior than traditional design and prevent Drill Chucks from falling out.
|
|
SBK
Quick Change Drilling Chuck and adaptors for drilling, counterboring, reaming and tapping on drilling and special purpose machines.
: Ø2-Ø13mm,M4-M48
ASR
Stub Drill Tool System for drilling and countersinking with HSSE and HM stub drills on special purpose machines and transfer lines.
: Ø1-Ø26mm
ASBA - ASBV
Attachable Quick Change Drilling Chuck for drilling and counterboring on special purpose machines and transfer lines with spindles to DIN 55058.
: Ø12-Ø48mm
MSB
Quick Change Drilling Chuck and adaptors for drilling and counterboring on special purpose machines and transfer lines.
: Ø1-Ø9mm
|
|
