Novatec’s production includes a wide range of standard installations.
Cleaning and Drying Systems: ultrasonic cleaning and rinsing both standard and according to the customer’s specific requests. Modular surface treatment systems for immersion and/or spray treatment with single or cascading stages. Hot air dryers, infra-red and vacuum dryers, centrifugal dryers. Solvent dryers, ultrasonic degreasing machines, spray-cleaning machines. – Compact ultrasonic cleaning Tanks for laboratory or research applications.
Ultrasonics: piezoelectric and magnetostrictive ultrasonic generators, flanged or bulkhead mount submersible transducers. Available work frequencies from 18 to 100 kHz. Modular construction of the piezoelectric units allow to supply a generator also with different frequencies.
Automation: 2 or 3 axes handling systems with load capacity up to 1000 kg.
Air and Water treatment: water softeners, reverse osmosis, active carbon water filtration systems and manual or automatic water demineralising systems, ultra-filtration systems and evaporators under vacuum which allow to work environment-friendly. Extraction, filtration and air treatment systems (powders and vapours), clean rooms.
Painting: manual or automatic water veil or dry cabins, pre-drying modules and dryers.
NDT: Automatic FPI Dye-Pen, wash and developer systems.
|
|
Macofar washing machines WM 8400
The Macofar Washing machine WM 8000 series can work with up to four different fluids (pre-washing through untrasonic bath, demi-water or recycled water, distilled water or water for injection). Siliconization of the containers (vials, ampoules, ...) at the end of the cycle is also available on request.
The WM 8400/16 has a max. output of 24.000 vials per hour with a max. container diameter of 25,4 mm. The WM 8400/8 offers a max. output of 12.000 vials per hour, but a container diameter up to 52 mm.
All the water tanks can be located inside the machine frame. All pumps, filters, piping, mechanical components are located at the back of the machine, accessible through transparent guards.
The operator interface is provided by a color touch screen panel, which also facilitates storage of parameters from previous batches, such as
- machine speed
- infeed conveyor speed
- washing time
- drying time
|
|
|
The WiP Center is FETTE′s integrated system for fast and reliable supplies of water, cleaning additives and hot air for drying to the WiP machines and WiP peripheral devices. Extremely hygienic membrane valves, together with orbitally welded pipe work, achieve the maximum cleaning performance at the same time as the lowest possible water consumption. All the pressure valves are fitted with safety sensors to ensure the safety of the process.
|
|

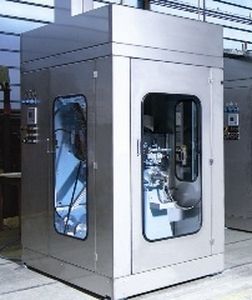

The Atlantis is a washing cabin for the washing and drying of bins, drums and pallets.
The machine is PLC/HMI operated and is fitted with one manual door with inflatable seal and a rotating platform. The AirJetStream fast drying system is included for high throughput (up to 3 bins/hour with one cabin).
MAIN CHARACTERISTICS
- Stainless steel cabin with one door (basic configuration).
-
Vertical ramp with jet blade nozzles.
- Telescopic pistons with hydrokinetic spray head and drying air duct.
- Rotating platform for the washing and drying of bins and rack.
- HydroWash I "integrated" version, LP type (Low Pressure - 6 bar, 70 l/min.
- AirJetStream with air/steam heating battery and dehumidification battery.
- IR Infra-red system available as an option.
- The highest throughput in the market: up to 3 bins/hour in one cabin.
|
|
HAMO LS-650
Automatic Washer for Cleaning and Drying
Wash chamber 500/530/530 mm (19.69/20.87/20.87 inches) (W/H/D).
The economical machine for cleaning, drying.
Validated Cleaning for Development (GLP) and Production (GMP)
The HAMO LS-650 was developed specifically for the high demands for laboratory cleaning. The machine is designed for cleaning the following parts:
* glassware
|
|
Key's Direct StreamTM Wash System is an integrated, patent pending method of washing and centrifugally drying fresh cut produce. From Key's Freshline group of products, Direct StreamTM ensures that cut products are "streamed" in a uniform and regulated manner through the wash to the centrifuge's drums.
Direct StreamTM Wash Systems offers effective log reductions of bacteria by using multistage wash systems in series.
|
|
Fully automatic load transfer systems are engineered for high throughput washing applications in situations where labor reduction is warranted or where process control is critical. Featuring the Magnus air powered articulating load transfer system; the loads are automatically transferred from stage to stage in both our rotating and non-rotating systems.
These systems can be configured with all of the stages and options available with our manual load transfer systems, and be combined with Magnus dryers or blow offs as well as other operations such as demagnetizers, inspection booths, dip coaters, etc.
|
|
1 / 6 - DRYER
An automatic fabric dryer specifically used for the treatment of parts after they have been galvanized. It uses new generation solvents which do not harm the ozone layer.
The baskets handling system is completely automatic and is managed by a PLC which is easy to program using the tactile screen.
|
|
| ... products without technical information |
| |
• Blower/air knife systems engineered and "Guaranteed" for each application
• Air knives from 2" to 198" (5 to 502 cm) long, powered by Sonic compact Blowers 3-50 Hp (2.2 - 37 kW)
• Sonic Rotary air knife and nozzle system (patent pending)
• Air Knife velocities up to 40,000 FPM (12,100 m/min)
• 75% Reduction in electrical use versus compressed air.
• Sonic Variable Temperature blowers (patent pending) deliver up to 200°F air temperatures without heaters
• Air cleanliness from 10 micron down to 0.1 (HEPA/ULPA).
• Blower & air knife enclosures.
• Quick release brackets for easy installation and product
change over.
• Products are CE Registered with IEC Motors
• Sonic is an ISO 9001:2000 Registered company
• Most Blower/Motor assemblies shipped in 5 days from receipt of order.
• Fill out the on-line questionnaire for a quote
|
|
ACI airknife drying systems from Almeco are the perfect solution for the removal of surface moisture, dust or contamination from a wide range of materials and shapes.
Efficient drying, cleaning or cooling of products transported on a conveyor belt is often difficult. Compressed air is still often used in this respect. However, of all compressed air applications, drying is the least efficient. Few people are aware that the energy consumption and cost of compressed air are considerably high.
An optimal system should guarantee good performances at a minimal cost and with a minimal impact on the environment. ACI airknife drying systems meet these conditions. ACI airknives offer a number of important advantages compared to an alternative such as compressed air:
* Optimised energy consumption
* Low maintenance costs
* Low noise levels
* Clean, oil-free and dry air
* Easy installation due to its modular construction
* Safe due to the low pressure
|
|
• Blower/air knife systems engineered and “Guaranteed” for each application.
• Air knives from 2" to 198" (5 to 502 cm) long, powered by Sonic Compact Blowers 3-50 Hp (2.2 to 37 kW).
• Sonic Rotary air knife and nozzle system (patent pending)
• Air Knife velocities up to 40,000 FPM (12,100 m/min).
• 75% Reduction in electrical use versus compressed air.
• Sonic Variable Temperature blowers (patent pending) deliver up to 200°F air temperatures without heaters
• Air cleanliness from 10 micron down to 0.1 (HEPA/ULPA).
• Blower & air knife enclosures.
• Quick release brackets for easy installation and product change over.
• Products are CE Registered with IEC motors
• Sonic is an ISO 9001:2000 Registered company
• Most Blower/Motor assemblies shipped in 5 days from receipt of order.
• Fill out the on-line questionnaire for a quote
|
|
Streamtek Air Knife systems utilize compressed air for industrial applications that include dust blow off, drying, cooling, and removing excess liquids/oils.
An air knife is effective and efficient. The uniform (laminar) sheet of air is projected along the entire length of the Air Knife to provide an air flow that covers the entire surface of the product.
System payback on compressed air savings can be in as little as a few weeks for some applications.
FEATURES
- Instant ON/OFF with no moving parts, no electricity or explosion hazard.
- Multiple air inlet ports on either the ends or back in a compact design with additional mounting holes on the back.
- Airflow amplification of up to 30:1 compared to 3:1 for drilled pipe or open tubes and jets.
SPECIFICATIONS
Stainless steel or aluminum are materials of construction. Eleven standard lengths: 3", 6", 9", 12", 18", 24", 30", 36", 42", 48", and 54".
|
|
Streamtek Air Knife systems utilize compressed air for industrial applications that include dust blow off, drying, cooling, and removing excess liquids/oils.
An air knife is effective and efficient. The uniform (laminar) sheet of air is projected along the entire length of the Air Knife to provide an air flow that covers the entire surface of the product.
System payback on compressed air savings can be in as little as a few weeks for some applications.
FEATURES
- Instant ON/OFF with no moving parts, no electricity or explosion hazard.
- Multiple air inlet ports on either the ends or back in a compact design with additional mounting holes on the back.
- Airflow amplification of up to 30:1 compared to 3:1 for drilled pipe or open tubes and jets.
SPECIFICATIONS
Stainless steel or aluminum are materials of construction. Eleven standard lengths: 3", 6", 9", 12", 18", 24", 30", 36", 42", 48", and 54".
|
|
• Blower/air knife systems engineered and “Guaranteed” for each application.
• Air knives from 2" to 198" (5 to 502 cm) long, powered by Sonic Compact Blowers 3-50 Hp (2.2 to 37 kW).
• Sonic Rotary air knife and nozzle system (patent pending)
• Air Knife velocities up to 40,000 FPM (12,100 m/min).
• 75% Reduction in electrical use versus compressed air.
• Sonic Variable Temperature blowers (patent pending) deliver up to 200°F air temperatures without heaters
• Air cleanliness from 10 micron down to 0.1 (HEPA/ULPA).
• Blower & air knife enclosures.
• Quick release brackets for easy installation and product change over.
• Products are CE Registered with IEC motors
• Sonic is an ISO 9001:2000 Registered company
• Most Blower/Motor assemblies shipped in 5 days from receipt of order.
• Fill out the on-line questionnaire for a quote.
|
|
• Blower/air knife systems engineered and “Guaranteed” for each application.
• Air knives from 2" to 198" (5 to 502 cm) long, powered by Sonic Compact Blowers 3-50 Hp (2.2 to 37 kW).
• Sonic Variable Temperature blowers (patent pending) deliver up to 200°F air temperatures without heaters
• Air Knife velocities up to 40,000 FPM (12,100 m/min).
• 75% Reduction in electrical use versus compressed air.
• Sonic Rotary air knife and nozzle system (patent pending)
• Air cleanliness from 10 micron down to 0.1 (HEPA/ULPA).
• Blower & air knife enclosures.
• Quick release brackets for easy installation and product change over.
• Products are CE Registered with IEC motors
• Sonic is an ISO 9001:2000 Registered company
• Most Blower/Motor assemblies shipped in 5 days from receipt of order.
• Fill out the on-line questionnaire for a quote
|
|
Paxton's technical design team is second to none. We will expertly design the optimum system for your needs, and will provide a quotation for a complete Air Knife system with Paxton blowers, ready for installation.
Following are some of the key factors we consider
in the design of your Air Knife system:
The Air Knife system's objective(s).
Direction of material flow and posture of the material: Horizontal / Vertical / Inclined
Product temperature.
Speed of the line.
Arrangement of product or material on conveyor, i.e., single file, rows, etc.
Dimensions of product(s) involved.
Description of surfaces, including cavities and difficult areas.
Conveyor dimensions.
Temperature limitations, and heat sensitivity of materials.
Drying requirement, and whether product is to be treated (dry, stripped, cleaned).
Types of fluids involved (wash, rinse, treatments,
coatings, acids, plating or printing).
|
|
SAVIME dryer
SAVIME dryer is designed to eliminate residual water on products, using air blades. It allows the drying of the product, before packing in cluster, boxes, shrink-wrap”.
|
|
|
|
|
|
The low cost Super Air Knife dramatically reduces
compressed air usage and noise
when compared to other blowoffs. It delivers a uniform sheet of laminar airflow with hard-hitting force across the entire length. Compressed air consumption is
1/3 that of typical blowoffs.
Type 316 Stainless Steel Super Air Knife
The Type 316SS Super Air Knife blocks the fumes from a plating operation.
Noisy blowoffs become a whisper when replaced with the compact Super Air Knife. Even at high pressures of 80 PSIG (5.5 BAR), the sound level is surprisingly quiet at 69 dBA for most applications! Air Amplificaton ratios (entrained air to compressed air) of 40:1 are produced. Meets OSHA maximum dead-ended pressure and noise requirements. Super Air Knife blows off a circuit board.
Super Air Knife blows off a
circuit board.
Meets or Exceeds OSHA RequirementsEnergy use is comparable to a blower without the costly maintenance or downtime (no moving parts to wear out). Many sizes are available in aluminum or stainless steel. Applications include blowing liquid, chips, and contaminants from parts and conveyors, cooling hot parts, and air screening.
* Surprisingly quiet - only 69 dBA at 80 PSIG
* Instant "on" or "off" with infinite velocity control
* Compressed air inlets on each end and bottom
* Special length Super Air Knives and unlimited system lengths available
|
|
An air knife is effective and efficient. The laminar (uniform) sheet of air is projected along the entire length of the air knife to provide an air flow that covers the entire surface of the product. Air Knife Systems from EXAIR have small profiles, are manufactured in various lengths and can be mounted to accommodate many industrial applications involving conveyors and webs, even in tight spaces. Whether your goal is to remove dust and contaminants, cool hot parts or blow off excess oil, water and liquids, the air knife is also energy efficient. By entraining high volumes of room air they use less compressed air and less energy than other blow off products.
EXAIR manufactures air knife systems with aluminum and also stainless steel for corrosive environments. Sizes range from 6 inches to 54 inches.
|
|
ANCILLARY EQUIPMENT FOR EXTRUSION LINES
- ADJUSTABLE AIR KNIFE DRYER -
Adjustable air knife dryer capable of adjusting in every direction for extruded strands and strips. It is used to remove water after cooling tank and to dry the extruded.
(Width mm 500, adjustable height from 900/1300 mm)
|
|
• Blower/air knife systems engineered and “Guaranteed” for each application
• Air knives from 2" to 198" (5 to 502 cm) long, powered by Sonic Compact Blowers 3-50 Hp (2.2 to 37 kW).
• Sonic Rotary air knife and nozzle system (patent pending)
• Air Knife velocities up to 40,000 FPM (12,100 m/min).
• 75% Reduction in electrical use versus compressed air.
• Sonic Variable Temperature blowers (patent pending) deliver up to 200°F air temperatures without heaters
• Air cleanliness from 10 micron down to 0.1 (HEPA/ULPA).
• Blower & air knife enclosures.
• Quick release brackets for easy installation and product change over.
• Products are CE Registered with IEC motors
• Sonic is an ISO 9001:2000 Registered company
• Most Blower/Motor assemblies shipped in 5 days from receipt of order.
• Fill out the on-line questionnaire for a quote.
|
|
WindJet Air Knife Packages, complete with knives, regenerative blowers and package accessories, can be configured to your exact specifications. We also offer WindJet (Low Flow Air Knives that use compressed air.
|
|
