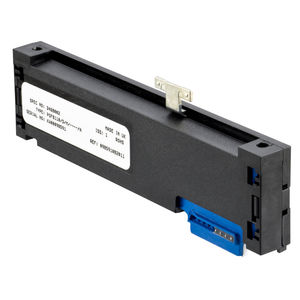

Electronic Potentiometer – type EP-Q96
The EP-Q96 is an electronic unit to replace normal motor potentiometers. It contains no moveable parts and is thus maintenance-free.
Features include
> Replace normal motor potentiometers
> Setting of integrating time (like variable gearboxes)
> Adjustment of output signal
> Offset adjustment
> Manual/auto switch
> Flush mounting
> Control of electronic speed governors
|
|
| ... products without technical information |
| |
general data actual range Sb (FSE 200C1002) 160 mm
sensing distance Tw (FUE 200C1003) 45 mm
light source pulsed red LED
light indicator LED yellow
alignment / soiled lens indicator flashing light indicator
adjustment Pot 270°
wave length 660 nm
suppression of reciprocal influence yes
electrical data response time / release time < 1 ms
voltage supply range +Vs 10 ... 30 VDC
current consumption max. 30 mA
current consumption typ. 20 mA
voltage drop Vd < 1,8 VDC
output function light / dark operate
output current < 100 mA
short circuit protection yes
reverse polarity protection yes
mechanical data width / diameter 10,4 mm
height / length 27 mm
depth 14 mm
type rectangular
housing material plastic (ASA)
ambient conditions operating temperature -25 ... +55 °C
protection class IP 40
|
|
|
|
