MARINE-APPROVED FIRE ALARM CONTROL SYTEMS
All MaviGard Marine Products are Lloyd certified.
They can be used in all sea vehicles.
Conventional System Features System Features
8, 16, 32 or 64 zone capacity
Microprocessor-controlled
Protection from electromagnetic interference
Stable sensitivity of detectors
Twin fire alarm indicators for 360° viewing
2 sounder outputs, 1 fire relay, 1 fault relay
Microprocessor-controlled switched mode power supply
Clamp terminals on detector bases to ensure firm contact
Analogue Addressable System Features
1, 2, 4 or 8 loops.
Up to 1016 x 32 address capacity.
Up to 64 programmable zones.
Microprocessor controlled design.
1000 event log memory.
Programmable and supervised sounder outputs.
Analogue value display measured by detectors.
PCBs are protected by metal case.
Protection from electromagnetic interference
Communication interrupt for fast fire alarm identification in 1.5 sec.
Loop polling in 7.5 seconds.
LCD with backlight.
Cause-effect programming.
|
|
|
When automatic 24/7 fire protection is required, select from our complete line of AUTOPULSE® detection, control and fire suppression system release panels. Detection options include smoke, heat and flame detection. Also consider our VESDA® aspirating smoke detection technology.
|
|
MG-9000 SERIES INTELLIGENT ANALOGUE ADDRESSABLE FIRE DETECTORS
VIP (Very Intelligent Protocol) compatible. EN 54, EMC-CE and SSPB (Russia) and GOST R certified. Approved by Kazakhstan, Oman, UAE and Bahrain Civil Defence authorities.
Features
EN 54-5 ve EN 54-7 certified
Twin fire alarm indicators for 360° viewing
Soft addressable by use of Address Programmer
Remote indicator output
Communication interrupt for fast fire
alarm detection in 3 sec
Stable sensitivity
PCB protected by metal case
Protection from electromagnetic interference
MG-3510 Addressable Mounting Base compatible
MG-3600 Recessed Mounting Base compatible
Microprocessor-controlled
Clamp terminals to ensure firm contact with the base
Produced by use of Surface Mount Technology
|
|
|
|
|
|
MAVIGARD MG-104 SERIES CONVENTIONAL EXTINGUISHANT CONTROL PANEL
MG-104 Series operates on cross-zone principle, has 4 detection zones and one
extinguishant release output which can be programmed according to site
needs. SSPB (Russia) and GOST R certified. Approved by Kazakhstan and Oman Civil Defence authorities.
Highlights
* 4 zones, 1 extinguishant release output
* Configurable latching/non-latching zones
* Configurable detection of short circuit as fire alarm
* Distinguished detector/MCP alarm detection
* Programmable 1st Stage sounder output delay
* Programmable extinguishant release duration
* Extinguishant release countdown timer
* Manual and Automatic/Manual extinguishant modes
* 1st and 2nd Stage relay outputs
* Solenoid valve and actuator compatible
* Remote control
* 6 programmable relay outputs
Features
Soft-touch buttons
Microprocessor-controlled
PCBs made by use of Surface Mount Technology
3 programmable and supervised sounder outputs
Compatible with all popular conventional fire detectors
Protection against electromagnetic interference
Optional repeater panels
Optional relay modules
Auxiliary power supply output
Display and LED test by use of single button
Built-in silencable buzzer
|
|
|
|
|
|
MG/MGR-2000 SERIES CONVENTIONAL FIRE DETECTORS
Designed and produced according to EN 54 by use of Surface Mount Technology
providing stable sensitivity. EN 54, EMC-CE and SSPB (Russia) and GOST R certified.Approved by Kazakhstan, Oman, UAE and Bahrain Civil Defence authorities...
Superior design and excellent functional features of the MaviGard detectors are the result of the Research & Development work done using latest technological achievements in the fire alarm industry. Detectors are produced with Surface Mount Technology (SMT). Detector PCB is protected against electromagnetic interference and corrosion by minimizing contact with external medium. MG series detectors are compatible with all fire alarm control panels,
MGR series detectors are compatible with all security alarm control panels. All detectors are provided with blue plastic cover, which protects detector from dust, dirt etc. during construction and paint. Detectors are produced in white as standard but, according to customer's choice, various colours are available. Detectors can be provided with magnet-testing feature on customer's demand.
Features
* Stable sensitivity
* Microprocessor-controlled
* MGR models with relay output
* Twin fire alarm indicators for 360°
viewing
* PCB protected by metal case
* Protection from electromagnetic
interference
* Clamps terminals to ensure firm
contact with the base
* MG-3500 Universal Mounting Base
compatible
* MG-3600 Recessed Mounting Base
compatible
* Remote indicator output
* In MGR series normally close relay
output as standard (normally openalso available)
|
|
HAREZMIC SERIES INTELLIGENT ANALOGUE ADDRESSABLE SYSTEM ACCESSORIES
VIP (Very Intelligent Protocol) compatible.SSPB (Russia) and GOST R certified.
Approved by Kazakhstan, Oman, UAE, and Bahrain Civil Defence authorities.
Microprocessor-controlled
"Sof" addressable by use of Address Programmer
Easily programable by use of Loop Manager
Able to integrate into the cause-effect scenarios.
LED-indicated activation
Monitoring analogue value
Mesuring contamination level
Aesthetic design
Production by surface-mount technology
|
|
The Insure Flow, Residential Alarmed Backflow System
Residential fire sprinkler systems are designed to save lives, but even the best systems won't work with closed backflow valves.
General Air Products has developed the Insure Flow, a new and innovative solution to the potentially devastating problem caused by an unsupervised closure of a backflow control valve.
Every unit is pre-assembled for fast installation and alarmed for valve closure and system flow.
|
|
HCP-1008E, 8-Zone Expandable Fire Alarm Control Panel
STANDARD FEATURES
8 Class B (Style B) Initiating Circuits which may be configured as 4 Class A (Style D) Circuits. Expandable up to 24 Class B or 12 Class A Initiating Circuits.
4 Class A/B (Style Z/Y) Indicating Circuits with individual trouble indicators (1.7 Amps max. per circuit)
Each Indicating Circuit can be configured as Silenceable or Non-Silenceable. Audible may be configured as Steady, Temporal Code, California Code or March Time.
Each Initiating Circuit can be configured as Alarm, Supervisory, Waterflow or Trouble
Two outputs for 4 wire resetable smoke power supply (200 mA max. each)
Alarm verification on Initiating Circuits
Easy configuration via push buttons and SLIDE switches on the front panel
|
|
|
Selecting the right industrial fire alarm signal involves more than calculating decibel levels or choosing one light source over another . It involves ensuring that a signal can operate properly and effectively in the environment in which it will be used.
|
|
|
|
|
|
FN-LCD-N (9th Edition), LCD Network Annunciator,
STANDARD FEATURES
Dual RS-485 ports for primary fire network
RS485 slave bus for expansion - up to 32 FN-4127-IO boards or up to 15 FN-LCD-S serial annunciators and up to 16 FN-4127-IO boards
2 built-in RS-232 interfaces for programming via a PC and serial printer interface
4 on board programmable Form C relays rated at 1 Amp at 30VDC (Fire, Supervisory, Trouble & Auxiliary)
Same controls as the FireNET fire panel (Reset, Panel Sounder Silence, Lamp Test, Alarm Silence, Re-sound Alarm, Fire Drill, Programmable Function, More Events, More Fire Events, Enter & Exit)
Local piezo sounder for event notification
Supports user codes & firefighter key to enable access & controls
Powered by FireNET Aux 24VDC or UL fire listed Aux. 24VDC supply
Available in red or charcoal, and can be surface or flush mounted (using trim ring)
True network annunciator, any or all panels can be routed to the FN-LCD-N. In addition, each event category can be individually routed to the FN-LCD-N
Up to 64 FireNET panels & FN-LCD-N's can be networked together in any combination
500mA of auxiliary power available rated at 24VDC
Auto-learn feature
Built-in help & alarm information screens
Fire Drill function
Each FN-LCD-N is completely independent
Supports up to 32 FN-4127-IO boards on RS485 expansion port
The FN-LCD-N can be configured to remote reset, silence, resound, any or all panels on the network in any combination
|
|

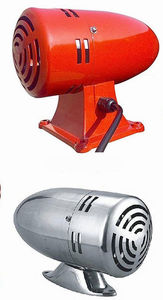

TS 85 R siren autoprotetta, autoalimentata, for outside. Flash built-in HALOGEN. Double container in steel, treaty with cataphoresis, color red.
TECHNICAL CHARACTERISTICS
Feeding: 24 Vcc.
Absorption in quiet 3 but, alarm 1,8 To.
Vain battery: n. 2 from 1,2 Ah 12 V, connected in series.
Dimensions 280x235x95 milimeter
|
|
|
|
|
|

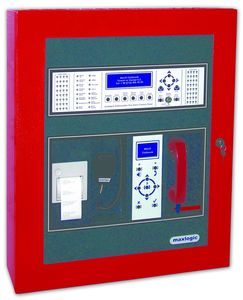

MAXLOGIC MG-16160 INTELLIGENT ANALOGUE ADDRESSABLE FIRE ALARM CONTROL PANELS
The latest Maxlogic Analogue Addressable Fire Alarm Control Panel operates on
unique VIP communication protocol which is combatible to use with all MaviGard
Harezmic products. An easy way to use in large sites up to 16 loops and 2032
addresses.
FEATURES
EN54-2 and EN54-4
Compatible with MaviGard Harezmic Series addressable devices.
Up to 64 panels and/or repeater panels can be assembled into a network
LCD (240 x 64 characters) with blue backlight
1000 event log memory
1000 user-defined zones
Extendable loops up to 16 loops, max. 2032 address capasity
Detailed fire alarm and fault warnings
Top priority of fire alarm indication,
different buttons for fire and other events,
caterogical classification due to events.
Real time clock
Communication interrupt for fast fire alarm detection in 1.5 sec
Loop polling in 7.5 sec
4 programmable supervised remote control inputs
Models with printer available
Protection from electromagnetic interference
Communiation with RS232/RS485,GPRS/TCP-IP
Microprocessor-controlled design
Supervised peripheral devices, extension cards (power supply, loop extensions,
printer...)
Day and Night mode, pre-alarm, contamination warning
Virtual panel, supervisor applications
Input/output modules can be connected to panel directly
Advanced control/monitoring features
Creating cause-effect scenarios due to device or zones
By the help of Boot Loader software
updating software on the site
Event selection for input/output devices
Advanced parametric arrangement options for input/output devices
Creating user-defined event type
|
|
CONVENTIONAL FIRE ALARM CONTROL PANELS
MODELS:
MP-8 Series
MG-8 Series
MS-64 Series
SD64+ Series
FEATURES:
Highlights
2, 4, 8, 16, 32, 64 zone models(differs due to panel models)
Zonal Fire and Fault LED indicators
Button control key
Zone Test and Zone Disable modes
Zone location text on front panel
Soft-touch buttons
Microprocessor-controlled
PCBs made by use of Surface Mount
Technology
Supervised Sounder outputs
Supervised Relay outputs
Compatible with all popular conventional fire detectors
Protection against electromagnetic interference
Optional repeater panels
Optional relay modules
Auxiliary power supply output
LED test by use of single button
For more information email us
|
|
HAREZMIC MG-7100 SINGLE LOOP INTELLIGENT ANALOGUE ADDRESSABLE
FIRE ALARM CONTROL PANEL
Single loop structure, stylish exterior design and enhanced programmability make the MG-7100 an economical and technologically top-level solution for small and medium sites. EN 54 and SSPB (Russia) and GOST R certified. Approved by Kazakhstan, Oman, UAE, and Bahrain Civil Defence authorities.
Features
Very Intelligent Communication Protocol
Display priority to fire events
Polling interrupt for fast alarm detection
64 x 240 pixel LCD with adjustable blue backlight
Password-protected access levels
Printer output
Displaying detector measurements
Real-time clock
1000 event log memory
Microprocessor-controlled
PCBs made by use of Surface Mount Technology
2 programmable and supervised sounder outputs
3 programmable relay outputs
16 user-defined zones
Loop polling in 7.5 sec
Protection against electromagnetic interference
Auxiliary power supply output
Soft-touch buttons
Built-in silenceable buzzer
|
|
|
|
|
|
FireNET (9th Edition)
Analog Addressable Fire Alarm Control Panel
STANDARD FEATURES
UL 864 9th edition approved
Analog design using Hochiki's advanced DCP protocol for fast and robust communication
Up to 127 sensors & modules, plus 127 analog sounder bases, for a total of 254 points possible per loop
Uses standard wire, no shielded or twisted pair required on SLC loops
Supports Class B (style 4) and Class A (style 6 or 7) SLC loops
4 on board Class B (style Y) NAC circuits rated at 2.5 Amp each
Programmable sensitivity levels per device & automatic day/night sensitivity modes
Automatic daily calibration & drift compensation routine
Large 8-line x 40-character LCD display (320 char.)
2 or 4 loop versions (800 addresses/sub-addr. max.)
Dual RS-485 bus for panel network
2 built-in RS-232 interfaces for programming via a PC and serial printer interface
5 on board programmable Form C relays rated at 1 amp at 30VDC (Fire1, Fire2, trouble, supervisory, aux.)
500mA of auxiliary power available rated at 24 VDC
Loop Explorer Windows® configuration utility
*500 network wide software zones
Network Capability of up to 64 panels
RS485 slave bus for expansion - up to 32 FN-4127-IO boards or up to 15 FN-LCD-S serial annunciators and up to 16 FN-4127-IO boards
Auto-learn feature
Built in help and alarm information screens
Fire Drill test function
Walk Test function
Alarm Verification feature
FireNET is UL listed for Central Station Service when used with the Bosch D9068 contact dialer
Powerful & versatile Cause & Effect programming (up to 500 maximum, network wide) including: *Cause & Effect action, *Disable function configuration, *Test mode configuration
|
|
| ... products without technical information |
| |
|
|
|
|
MAXLOGIC MG-16160 INTELLIGENT ANALOGUE ADDRESSABLE FIRE ALARM CONTROL PANELS
The latest Maxlogic Analogue Addressable Fire Alarm Control Panel operates on
unique VIP communication protocol which is combatible to use with all MaviGard
Harezmic products. An easy way to use in large sites up to 16 loops and 2032
addresses.
FEATURES
EN54-2 and EN54-4
Compatible with MaviGard Harezmic Series addressable devices.
Up to 64 panels and/or repeater panels can be assembled into a network
LCD (240 x 64 characters) with blue backlight
1000 event log memory
1000 user-defined zones
Extendable loops up to 16 loops, max. 2032 address capasity
Detailed fire alarm and fault warnings
Top priority of fire alarm indication,
different buttons for fire and other events,
caterogical classification due to events.
Real time clock
Communication interrupt for fast fire alarm detection in 1.5 sec
Loop polling in 7.5 sec
4 programmable supervised remote control inputs
Models with printer available
Protection from electromagnetic interference
Communiation with RS232/RS485,GPRS/TCP-IP
Microprocessor-controlled design
Supervised peripheral devices, extension cards (power supply, loop extensions,
printer...)
Day and Night mode, pre-alarm, contamination warning
Virtual panel, supervisor applications
Input/output modules can be connected to panel directly
Advanced control/monitoring features
Creating cause-effect scenarios due to device or zones
By the help of Boot Loader software
updating software on the site
Event selection for input/output devices
Advanced parametric arrangement options for input/output devices
Creating user-defined event type
|
|
CONVENTIONAL FIRE ALARM CONTROL PANELS
MODELS:
MP-8 Series
MG-8 Series
MS-64 Series
SD64+ Series
FEATURES:
Highlights
2, 4, 8, 16, 32, 64 zone models(differs due to panel models)
Zonal Fire and Fault LED indicators
Button control key
Zone Test and Zone Disable modes
Zone location text on front panel
Soft-touch buttons
Microprocessor-controlled
PCBs made by use of Surface Mount
Technology
Supervised Sounder outputs
Supervised Relay outputs
Compatible with all popular conventional fire detectors
Protection against electromagnetic interference
Optional repeater panels
Optional relay modules
Auxiliary power supply output
LED test by use of single button
For more information email us
|
|
HAREZMIC MG-7100 SINGLE LOOP INTELLIGENT ANALOGUE ADDRESSABLE
FIRE ALARM CONTROL PANEL
Single loop structure, stylish exterior design and enhanced programmability make the MG-7100 an economical and technologically top-level solution for small and medium sites. EN 54 and SSPB (Russia) and GOST R certified. Approved by Kazakhstan, Oman, UAE, and Bahrain Civil Defence authorities.
Features
Very Intelligent Communication Protocol
Display priority to fire events
Polling interrupt for fast alarm detection
64 x 240 pixel LCD with adjustable blue backlight
Password-protected access levels
Printer output
Displaying detector measurements
Real-time clock
1000 event log memory
Microprocessor-controlled
PCBs made by use of Surface Mount Technology
2 programmable and supervised sounder outputs
3 programmable relay outputs
16 user-defined zones
Loop polling in 7.5 sec
Protection against electromagnetic interference
Auxiliary power supply output
Soft-touch buttons
Built-in silenceable buzzer
|
|
|
|
|
|
FireNET (9th Edition)
Analog Addressable Fire Alarm Control Panel
STANDARD FEATURES
UL 864 9th edition approved
Analog design using Hochiki's advanced DCP protocol for fast and robust communication
Up to 127 sensors & modules, plus 127 analog sounder bases, for a total of 254 points possible per loop
Uses standard wire, no shielded or twisted pair required on SLC loops
Supports Class B (style 4) and Class A (style 6 or 7) SLC loops
4 on board Class B (style Y) NAC circuits rated at 2.5 Amp each
Programmable sensitivity levels per device & automatic day/night sensitivity modes
Automatic daily calibration & drift compensation routine
Large 8-line x 40-character LCD display (320 char.)
2 or 4 loop versions (800 addresses/sub-addr. max.)
Dual RS-485 bus for panel network
2 built-in RS-232 interfaces for programming via a PC and serial printer interface
5 on board programmable Form C relays rated at 1 amp at 30VDC (Fire1, Fire2, trouble, supervisory, aux.)
500mA of auxiliary power available rated at 24 VDC
Loop Explorer Windows® configuration utility
*500 network wide software zones
Network Capability of up to 64 panels
RS485 slave bus for expansion - up to 32 FN-4127-IO boards or up to 15 FN-LCD-S serial annunciators and up to 16 FN-4127-IO boards
Auto-learn feature
Built in help and alarm information screens
Fire Drill test function
Walk Test function
Alarm Verification feature
FireNET is UL listed for Central Station Service when used with the Bosch D9068 contact dialer
Powerful & versatile Cause & Effect programming (up to 500 maximum, network wide) including: *Cause & Effect action, *Disable function configuration, *Test mode configuration
|
|
| ... products without technical information |
| |
|
|
