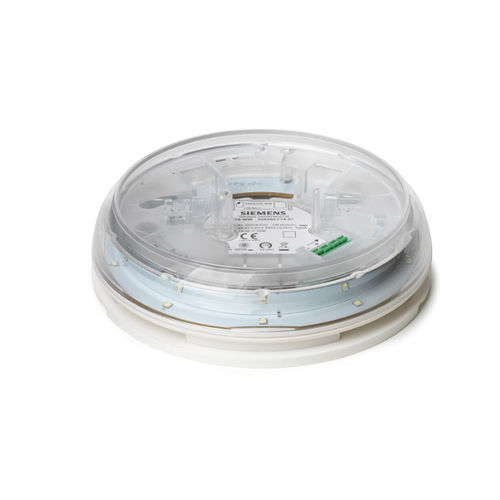

Voice sounder with LED beacon FDSB227-WW-C

sound

Product Description
The device provides alarm signalling in an addressed fire detection system and triggers both an acoustic and an optical alarm with a voice message in the event of a fire alarm. It is intended for ceiling mounting, e.g. in hotel rooms, along escape routes, corridors, staircases and offices. Sound level, tones, luminous intensity and voice messages are adjustable and devices operate synchronously. 15 languages are integrated; two additional customer-specific languages and two tones can be added. Each voice message can be output in two consecutive languages. Supply and communication via FDnet/C-NET; no auxiliary power required. The device automatically monitors its beacon and acoustic functions. The base must be ordered separately.

Identifiers

• Product No.: FDSB227-WW-C
• Stock No.: S54364-F16-A2
• GTIN Number: 4047625019525

Documents (available on product page)

• Datasheet: Sounder beacon base (voice)
• LPCB Certificate - FDS226, FDS227, FDSB226, FDSB227
• Certificate of constancy of performance - FDSB227
• VdS Certificate - FDSB227
• UKCA Certificate of constancy of performance - FDSB227-WW
• RCM Declaration - Cerberus
• EC Declaration - FDSB227
• Declarations of Performance - FDSB227
• UKCA Conformity Declaration - FDSB227
• Environmental Product Declaration - FDSB226, FDSB227
• EPD Type II with LCA - Sinteso™ / Cerberus™ - Sounder beacons (voice)
• Mounting instruction: Signalsockel (akustisch, optisch, Sprache)

Technical specifications

• Standard: EN 54-3, EN 54-23, EN 54-17
• Protection category: IP21C; IP21C with base deep
• Operating voltage: DC 16…33 V
• Operating temperature: -25…70 °C
• Operating current: 5…30 mA (tone/voice and beacon activated)
• Number of sounds: 16 + 2
• Storage temperature: -30…+75 °C
• Quiescent current: 400 μA
• Relative humidity: ≤95 % rel.
• Sound intensity: 70…93 dB (A)
• Light intensity: High = O-4-15; Medium = C-3-12; Low = O-2.5-6.5; Indicator
• Cable capacity: 0.2…2.5 mm²
• Communication protocol: FDnet/C-NET
• System compatibility: FDnet -> FS20 (MP7); C-NET -> FS720 (IP7)
• Dimensions (Ø x H): 144 x 40 mm
• Color: Pure white, ~RAL 9010
• Number of addresses: 1
