Pneumatic damper actuator GAP191.1E

rotaryIP54

Product description

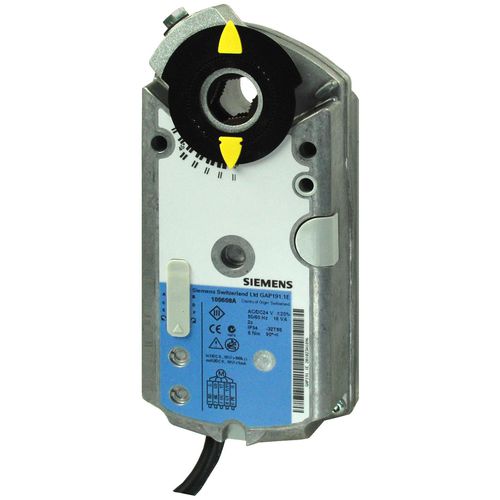

• Fast rotary actuator for air dampers with 90° travel, nominal torque 6 Nm and positioning time 2 s
• Self‑centering shaft adapter for shaft dia. 6.4...20.5 mm / square 6.4...13 mm, min. shaft length 20 mm
• Position indication, adjustable mechanical limit stop and manual override (gear disengage) button
• Robust die‑cast aluminium housing, IP54 and 0.9 m connecting cable; suitable for interior, weather‑protected mounting

Identifiers
Product No.: GAP191.1E
Stock No.: BPZ:GAP191.1E
Warranty: 60 Months
GTIN Number: 7612914074867

Documents (selected)

• Datasheet: Fast running actuators for air dampers GAP19..
• EN14175-6 Certificate HLBHA00200 - Damper
• EN14175-6 Certificate HLBHA00250 - Damper
• RCM Supplier's Declaration GAP…
• CE Declaration GAP...
• UKCA Declaration of Conformity GAP..
• Damper Actuator Laboratory (Environmental Declarations)
• EPD Type II with LCA - OpenAir™ - Electromotoric Rotary Damper Actuators
• Mounting instructions: Rotary-type actuator GAP..1E, GNP..1E

Accessories (selection)

• ASK75.3 — Protection accessories for rotary/linear damper actuators (dust and splash protection)
• ASC77.1E — End stop mounting kit for damper actuators GCA, GBB, GIB, GMA and GEB
• ASC77.2E — Double end stop mounting kit for damper actuators GCA, GBB, GIB, GMA and GEB

Characteristics / technical specifications

• Torque: 6 Nm
• Air damper area: 1 m²
• Angular rotation: 90°
• Power consumption: 30 VA, 22 W; Quiet power: 5 W
• Positioning time: 2 s
• Cable length: 0.9 m
• Positioning signal / control: DC 0(2)...10 V, 0(4)...20 mA
• Degree of protection: IP54
• Ambient temperature (operation): -32…50 °C
• Medium temperature: -32…50 °C
• Ambient humidity (operation): 95 % r.h.
• Dimensions (W x H x D): 81 x 192 x 63 mm
• Operating voltage: AC/DC 24 V
• Fuse: 6 A
• Position feedback: DC 0…10 V
• Auxiliary switch: 0
• Number of full cycles: 60000
• Rated impulse voltage: 800 V
• Type of action: Type 1
• Pollution degree: 3
• Mounting location: interior, weather-protected
