Start with features found in more expensive boards. The CX family of video frame grabbers are precision image capture boards in the ISA bus configuration. Each board has a digital synchronization scheme which delivers a rock solid image and an industry leading sampling jitter of just +/-3 ns for detecting image details at the sub-pixel level. Video noise is 0.7 least significant bit (LSB) out of 256 gray levels to meet the most demanding applications.
The CX family provides real time capture to true dual port video RAM mapped into the computer's memory. This allows fast, nondestructive, random access to a captured image even during capture and display.
Composite display output is available for viewing live video or a captured image on an external monochrome monitor. Text and graphics can be displayed on top of a live video or captured image with the optional overlay RAM, which provides 15 selectable gray levels. |
|

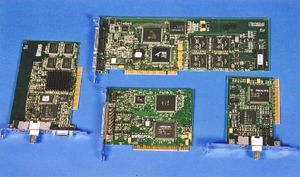

PXC Frame Grabber Family
The Imagenation PXC provides high-accuracy and low-pixel jitter for color and monochrome frame grabber processing. Complete with features normally only found in more expensive boards, the PXC is an easy-to-integrate value for industrial and commercial applications.
Specifications:
- Bus PCI bus master design for real-time image capture
- Input video format NTSC, PAL, SECAM, S-video
- Input video 1 V peak to peak, 75 ohms
- Output formats Color: YcrCb 4:2:2 and 4:1:1; RGB 32, 24, 16, 15; Monochrome: Y8
- Resolution NTSC: 640 x 480; PAL/SECAM: 768 x 576
- Power + 5 VDC, 500 mA
- Camera Power + 12 VDC output
- Supported Operating systems Win 95 / 98 / ME, Win NT / 2000 / XP
- Supported Languages C / C++, C#, Visual Basic and Visual Basic .NET |
|
PXR Frame Grabber Family
The Imagenation PXR, a precision monochrome analog frame grabber can be used with progressive scan or resettable cameras for guaranteed grabs.
Specifications:
- Bus PCI bus master design for real-time image capture
- Input composite video format Monochrome, RS-170 (NTSC), CCIR (PAL), interlace, progressive scan and resettable
- Input video Software selectable termination (75 ohms or 10K ohms)
- Resolution RS-170: 640 x 480 pixels (maximum 768 x 486 pixels); CCIR: 768 x 576 pixels; 256 gray level, 8 bit
- Power + 5 VDC, PCI, 700 mA
- Camera power + 12V at 1A for four cameras
- Supported operating systems Win 98, 98-SE, 2000, ME, NT4, XP
- Supported languages C/C++, C#, Visual Basic and Visual Basic .NET |
|
PXD Frame Grabber Family
The Imagenation PXD digital frame grabber offers data rates high enough for the most demanding video capture applications. Compatible with single, dual or four channel cameras, the PXD comes with a camera configuration application that makes it one of the easiest machine vision components to set up and use.
Specifications:
- Input signal RS422 (up to 30 MHz per channel); EIA-644 (LVDS) (up to 40 MHz per channel)
- Camera output Single channel: up to 32 bits/pixel and pixel rates to 40M pixels/sec for EIA-644 (LVDS) signals; Dual channel: up to 16 bits/pixel and up to 80M pixel/sec rates; Four channel camera at 8 bits/pixel and up to 160M pixels/sec rates
- Camera connector Single connector has 100 pins
- Camera power + 12V out at 800 mA and + 5V at 800 mA, available on user connector and camera connector
- Supported Operating systems Win 98, ME, NT, 2000, XP
- Supported Languages C / C++, C#, Visual Basic and Visual Basic .NET |
|
FrameLink-JFLEX is the world's only digital Camera Link TM frame grabber for the Kontron JREX-PM single board computer. This high performance, plug-and-play, JFLEX compliant daughtercard provides a convenient interface to two Camera Link TM digital mega-pixel cameras.
FRAMELINK-JFLEX:
- Built for Kontron JREX-PM SBC
- On-board memory for fast image acquisition
- Base Camera Link compliant ( FrameLink )
- Intelligent DMA engine, 256 Mbits of onboard memory, two banks.
- 2 Channels
- Base Camera Link interface up to 66 MHz.
- 1x8, 2x8, 1x10, 2x10, 1x12, 2x12, 1x16, 24-bit RGB
- RS232 Serial interface, 4 LVDS control signals (CC1 to CC4).
- Windows 2000 and Windows XP
- WDM, DirectX and Labview
- SDK available |
|
Model DVC-3132
4-Channel Video in/Audio in MPEG-4 Hardware CODEC Video Capture Card
DVC-3132 os a video capture card gargeting at high end security and surveilliance market. It uses MPEG4 hardware CODEC chipset to enable video encoding and decoding.It supports commpression mode from MPEG 1/2/4,H.263 and MJPEG. No matter recording or playback, DVC-3132 allows for real-time displaying of each channel, 360 x 240 4 channels total 120 fps.Its superior performance also manifested in its high resolution of 720 x 480 (576PAL) full D1 quality.
Model DVC-3111
4/8/16 Channel Digital Video Capture Card
Up to 16 channel video input
Cost effective video capture card
Supports multiple resolutions of 640 x 480, 640 x 240, 320 x 240, and 320 x 120
With Low profile bracket, has dimension of 170 x 55 mm to fit into 2U vertically
Provides customer with a unique encryption code to protect their software IP copyright using CPLD
Hardware Watchdog Timer
Model DVC-5215
8-Channel PCI-Express Digital Video Capture Card
PCI Express x 1 Interface
8 video and 8 audio in
Up to 8 channel in real-time
Spectacular cooling design
Supports multiple resolutions of 640 x 480,640 x 240, 320 x 240, and 320 x 120
Provides customer with a unique encryption code to protect their software IP copyright using CPLD
|
|
| The Fast-XL Frame grabber is for OEMs and End Users who anticipate a demand for extreme I/O requirements or higher band width for FastVision's FastCamera 13 and FastCamera 40 series CMOS cameras in a cost effective platform. The Fast-XL, see below, is a AT length PCI board with 80 bit Camera Link Channels which provides input for the newest high speed cameras. Finally the Fast -XL interfaces to the host computer through a PCI interface for state-of-the-art data acquisition. |
|
With Imperx PCMCIA frame grabbers, applications and uses of portable and mobile vision systems are becoming a reality. The FrameLink supports digital interfaces, and provides the functionality, performance and versatility required by today's most demanding vision systems. The cards feature plug-n-play operation with hot insertion/removal and include intelligent scatter/gather DMA engines with a generous supply of on-board memory. A full software suite including drivers, SDK and application is provided.
FrameLink:
- PCMCIA Cardbus Interface
- Small form factor PCMCIA Type II
- On-board memory for fast image acquisition
- Base Camera Link compliant up to 66 Mhz
- Intelligent DMA engine, 256 Mbits of onboard memory, two banks.
- Plug-and-play, hot insertion and removal.
- 1x8, 2x8, 1x10, 2x10, 1x12, 2x12, 1x16, 24-bit RGB
- RS232 Serial interface, 4 LVDS control signals (CC1 to CC4).
- Windows 2000 and Windows XP
- WDM, DirectX, Labview
- SDK available |
|

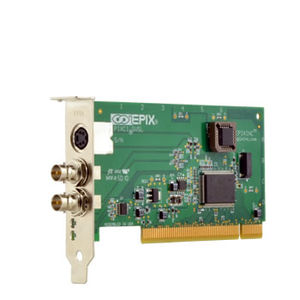

| The PIXCI® SV5 is a video-rate frame grabber that captures high quality, uncompressed, scientific quality digital images from standard analog output video sources. The PIXCI SV5 frame grabber digitizes analog video from NTSC, RS-170, PAL, or CCIR format sources such as cameras, camcorders, VCRs, and ultrasound imaging systems. Color (NTSC, PAL) and monochrome (RS-170, CCIR) video formats are supported. Capture images with 754 by 480 resolution from any NTSC, NTSC/S-Video, or RS-170 video source. Capture images with 922 by 580 resolution from any PAL, PAL/S-Video, or CCIR video source. Analog image data is digitized and transferred to motherboard memory with less than one horizontal line time delay. As a PCI bus DMA master, the PIXCI SV5 frame grabber burst transfers image data without using the host computer's processor. Live video display is provided with software that transfers the image from motherboard memory to a graphics card or subsystem. Live, 30 frame per second (fps) display, is available when capturing from any NTSC, NTSC/S-Video, or RS-170 video source. Live, 25 fps display, is available when capturing from any PAL, PAL/S-Video, or CCIR video source. |
|
PCI Express x4 Frame Grabber For High Bandwidth Camera Link Cameras
The PIXCI® E4 is a plug-n-play frame grabber. Load the software, connect the camera, and begin to capture images. In addition to supporting high bandwidth cameras, the PIXCI E4 supports more than 100 Full, Medium, and Base configuration Camera Link cameras with lower bandwidth requirements.
High Bandwidth Camera Link Frame Grabber
PCI Express x4 Bus
1 Gbyte/sec Burst Transfer
Up to 700 Mbyte/sec Sustained Data Transfer
Line Scan or Area Scan
Camera Frame Rate Sequence Capture
Triggered Image Sequence Capture
64-Bit Memory Addressing
Camera Integration & Async Reset Control
Integration From Microseconds to Minutes
Images Stored in Motherboard Memory or RAID Array
Compatible with 32 / 64-bit Windows & Linux
RoHS Compliant |
|
The PIXCI D3X is a PCI-compatible imaging board supporting camera configurations with 3 to 8 data channels, or with 30 to 64 total data bits - cameras that are beyond the interfacing capacity of the PIXCI D2X.
ONE PIXCI D3X BOARD ON ONE BUS - interfaces to a maximum of 32 bits or 4 data channels to a maximum sustained data transfer rate of 100 MB/sec
Features:
Single or Dual Board Configurations
Line Scan or Area Scan
Three To Eight Data Channels
30 to 64 Bit Camera Data
Asynchronous Capture Control
Differential Trigger In / Strobe Out
Camera Integration and Reset Control
32 bit PCI Bus Master
132 MB/s Burst Transfers
Compatible with 32-Bit and 64-Bit PCI Buses
Video Rate Image Sequence Transfer to Motherboard Memory |
|
